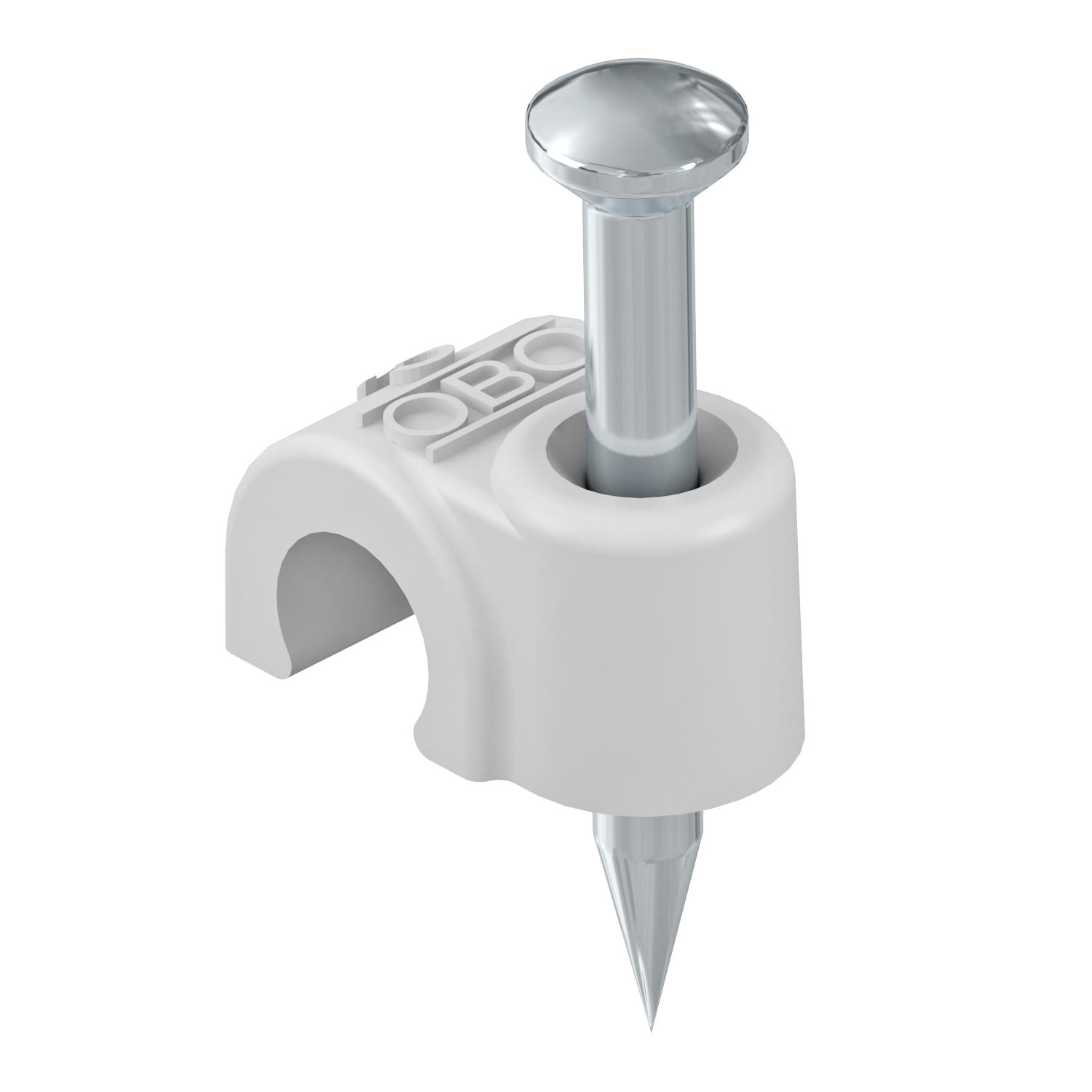

ISO nail clip 2008, light grey

Item no. 2227614 | EAN 4012195217930

8 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

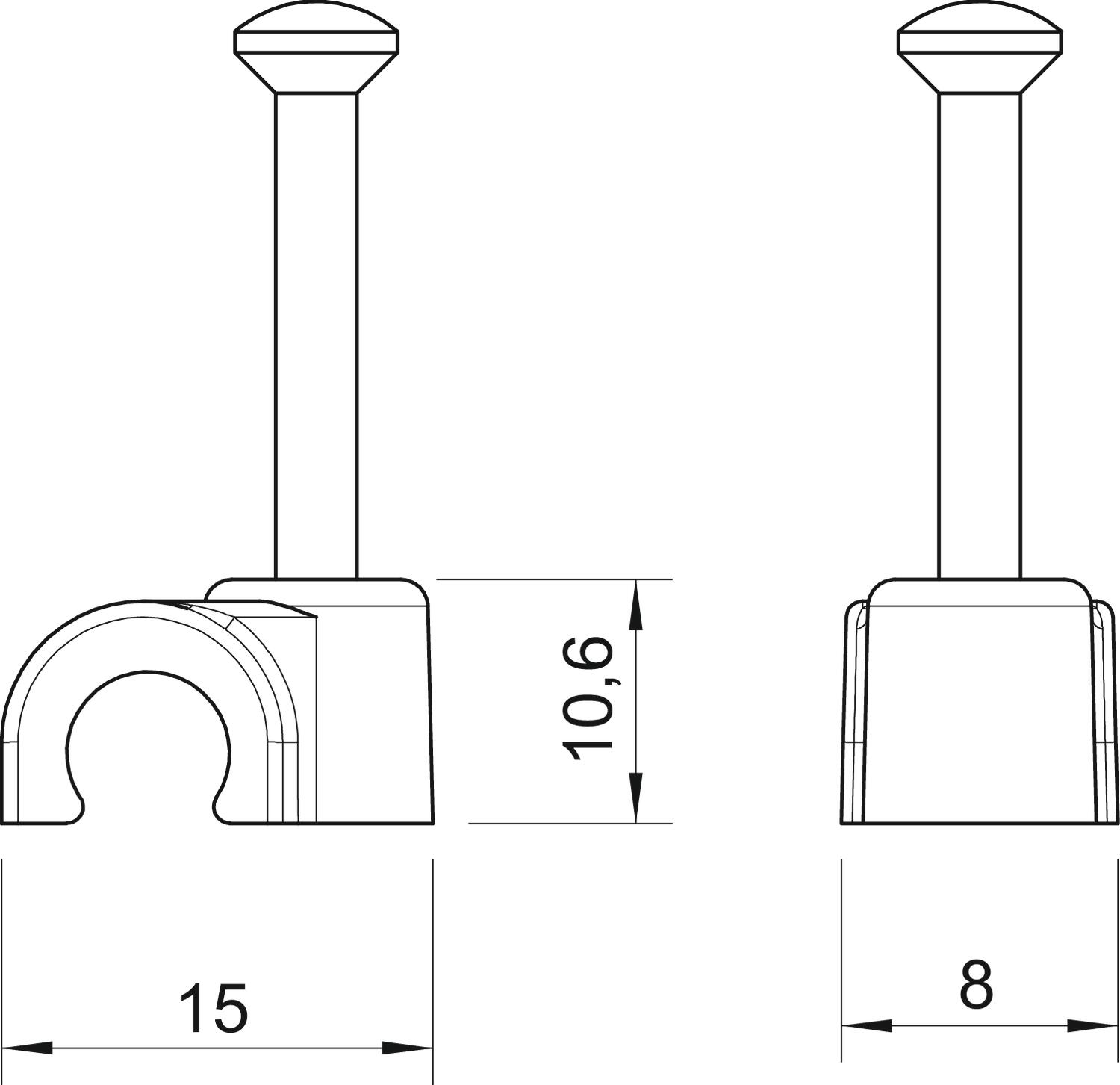

Dimension 8mm, L25
Dimension B 8 mm
Dimension H 10,6 mm
Dimension L 15 mm
Double clip no
for cable diameter 8 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2008 25 LGR 25 mm 8 mm 2,0x25 Light grey; RAL 7035 2227614
100 piece
2008 35 LGR 35 mm 8 mm 2,0x35 Light grey; RAL 7035 2227622
100 piece
2008 45 LGR 45 mm 8 mm 2,0x45 Light grey; RAL 7035 2227630
100 piece
