ISO nail clip 2007, pure white 18 | 7 | 2,0x18 | Pure white; RAL 9010
morepic-1 morepic-2

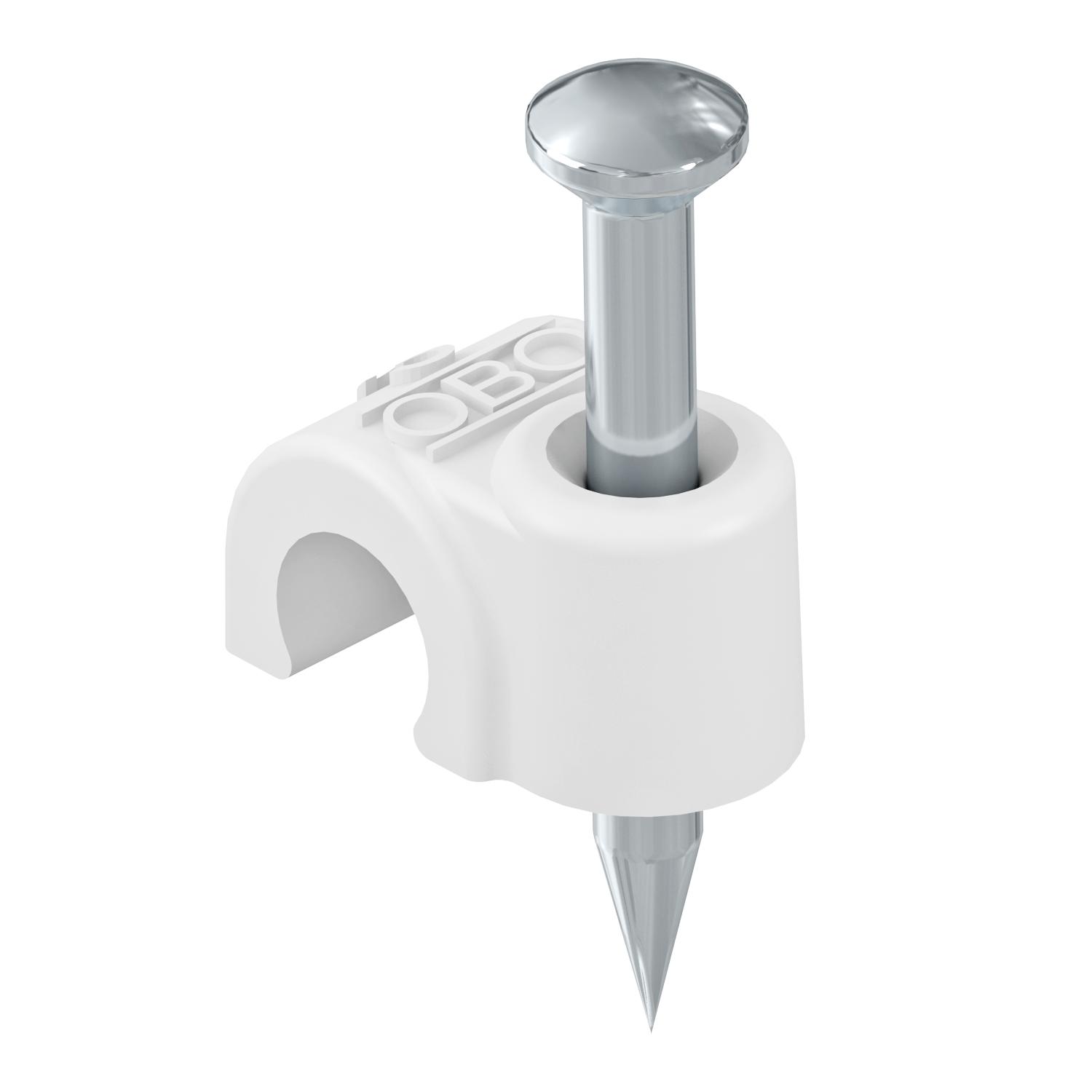

ISO nail clip 2007, pure white

Item no. 2225506 | EAN 4012195215295

7 mm
Pure white; RAL 9010
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 7mm, L18
Double clip no
for cable diameter 7 mm
For nail diameter 2,0x18
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes

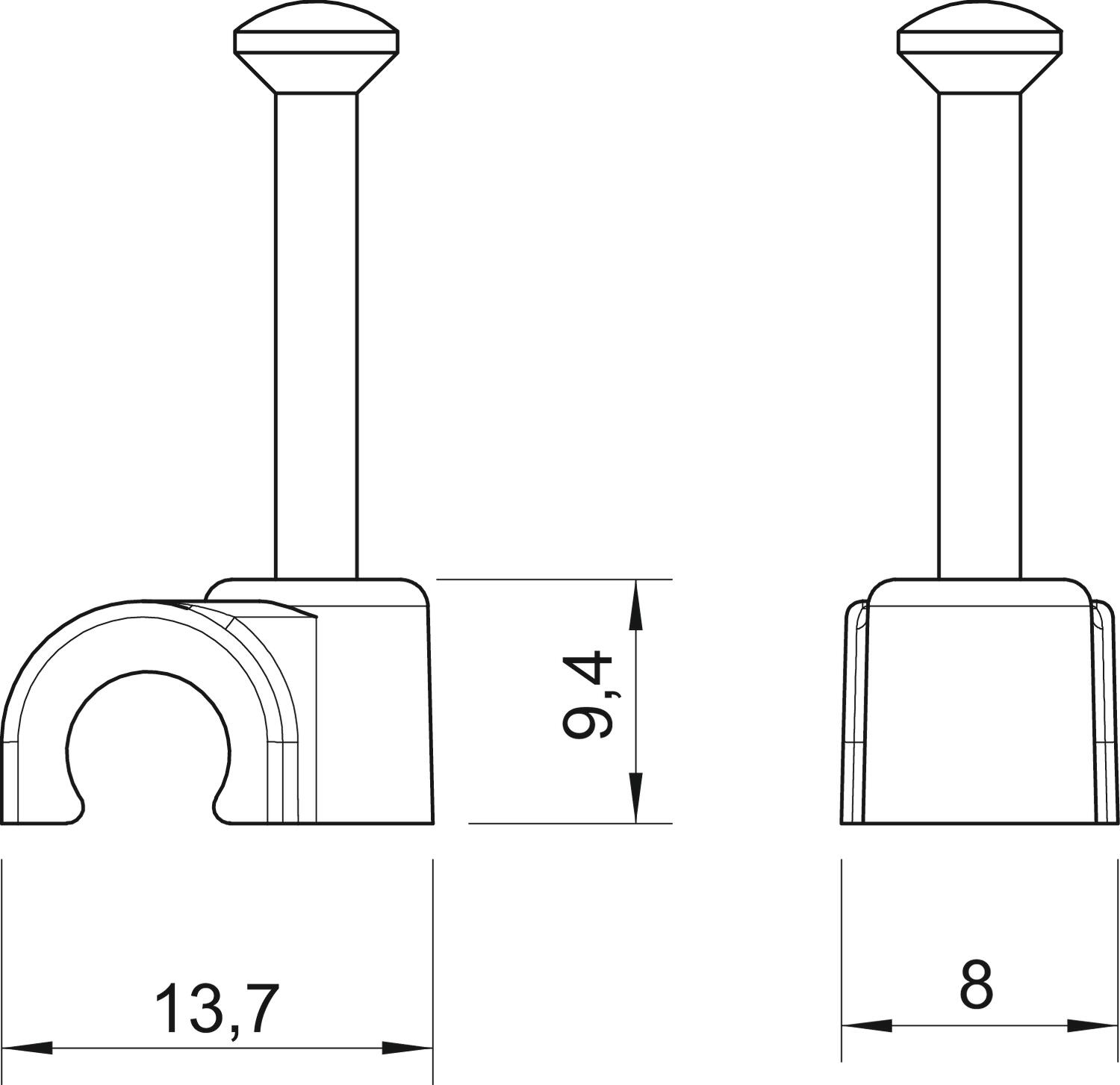

Dimensions

Dimension B 8 mm
Dimension H 9,4 mm
Dimension L 13,7 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2007 18 RW 18 mm 7 mm 2,0x18 Pure white; RAL 9010 2225506
100 piece
2007 25 RW 25 mm 7 mm 2,0x25 Pure white; RAL 9010 2225514
100 piece
2007 35 RW 35 mm 7 mm 2,0x35 Pure white; RAL 9010 2225522
100 piece
