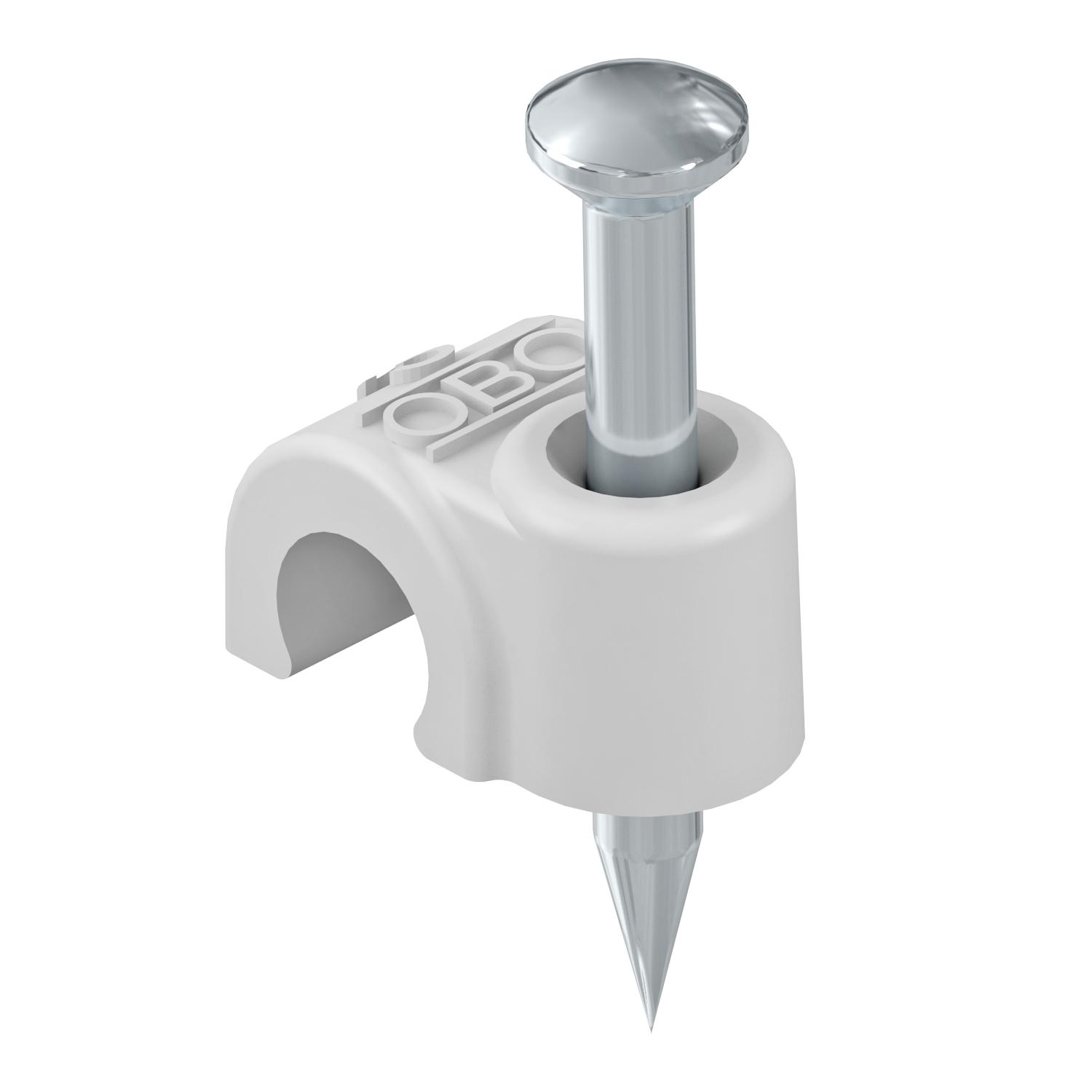

ISO nail clip 2007, light grey

Item no. 2227517 | EAN 4012195217756

7 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

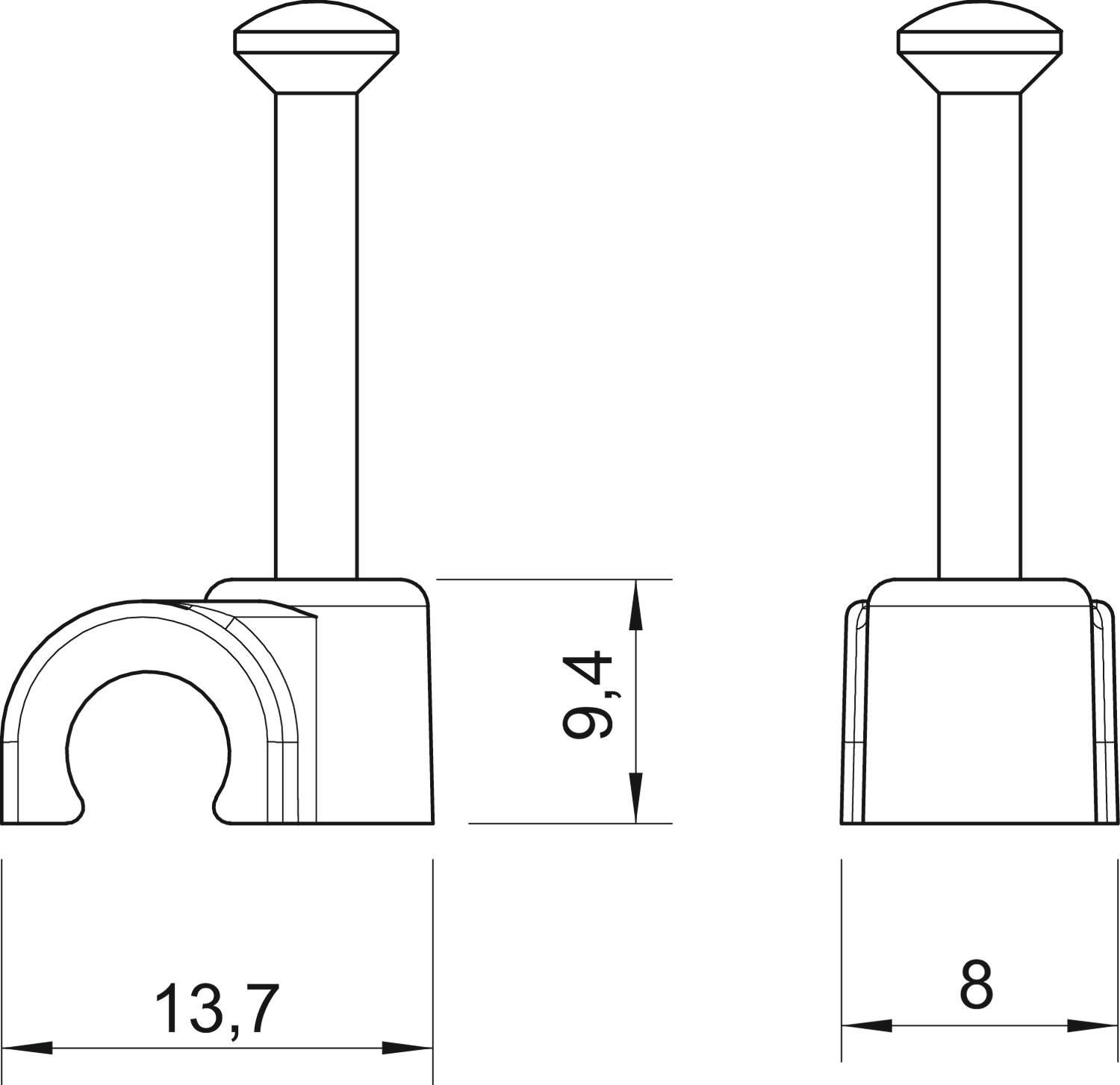

Dimension 7mm, L25
Dimension B 8 mm
Dimension H 9,4 mm
Dimension L 13,7 mm
Double clip no
for cable diameter 7 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2007 25 LGR 25 mm 7 mm 2,0x25 Light grey; RAL 7035 2227517
100 piece
2007 35 LGR 35 mm 7 mm 2,0x35 Light grey; RAL 7035 2227525
100 piece
