ISO nail clip 2006, white 35 | 6 | 2,0x35 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2006, white

Item no. 2225425 | EAN 4012195215233

Item no. / Types

Nail length

for cable diameter	6 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	6mm, L35
Double clip	no
for cable diameter	6 mm
For nail diameter	2,0x35
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

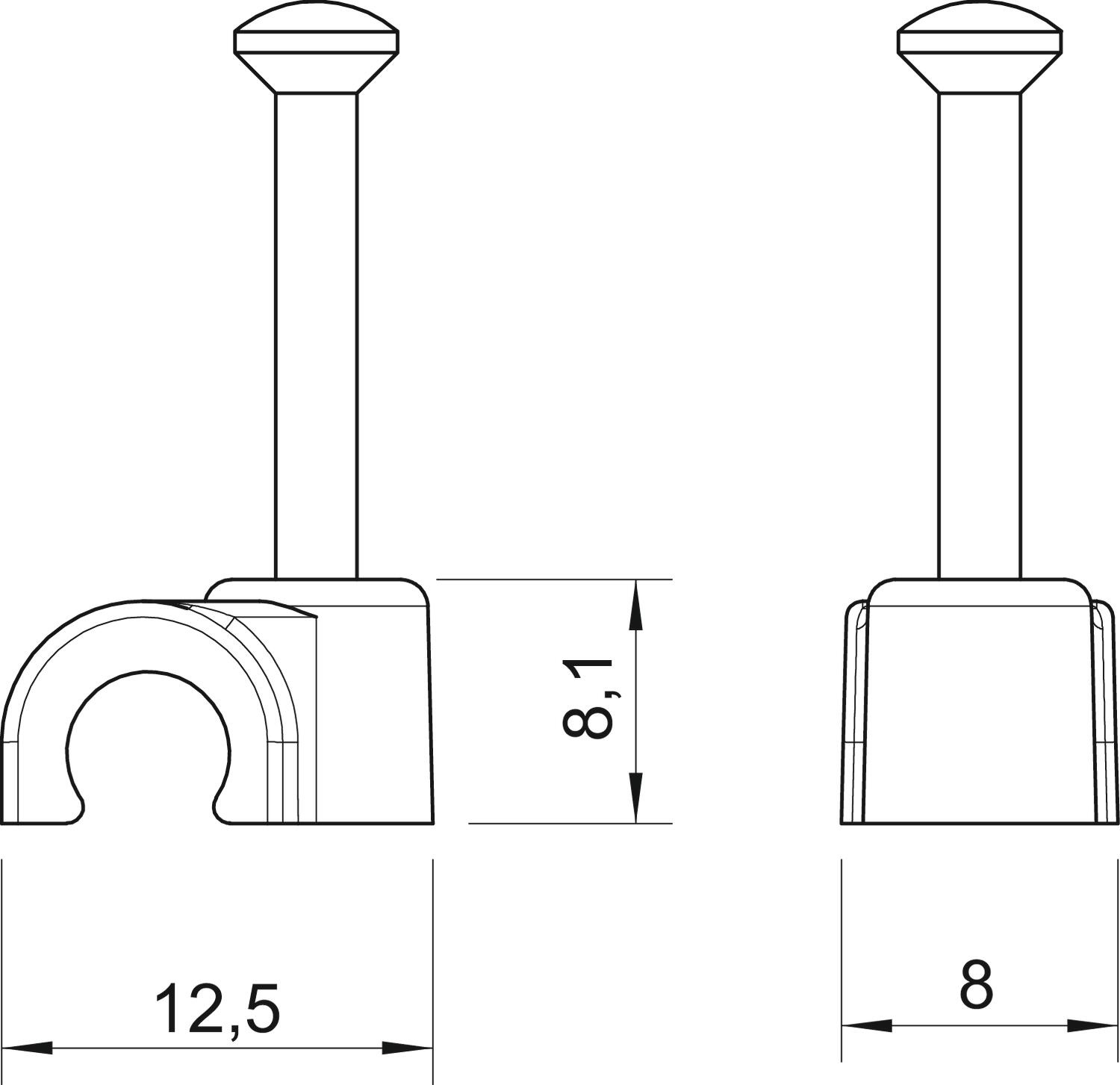

Dimensions

Dimension B	8 mm
Dimension H	8,1 mm

Dimension L	12,5 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2006 18 RW	18 mm	6 mm	2,0x18	Pure white; RAL 9010	2225409	piece	100 piece
2006 25 RW	25 mm	6 mm	2,0x25	Pure white; RAL 9010	2225417	piece	100 piece
2006 35 RW	35 mm	6 mm	2,0x35	Pure white; RAL 9010	2225425	piece	100 piece

Downloads

Data sheet 2006 35 RW / 2225425 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2006 35 RW / 2225425 , 0.06MB , pdf

Download

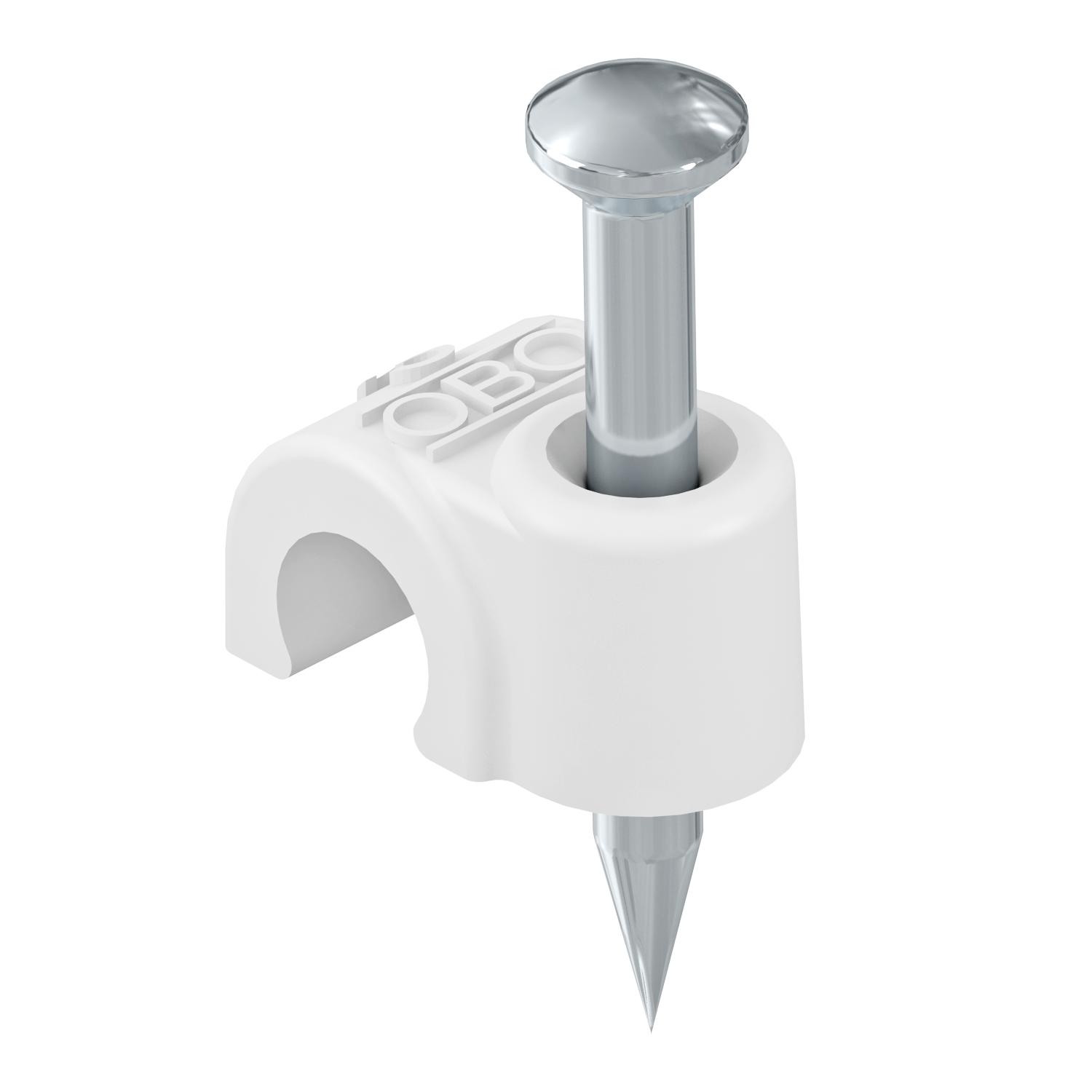

Product graphic 2006 35 RW / 2225425, 39.24 kB, jpg

Scale drawing 2006 35 RW / 2225425, 66.23 kB, jpg

2006 35 RW / 2225425
