ISO nail clip 2006, light grey 35 | 6 | 2,0x35 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2006, light grey

Item no. 2227371 | EAN 4012195606970

Item no. / Types

Nail length

for cable diameter	6 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	6mm, L35
Double clip	no
for cable diameter	6 mm
For nail diameter	2,0x35
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

Dimensions

Dimension B	8 mm
Dimension H	8,1 mm

Dimension L	12,5 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2006 35 LGR SP	35 mm	6 mm	2,0x35	Light grey; RAL 7035	2227371	piece	200 piece
2006 25 LGR	25 mm	6 mm	2,0x25	Light grey; RAL 7035	2227428	piece	100 piece
2006 35 LGR	35 mm	6 mm	2,0x35	Light grey; RAL 7035	2227436	piece	100 piece
2006 25 LGR SP	25 mm	6 mm	2,0x25	Light grey; RAL 7035	2227460	piece	200 piece

Downloads

Data sheet 2006 35 LGR SP / 2227371 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2006 35 LGR SP / 2227371 , 0.06MB , pdf

Download

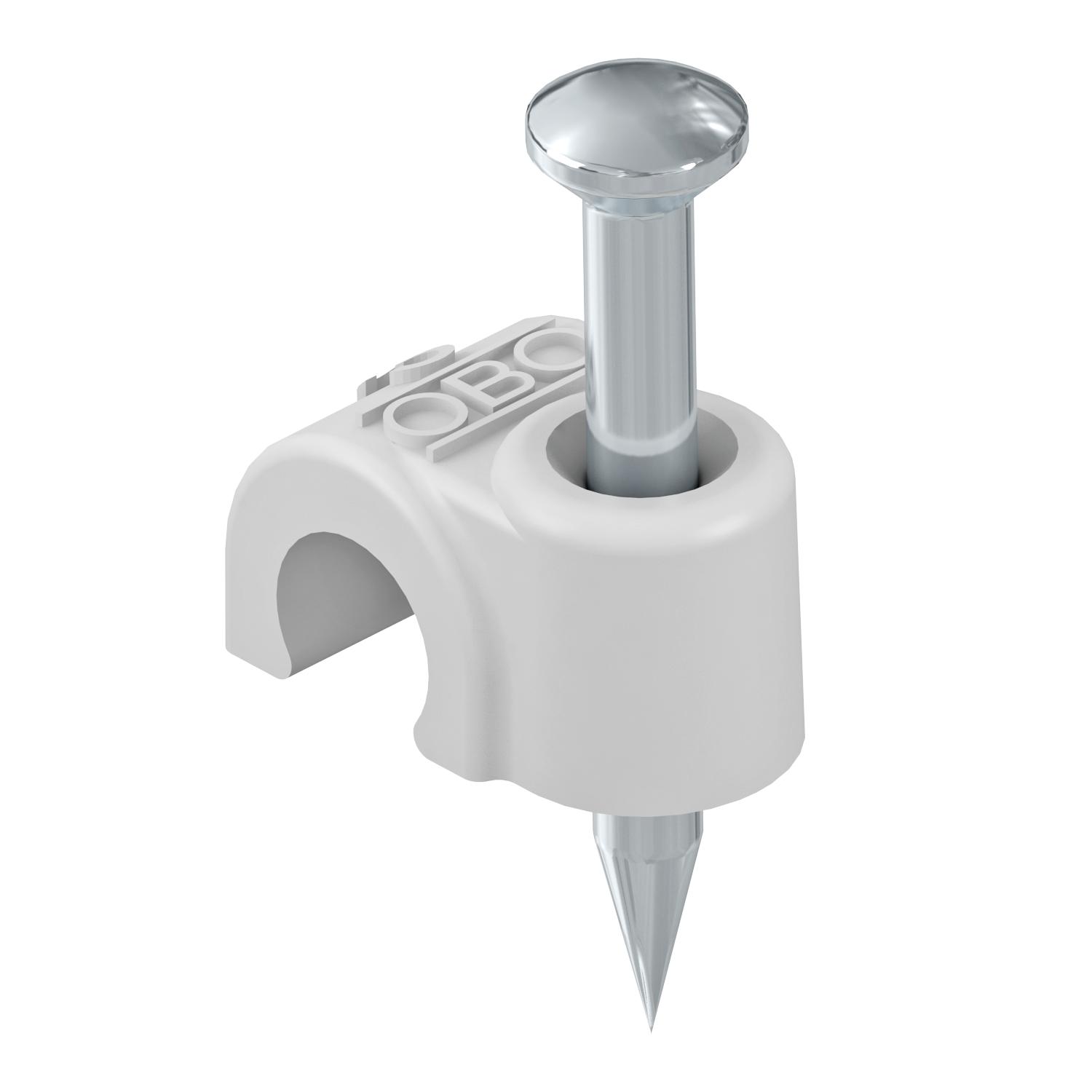

Product graphic 2006 35 LGR SP / 2227371, 42.51 kB, jpg

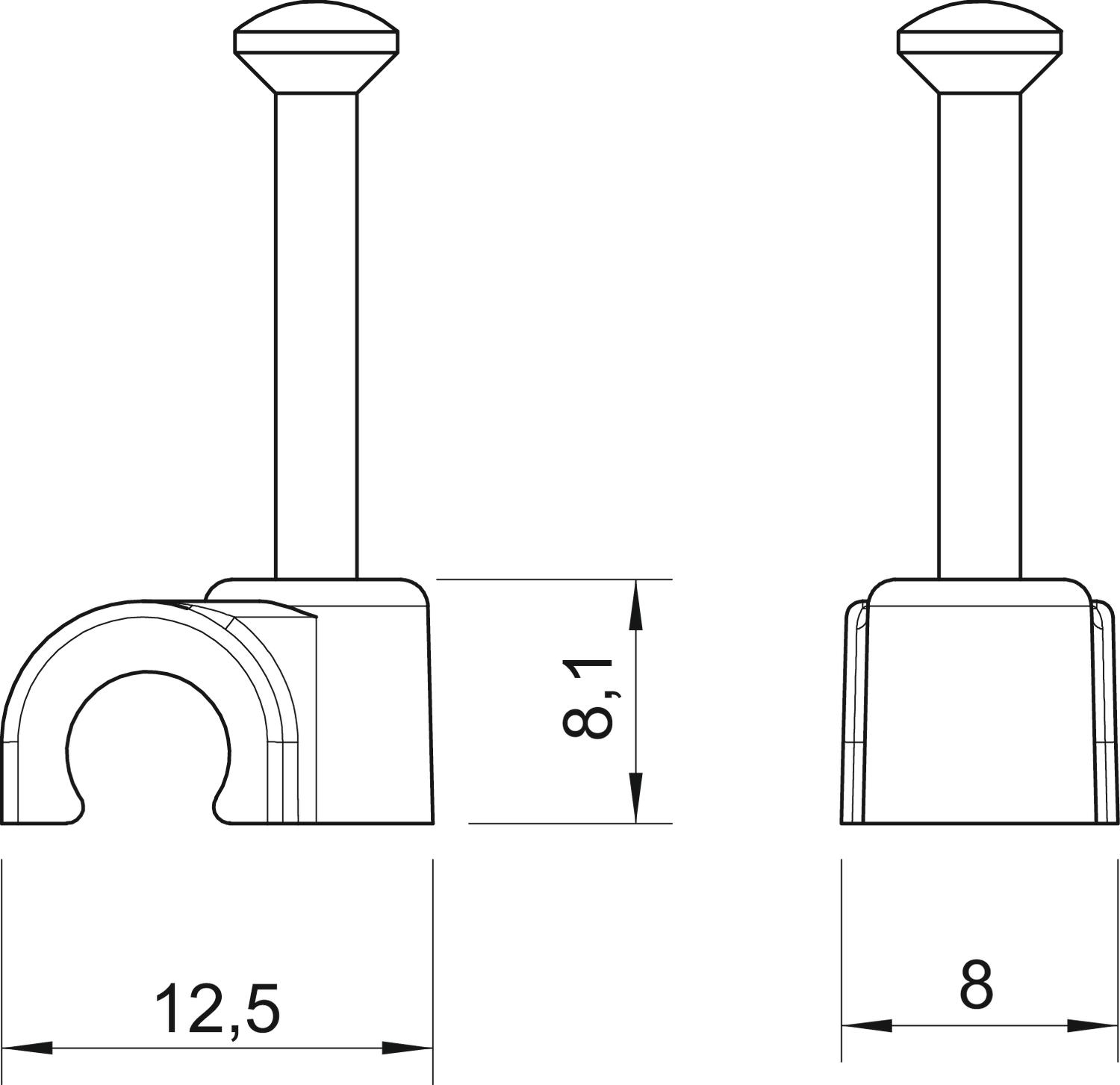

Scale drawing 2006 35 LGR SP / 2227371, 66.23 kB, jpg
