ISO nail clip 2004, white 18 | 4 | 2,0x18 | Pure white; RAL 9010
morepic-1 morepic-2

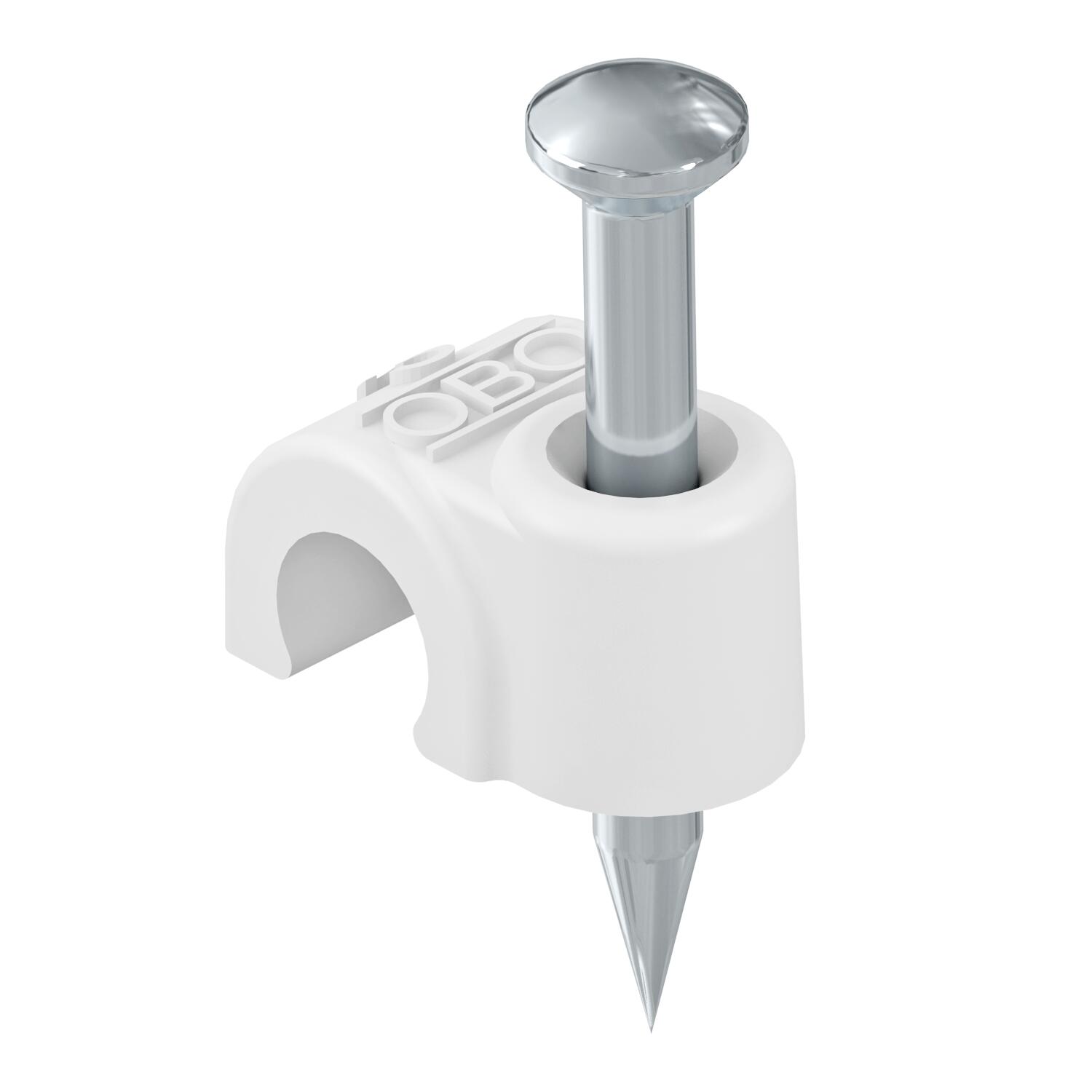

ISO nail clip 2004, white

Item no. 2225220 | EAN 4012195214878

4 mm
Pure white; RAL 9010
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010

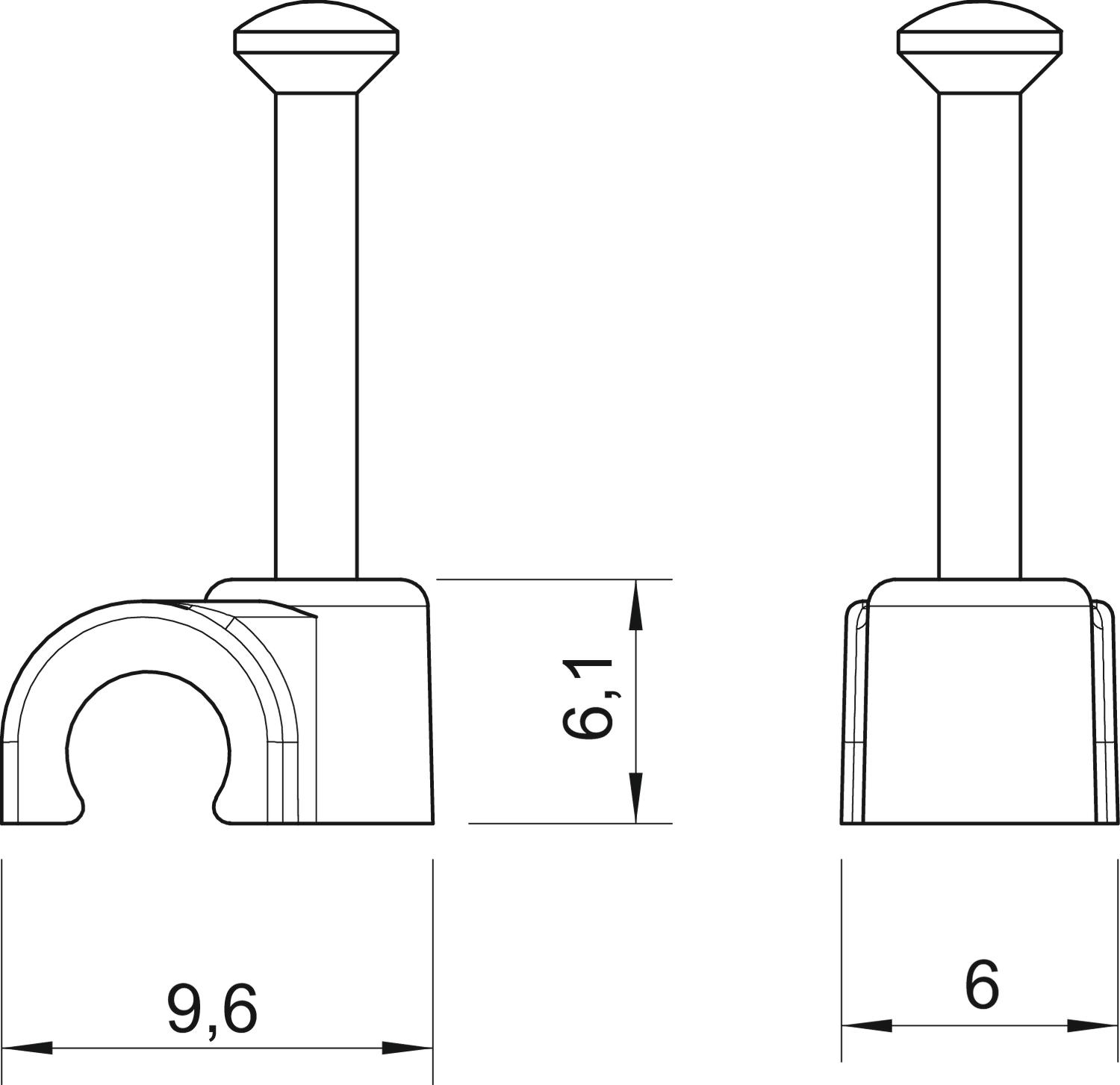

Dimension 4mm, L18
Dimension B 6 mm
Dimension H 6,1 mm
Dimension L 9,6 mm
Double clip no
for cable diameter 4 mm
For nail diameter 2,0x18
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2004 18 RW 18 mm 4 mm 2,0x18 Pure white; RAL 9010 2225220
200 piece
2004 25 RW 25 mm 4 mm 2,0x25 Pure white; RAL 9010 2225239
200 piece
Downloads

Download

Download

EU declaration of conformity 2004 18 RW / 2225220 , 0.06MB , pdf
Download
REACH Declaration of conformity 2004 18 RW / 2225220 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2004 18 RW / 2225220 , 0.13MB , pdf
Download

2004 18 RW / 2225220
