ISO nail clip 2004, light grey 18 | 4 | 2,0x18 | Light grey; RAL 7035
morepic-1 morepic-2

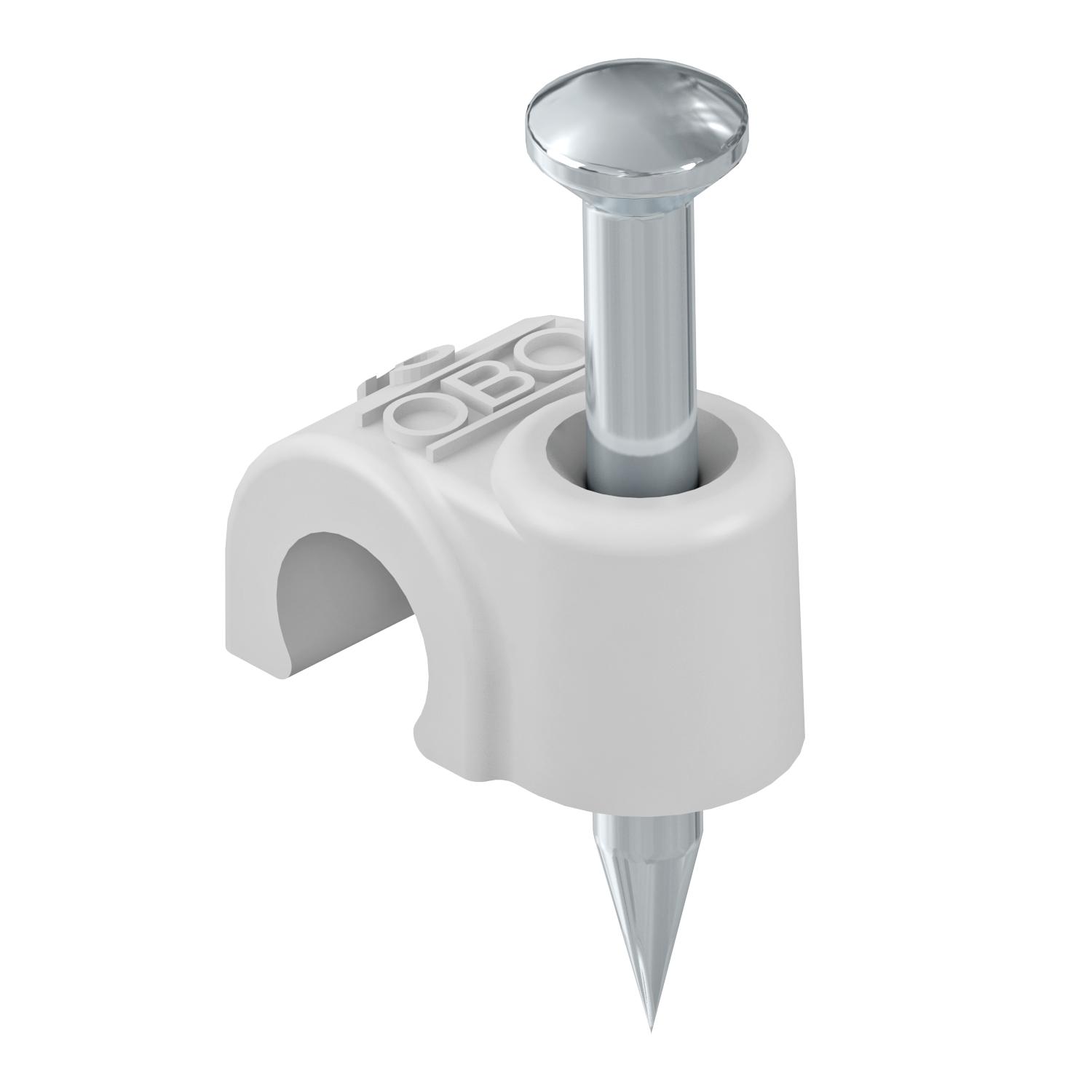

ISO nail clip 2004, light grey

Item no. 2227223 | EAN 4012195217275

4 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 4mm, L18
Double clip no
for cable diameter 4 mm
For nail diameter 2,0x18
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

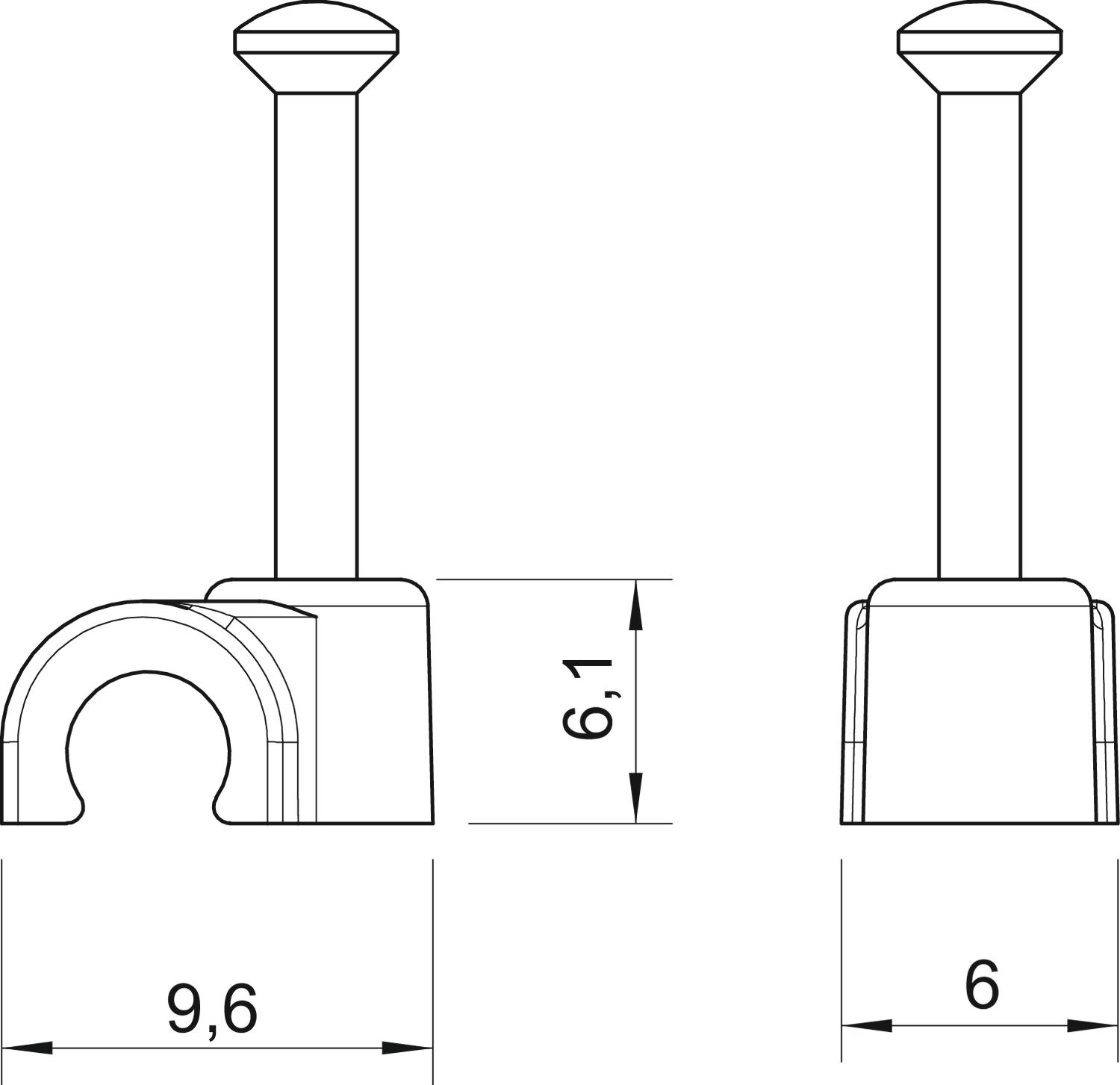

Dimensions

Dimension B 6 mm
Dimension H 6,1 mm
Dimension L 9,6 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2004 18 LGR 18 mm 4 mm 2,0x18 Light grey; RAL 7035 2227223
200 piece

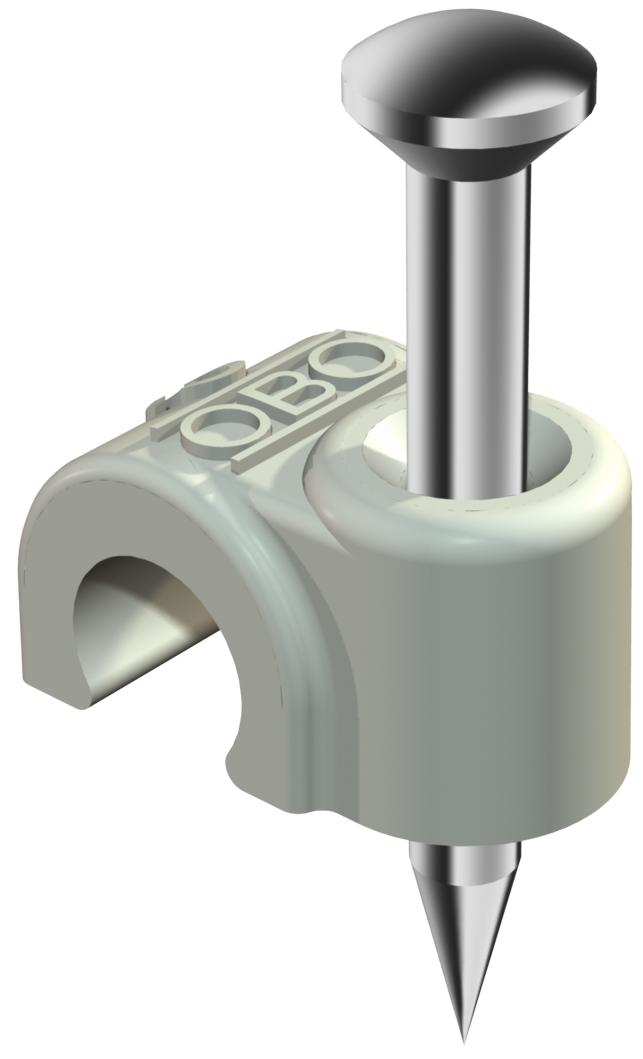

2004 25 LGR 25 mm 4 mm 2,0x25 Light grey; RAL 7035 2227231
200 piece
Downloads

Download

Download

Declaration of conformity 2004 18 LGR / 2227223 , 0.06MB , pdf
Download
REACH Declaration of conformity 2004 18 LGR / 2227223 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2004 18 LGR / 2227223 , 0.12MB , pdf
Download

2004 18 LGR / 2227223
