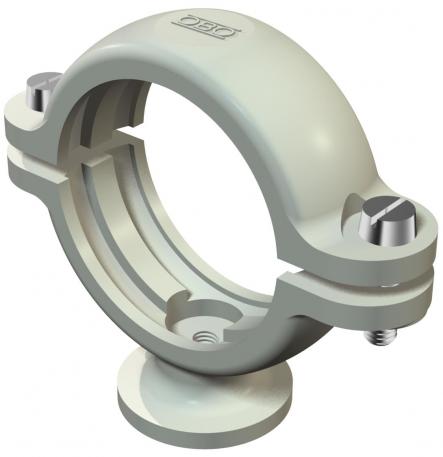

ISO base clip 45.5 | 47 | Light grey; RAL 7035
morepic-1 morepic-2

ISO base clip

Item no. 2130475 | EAN 4012195197591

Light grey; RAL 7035
Product description
Product description
ISO base clip 45.5–47 mm
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M6 x 20
Clamping range D, max. 47 mm
Clamping range D, min. 45,5 mm
Colour Light grey; RAL 7035
Dimension 45,5-47mm

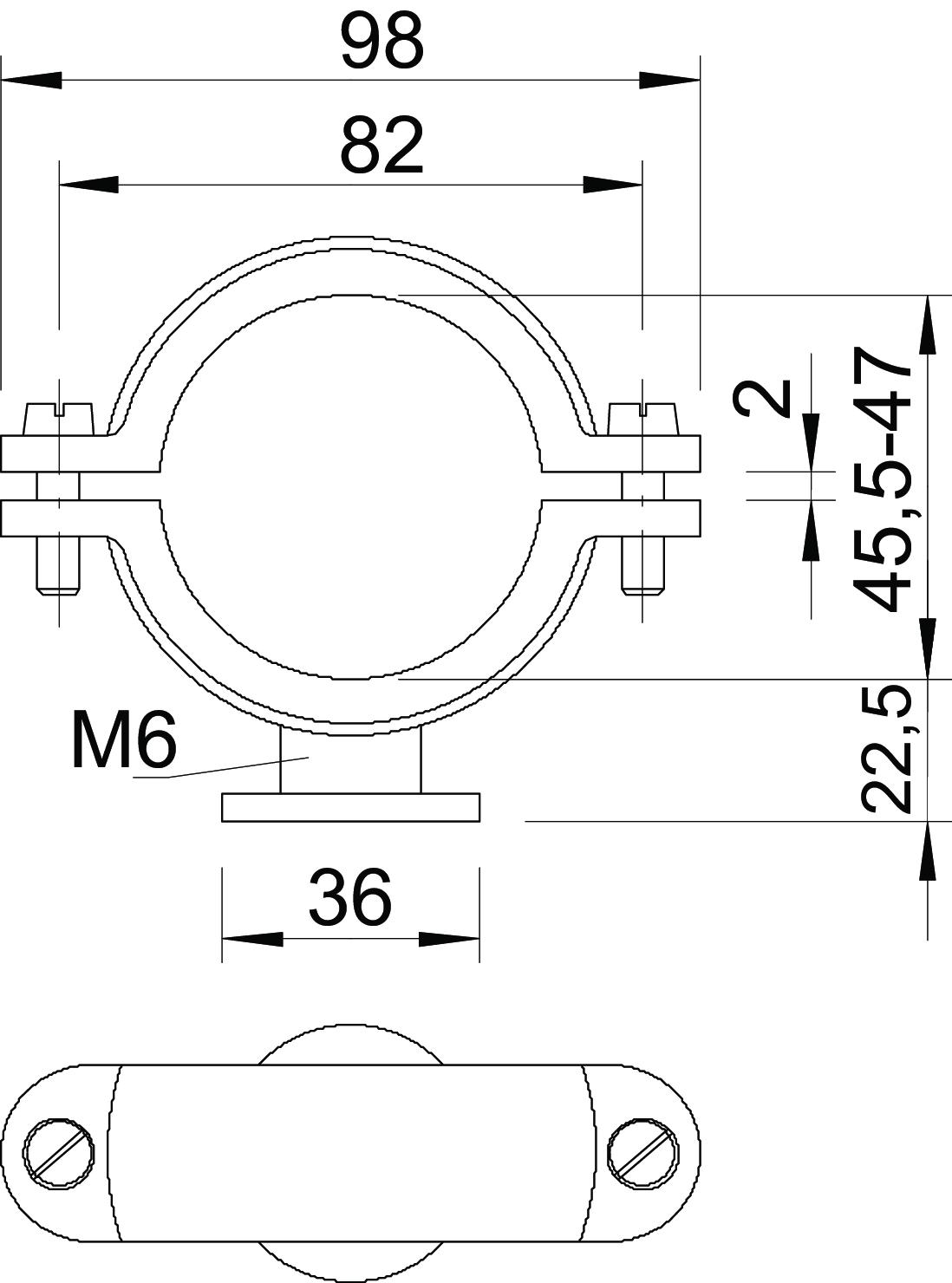

Dimension A 98 mm
Dimension B 82 mm
Dimension d 36 mm
Dimension H 22,5 mm
Dimension x 2 mm
Fastening type Screw hole
Halogen-free yes
Material Polystyrene
Number of cables/pipes 1
Plastic-covered no
Size Pg 9
Suitable in fire protection area no
Thread M6
UV-resistant no
Version for Closed
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
2960 11 M6 LGR 9 mm 11 mm Light grey; RAL 7035 2130114
50 piece
2960 12 M6 LGR 12 mm 13 mm Light grey; RAL 7035 2130122
50 piece
2960 15 M6 LGR 15 mm 17 mm Light grey; RAL 7035 2130157
50 piece
2960 18 M6 LGR 16.5 mm 18 mm Light grey; RAL 7035 2130181
50 piece
2960 22 M6 LGR 20.5 mm 22 mm Light grey; RAL 7035 2130211
50 piece
2960 25 M6 LGR 22.5 mm 25 mm Light grey; RAL 7035 2130254
25 piece
2960 28 M6 LGR 25.5 mm 28 mm Light grey; RAL 7035 2130289
25 piece
2960 35 M6 LGR 31.5 mm 35 mm Light grey; RAL 7035 2130351
25 piece
2960 40 M6 LGR 36.5 mm 40 mm Light grey; RAL 7035 2130408
20 piece
2960 43 M6 LGR 40.5 mm 43 mm Light grey; RAL 7035 2130432
20 piece
2960 47 M6 LGR 45.5 mm 47 mm Light grey; RAL 7035 2130475
15 piece
2960 54 M6 LGR 50.5 mm 54 mm Light grey; RAL 7035 2130548
15 piece
