- Product description
-

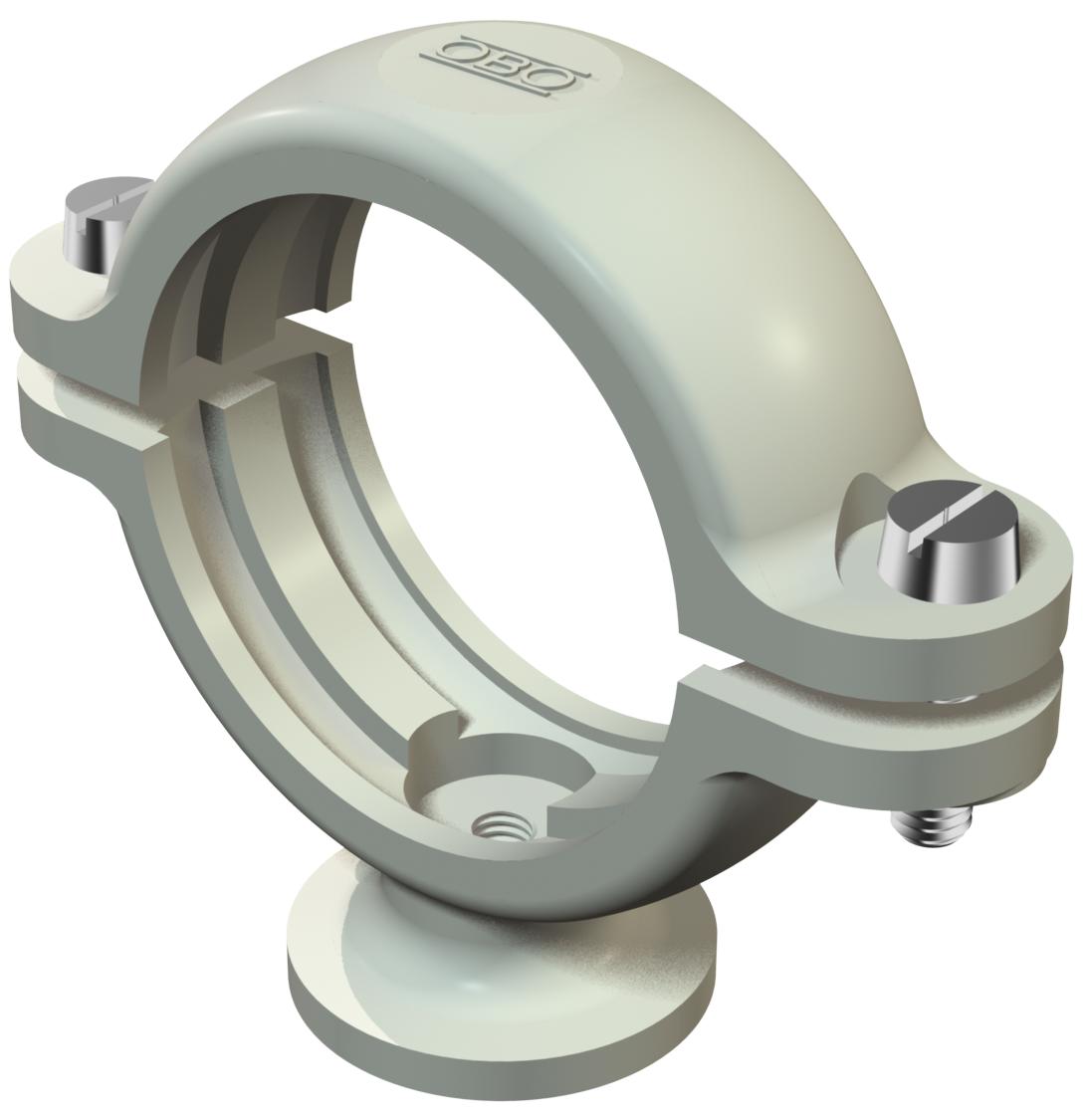

Product descriptionISO base clip 15 mm
- Technical data
-
Technical data

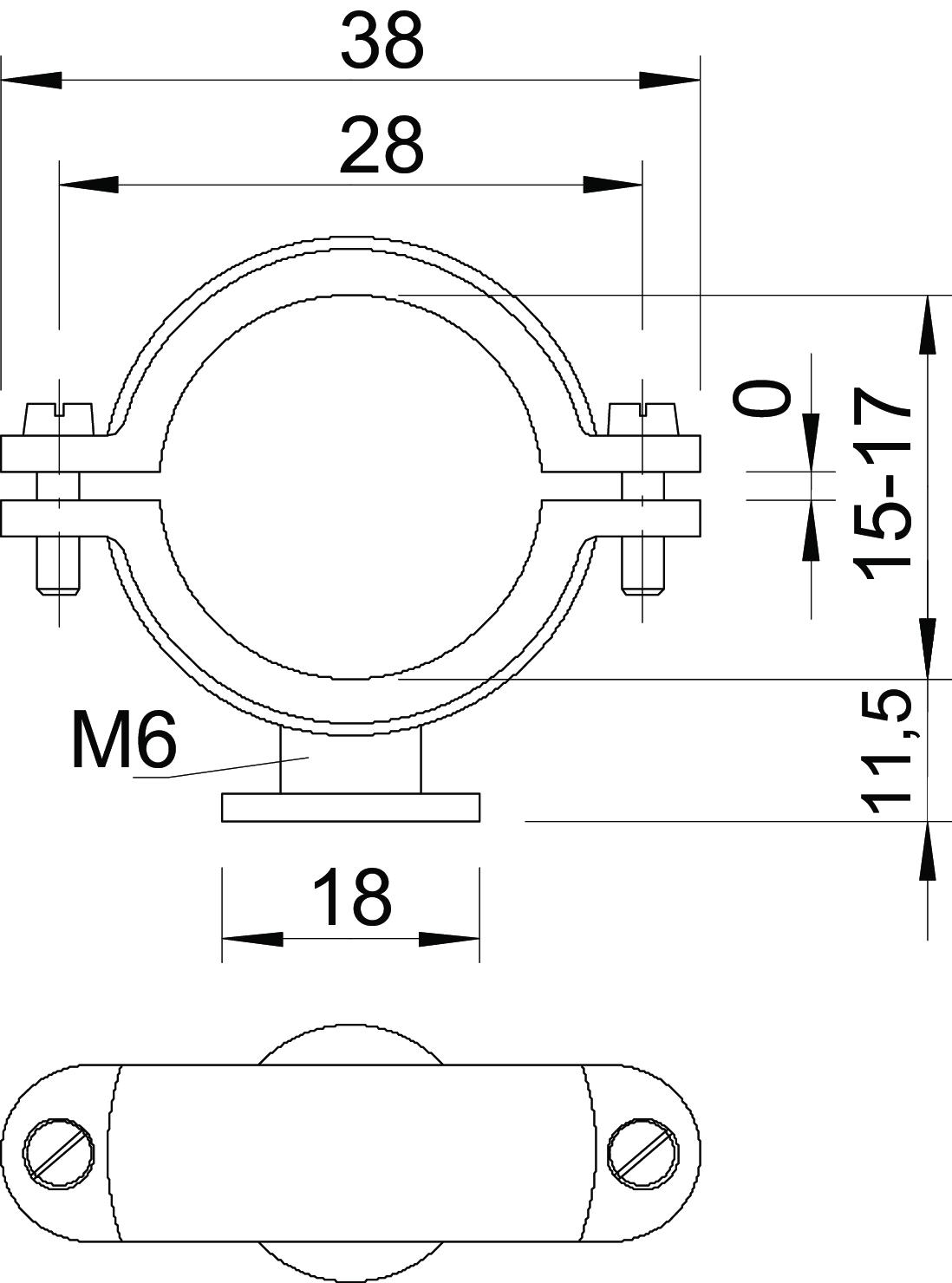

Bolt M5 x 14 Clamping range D, max. 17 mm Clamping range D, min. 15 mm Colour Light grey; RAL 7035 Dimension 15mm Dimension A 38 mm Dimension B 28 mm Dimension d 18 mm Dimension d max. 17 mm Dimension d min. 15 mm Dimension H 11,5 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Size Pg 9 Suitable in fire protection area no Thread M6 UV-resistant no Version for Closed - All types
-
All types
- Downloads
-
Data sheet 2960 15 M6 LGR / 2130157 , 0.23MB , pdfEU declaration of conformity 2960 15 M6 LGR / 2130157 , 0.06MB , pdfREACH Declaration of conformity 2960 15 M6 LGR / 2130157 , 0.12MB , pdfRoHS Declaration of conformity 2960 15 M6 LGR / 2130157 , 0.12MB , pdf
