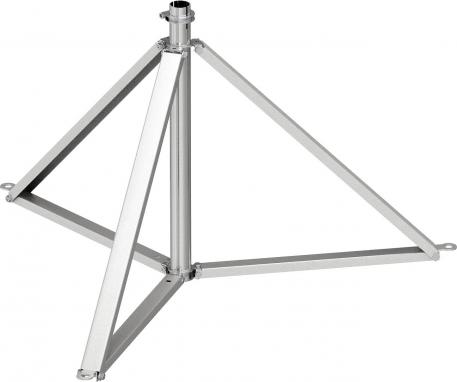

isFang tripod 1000 | 40 | 885 | 600 | Aluminium

isFang tripod

Item no. 5408966 | EAN 4012195802433

Item no. / Types

Dimension B

Dimension d min.	40 mm

Dimension H

Dimension L

Material

Product description

Product description

• Installation of free-standing air-termination rods as well as insulated air-termination rods with 40 mm diameter
• Roof slope to max. 5 degrees
• Incl. Rd 8–10 crossbar for quick round conductor fastening
• Concrete base as well as threaded rods should be ordered separately

Technical data

Technical data

Air-termination rod holder	Screwless
Diameter	1000 mm
Dimension	1,25x1,35m
Dimension B	1000 mm
Dimension d min.	40 mm

Dimension H	885 mm
Dimension L	600 mm
Material	Aluminium
Version for	Stand

All types

All types

Types	Dimension B	Dimension d min.	Dimension H	Dimension L	Material	Item no.	Quantity	SSU
isFang 3B-100 AL	1000 mm	40 mm	885 mm	600 mm	Aluminium	5408966	piece	1 piece
isFang 3B-150 AL	1500 mm	40 mm	1275 mm	900 mm	Aluminium	5408967	piece	1 piece
isFang 3B-100	1000 mm	40 mm	885 mm	600 mm	Stainless steel	5408968	piece	1 piece
isFang 3B-150	1500 mm	40 mm	1275 mm	900 mm	Stainless steel	5408969	piece	1 piece
