isFang support for spaced pipe mounting, ø 50−300 mm 100 | ø 50–300
morepic-1 morepic-2 video-1

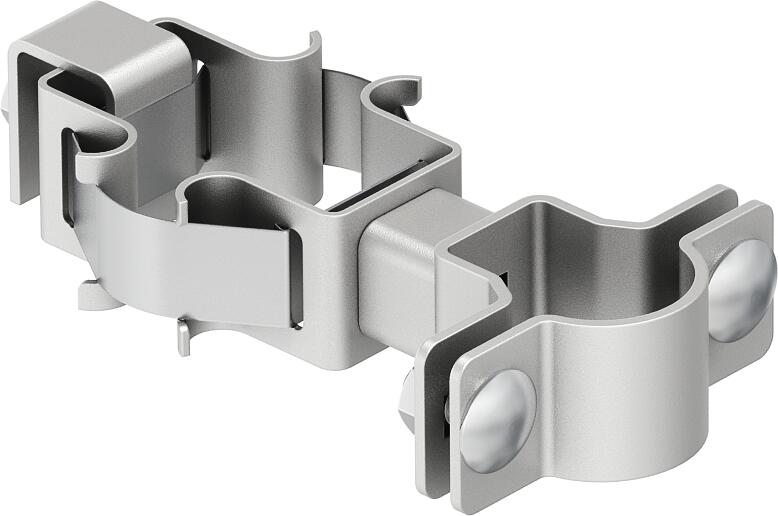

isFang support for spaced pipe mounting, ø 50−300 mm

Item no. 5408955 | EAN 4012195849360

ø 50–300 mm
Product description
Product description
Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 50–300 mm.
Technical data

Technical data

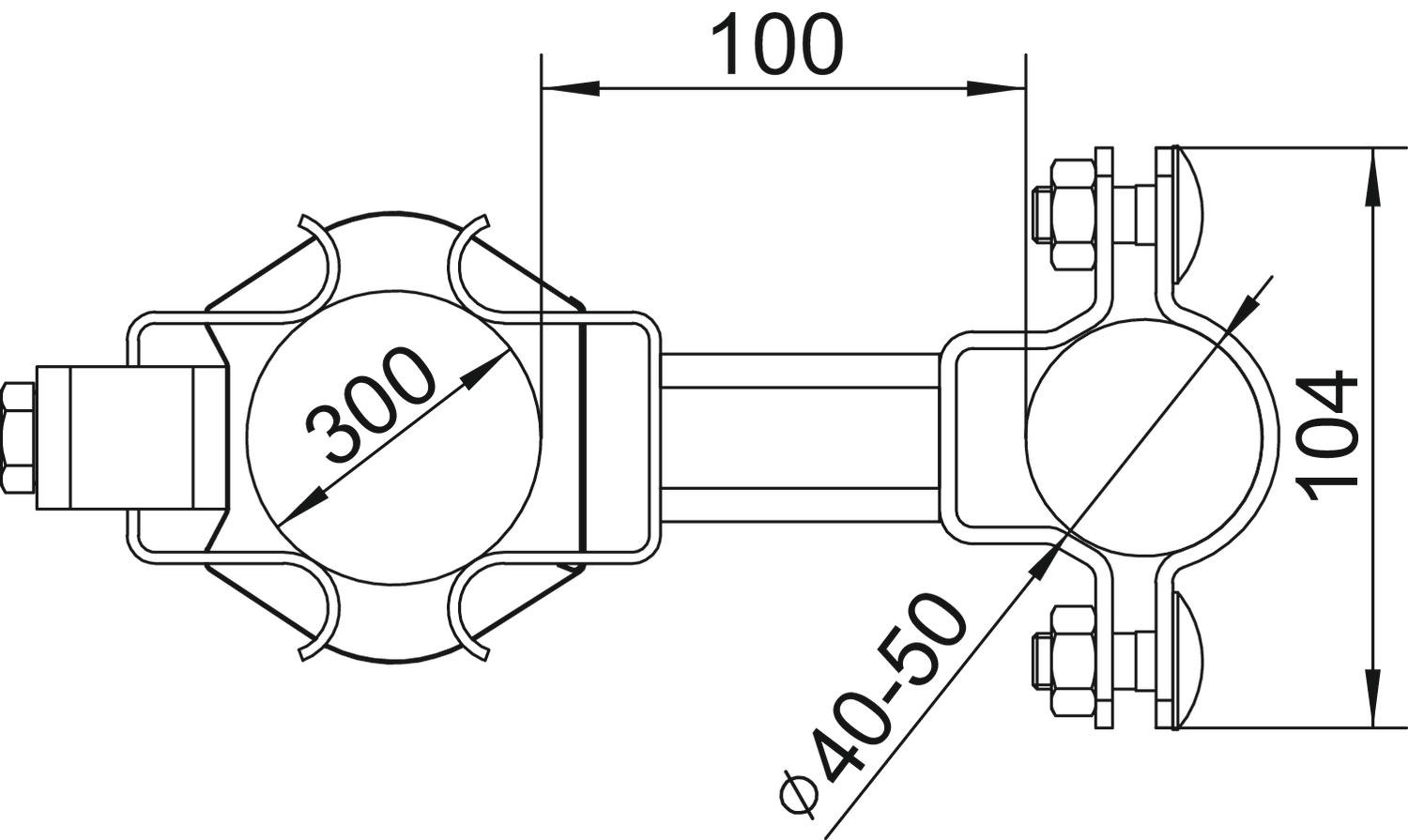

Dimension Ø50-300mm
Dimension d min. 300 mm
Dimension L 100 mm
Fit ø 50–300 mm
Material Stainless steel
All types

All types

Types Dimension L Fit Item no. Quantity SSU
isFang TR100 100 100 mm ø 50–300 mm 5408955
2 piece
isFang TR100 200 200 mm ø 50–300 mm 5408957
2 piece
isFang TR100 300 300 mm ø 50–300 mm 5408959
2 piece
Downloads

Download

Download
Download

EU declaration of conformity isFang TR100 100 / 5408955 , 0.06MB , pdf
