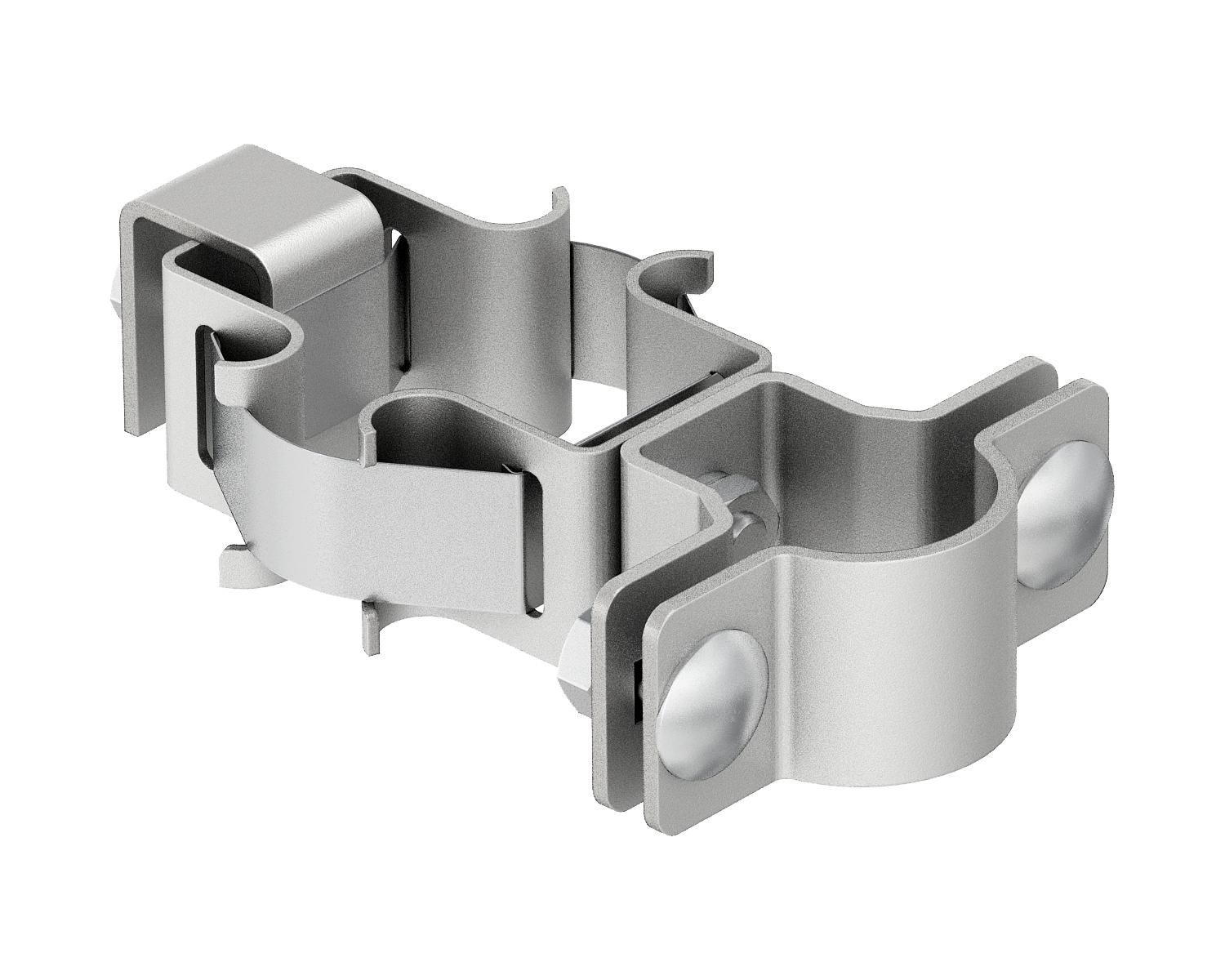

isFang support for pipe mounting, ø 50−300 mm

Item no. / Types	5408956 / isFang TR100

Dimension L	40 mm

Fit	ø 50-300 mm

Product description

Product description

Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 50-300mm.

Technical data

Dimension	Ø50-300mm
Fit	ø 50-300 mm

Material	Stainless steel

Dimension d min.	300 mm

Dimension L	40 mm

All types

Types	Dimension L	Fit	Item no.	Quantity	SSU
isFang TR100	40 mm	ø 50-300 mm	5408956	piece	2 piece

Downloads

Data sheet isFang TR100 / 5408956 , 0.22MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Download

isFang TR100 / 5408956
