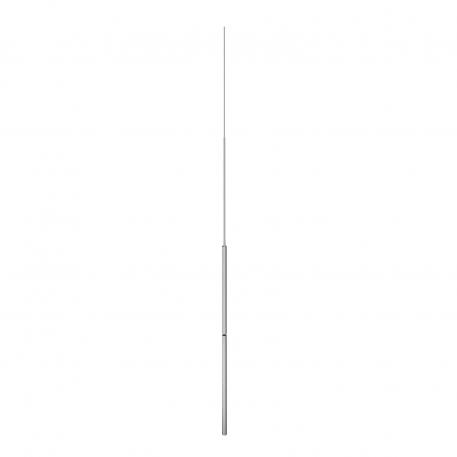

isFang air-termination rod 7000 | 40/ 16/ 10

isFang air-termination rod

Item no. 5402876 | EAN 4012195674818

Item no. / Types

Length

Nominal size Ø	40/ 16/ 10 mm

Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Tapered air-termination rod

• Suitable for 40 mm isFang tripod stand and isFang support systems

Technical data

Technical data

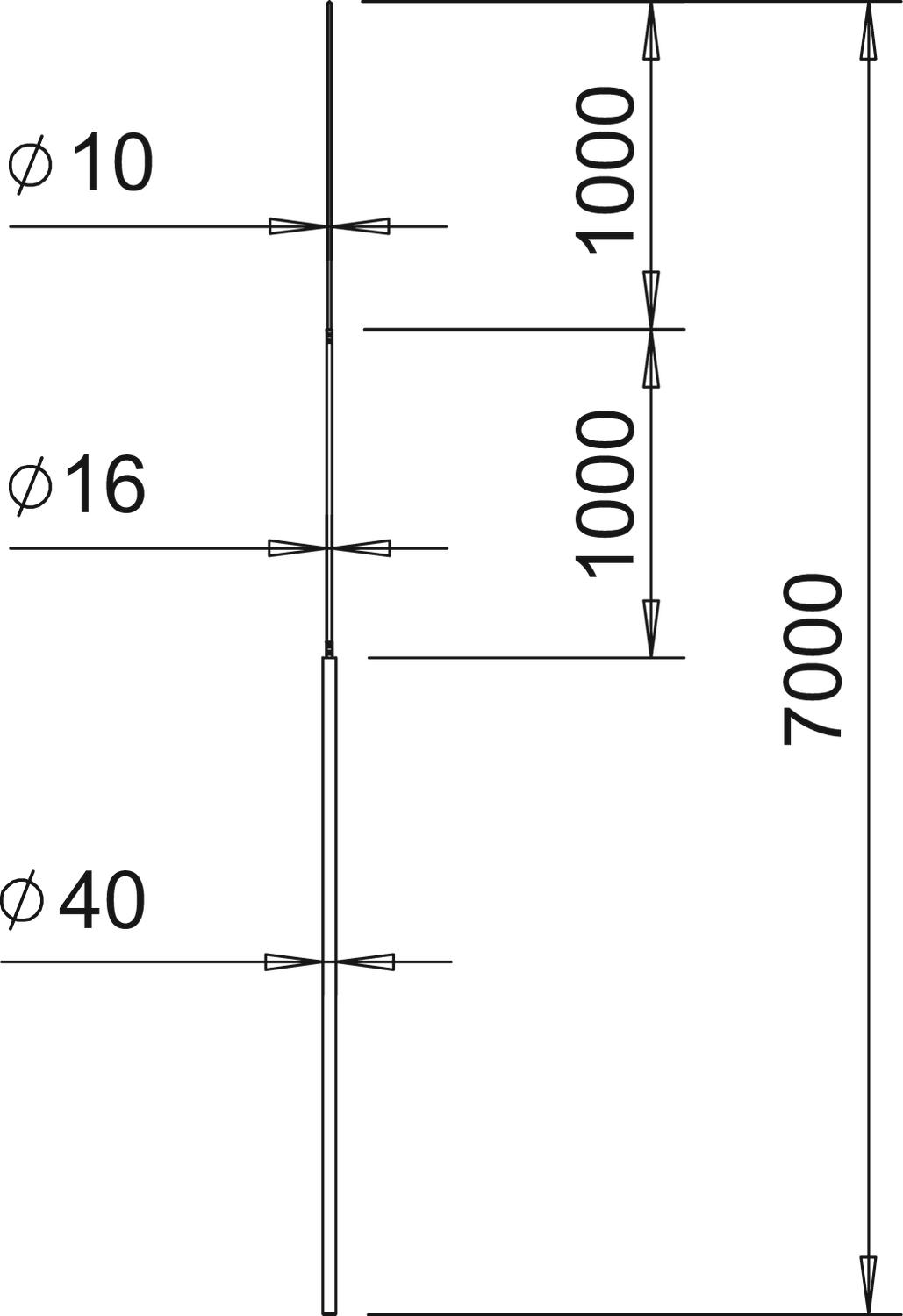

Dimension	7000mm
Dimension B	5000 mm
Dimension D	1000 mm
Dimension H	1000 mm
High voltage-resistant, insulated version	no

Length	7000 mm
Material	Aluminium
Nominal size Ø	40/ 16/ 10 mm
Version for	Air-termination rod with stand

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 3B-4000	4000 mm	40/ 16/ 10 mm	5402864	piece	1 piece
101 3B-4500	4500 mm	40/ 16/ 10 mm	5402866	piece	1 piece
101 3B-5000	5000 mm	40/ 16/ 10 mm	5402868	piece	1 piece
101 3B-5500	5500 mm	40/ 16/ 10 mm	5402870	piece	1 piece
101 3B-6000	6000 mm	40/ 16/ 10 mm	5402872	piece	1 piece
101 3B-6500	6500 mm	40/ 16/ 10 mm	5402874	piece	1 piece
101 3B-7000	7000 mm	40/ 16/ 10 mm	5402876	piece	1 piece
101 3B-7500	7500 mm	40/ 16/ 10 mm	5402878	piece	1 piece
101 3B-8000	8000 mm	40/ 16/ 10 mm	5402880	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227	piece	1 piece
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238	piece	10 piece
isFang tripod	isFang 3B-100 AL	5408966	piece	1 piece
isFang-3B threaded rod	isFang 3B-G2	5408972	piece	3 piece
