isCon® connection element set ASE, testable
Item no. 5408080 | EAN 4012196876594
- Product description
-
Product description
• For the isCon® Pro+ and Premium conductor

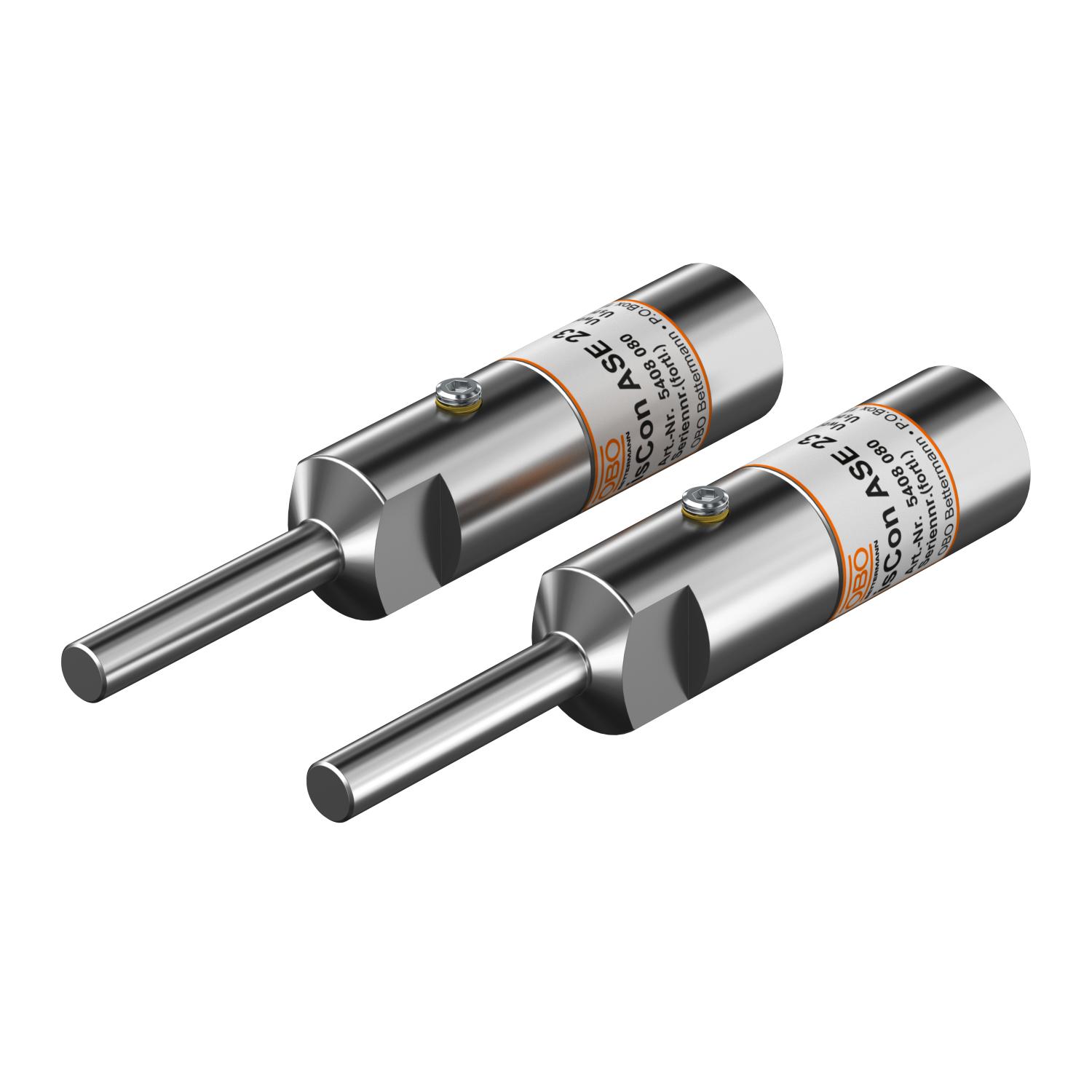

• Set consisting of 2 testable connection elements
• For function and state determination with integrated ASE technology (Adaptive Switching Element)
• For comprehensive repeat testing according to VDE 0185-305-3 (IEC/EN 62305-3)
• Screw-on termination
• Testable with the simplest insulation measuring devices (≥ 1 kV DC)
• Can be used in all lightning protection classes
• For highest system availability - no switch-off, dismantling or testing with
dangerous pulse voltages
• QR code to open the test report
• Incl. heat-shrinkable hose and Allen key
-
- Technical data
-
Technical data
Clamping range, max. 23 mm Connection Round conductor Dimension 23mm Fit 23 mm Material Stainless steel Type of connector Connectors Type of fastening screw Miscellaneous Dimensions

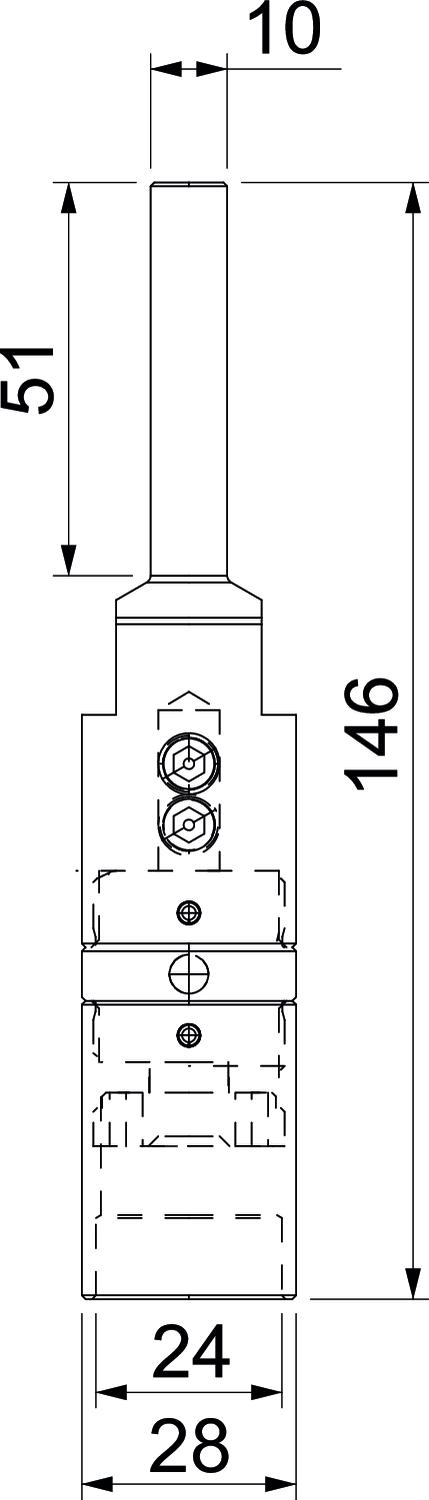

Dimension d min. 28 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 piece - Downloads
-
Data sheet isCon ASE 23 / 5408080 , 0.20MB , pdfTest report Example form test report isCon , 0.82MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdfMounting instructions Mounting instructions isCon connection element ASE , 5.49MB , pdf
