isCon® connection element 28 | H2/200 | 23

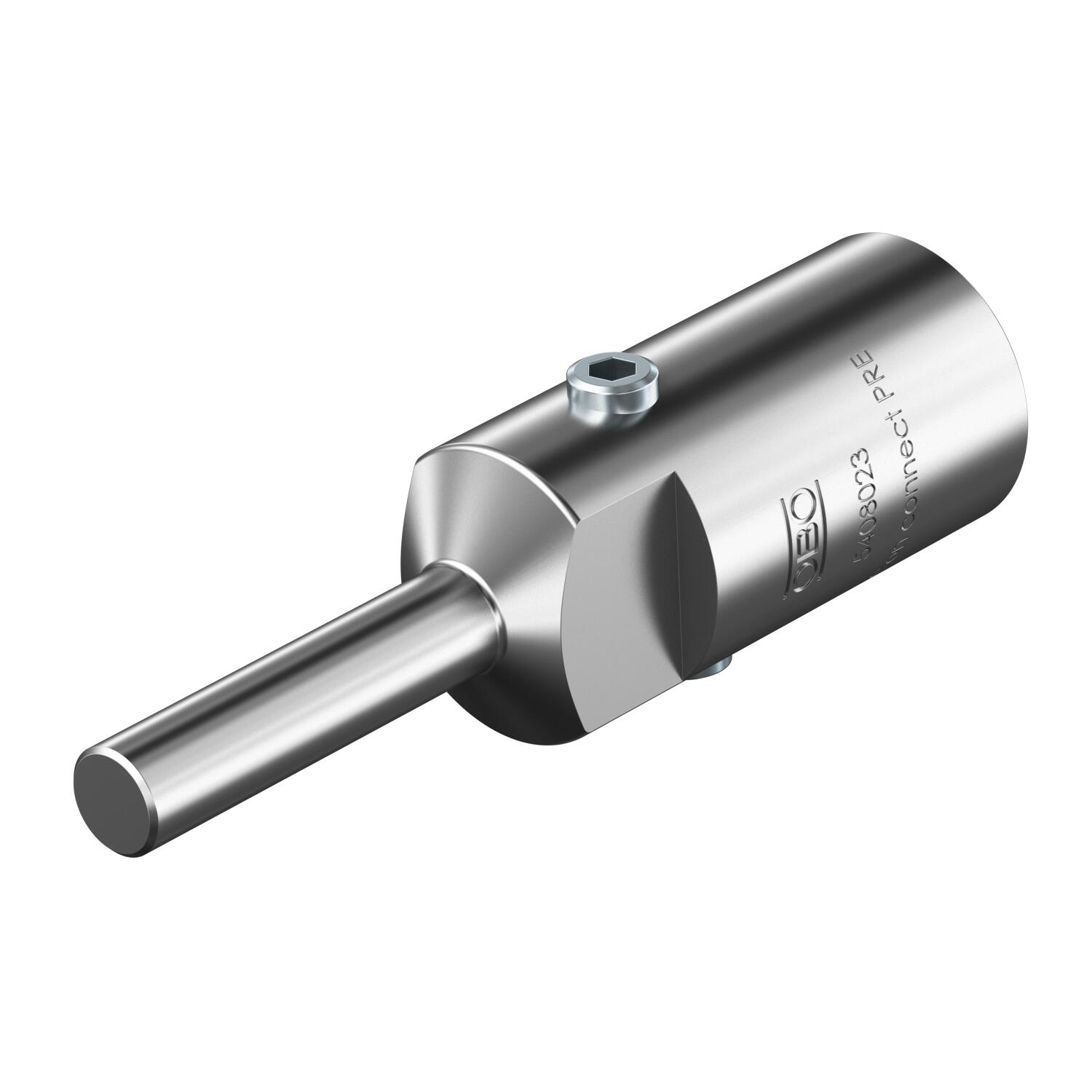

isCon® connection element

Item no. 5408023 | EAN 4012196591688

Item no. / Types

Dimension d min.	28 mm

Lightning current carrying capacity

Fit

Product description

Product description

• For the isCon® Premium conductor
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)

Technical data

Technical data

Clamping range, max.	23 mm
Dimension	Ø23mm
Fit	23 mm

Lightning current carrying capacity	H2/200 kA
Material	Stainless steel

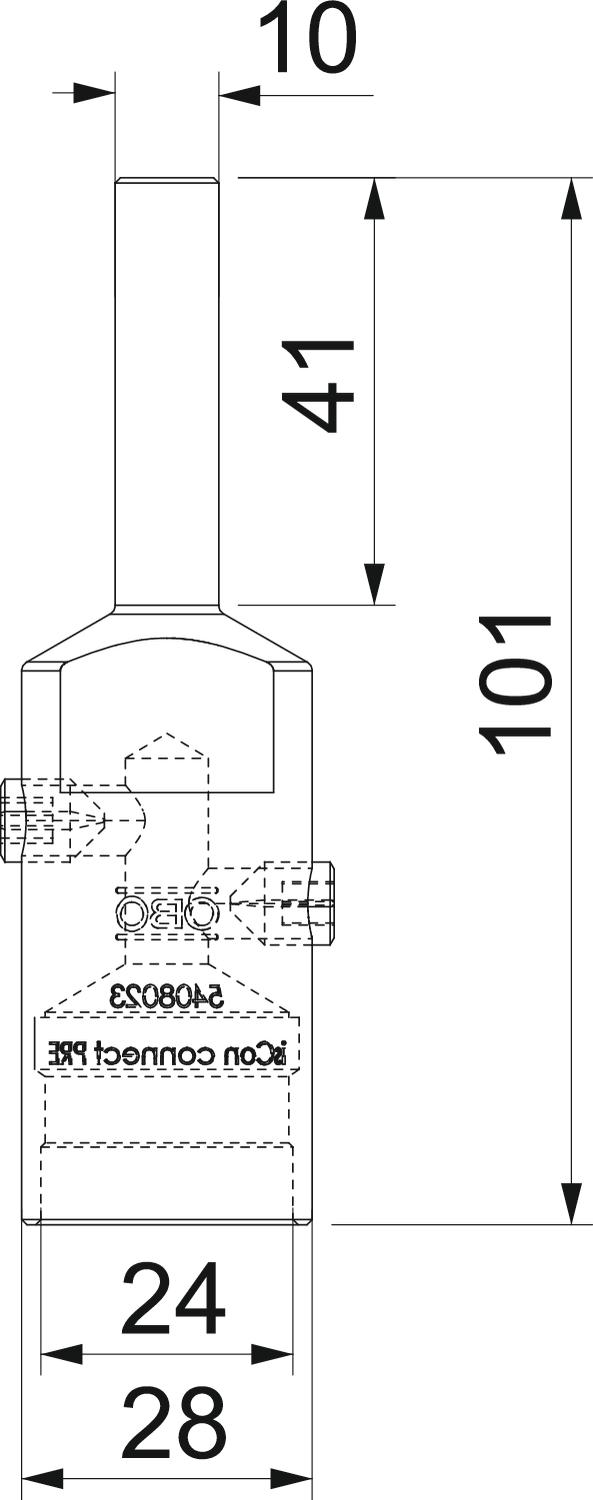

Dimensions

Dimension d min.	28 mm

All types

All types

Types	Dimension d min.	Lightning current carrying capacity	Fit	Item no.	Quantity	SSU
isCon con 2	28 mm	H1/150 kA	20 mm	5408021	piece	2 piece
isCon connect	28 mm	H1/150 kA	23 mm	5408022	piece	2 piece
isCon con PRE	28 mm	H2/200 kA	23 mm	5408023	piece	2 piece
