isCon® conductor, Premium black 23 | 0.9 | 100 | 35

isCon® conductor, Premium black

Item no. 5408018 | EAN 4012196591657

Item no. / Types	5408018 / isCon PR 90 SW

Diameter	23 mm

equivalent separating distance s(e)/m	0.9

Nomal ring (approx. m)	100

Cross-section	35 mm²

Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Premium conductor.

• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 4.2 kWh/m

Technical data

Technical data

Colour	Black

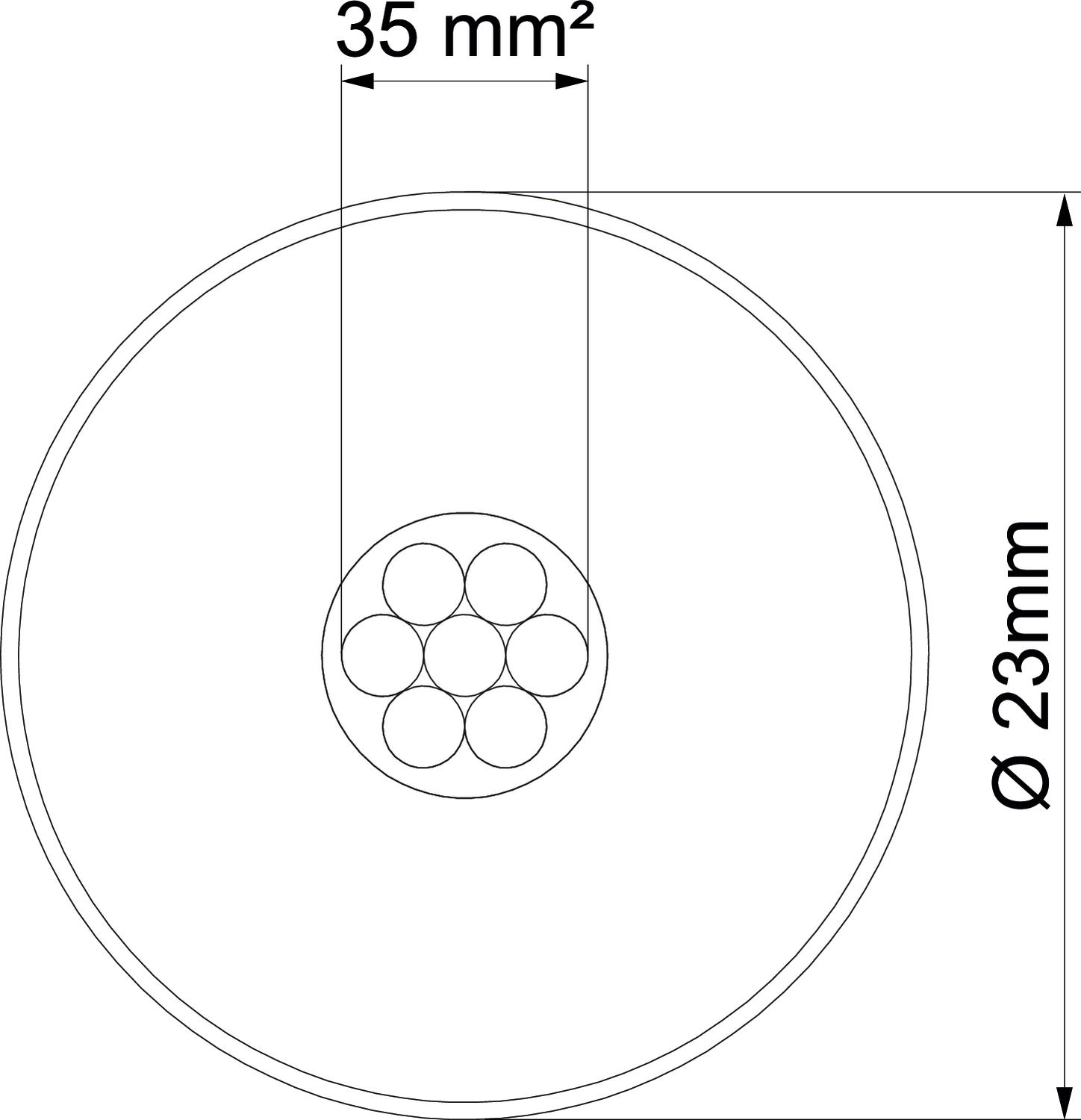

Cross-section	35 mm²
Diameter	23 mm
Dimension	Ø23mm

equivalent separating distance s(e)/m	0,9
Length tolerance ±	5 %
Nomal ring (approx. m)	100

All types

All types

Types	Diameter	equivalent separating distance s(e)/m	Nomal ring (approx. m)	Cross-section	Item no.	Quantity	SSU
isCon PR 90 SW	23 mm	0.9	100	35 mm²	5408018	m	100 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

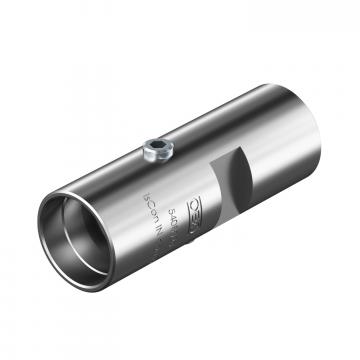

Connection element for installation in the insulated air-termination rod isFang IN	isCon IN con PRE	5408020	piece	1 piece

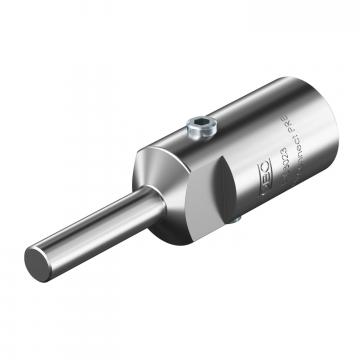

isCon® connection element	isCon con PRE	5408023	piece	2 piece

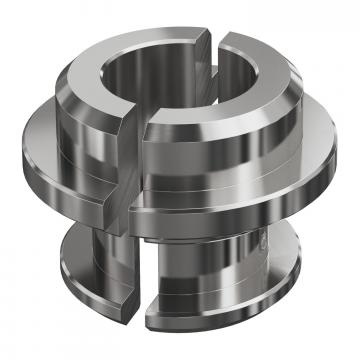

Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod	isCon IN PAE	5408031	piece	1 piece
Potential connection	isCon PAE	5408036	piece	2 piece

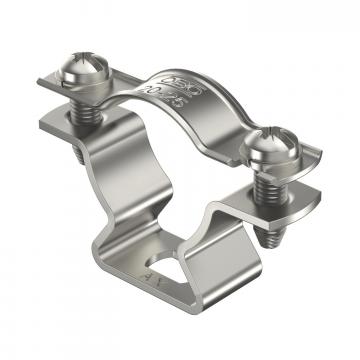

VA cable bracket for isCon® conductor for mounting on roof/wall structures	isCon H VA	5408056	piece	50 piece
