isCon® conductor, Basic black

Item no. 5408014 | EAN 4012196591664

35 mm²
Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Basic conductor.

• Highly voltage-resistant, insulated conductor
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.45 m (air) and se ≤ 0.90 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m


  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour Black

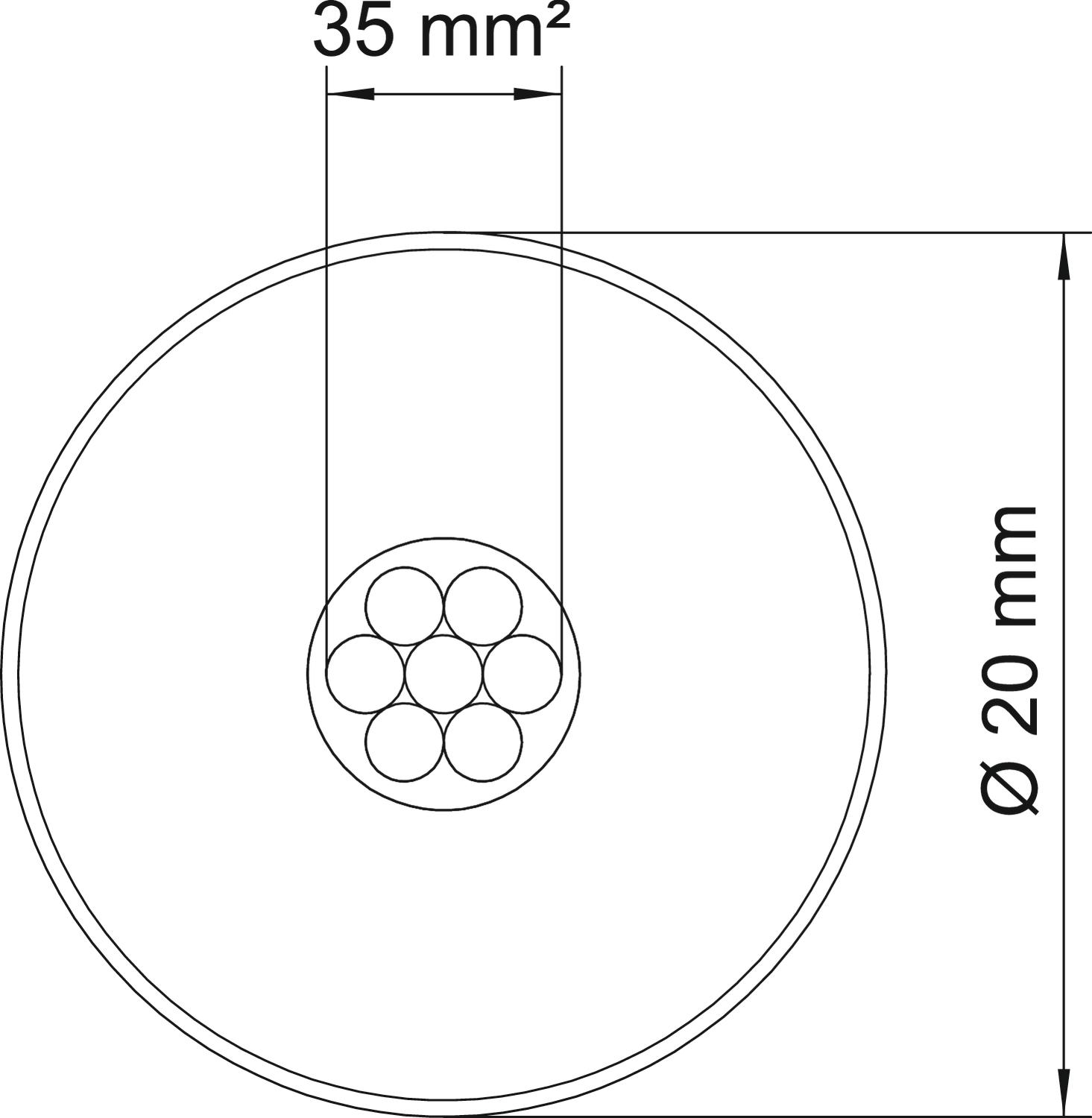

Cross-section 35 mm²
Diameter 20 mm
Dimension Ø20mm
equivalent separating distance s(e)/m 0,45
Length tolerance ± 5 %

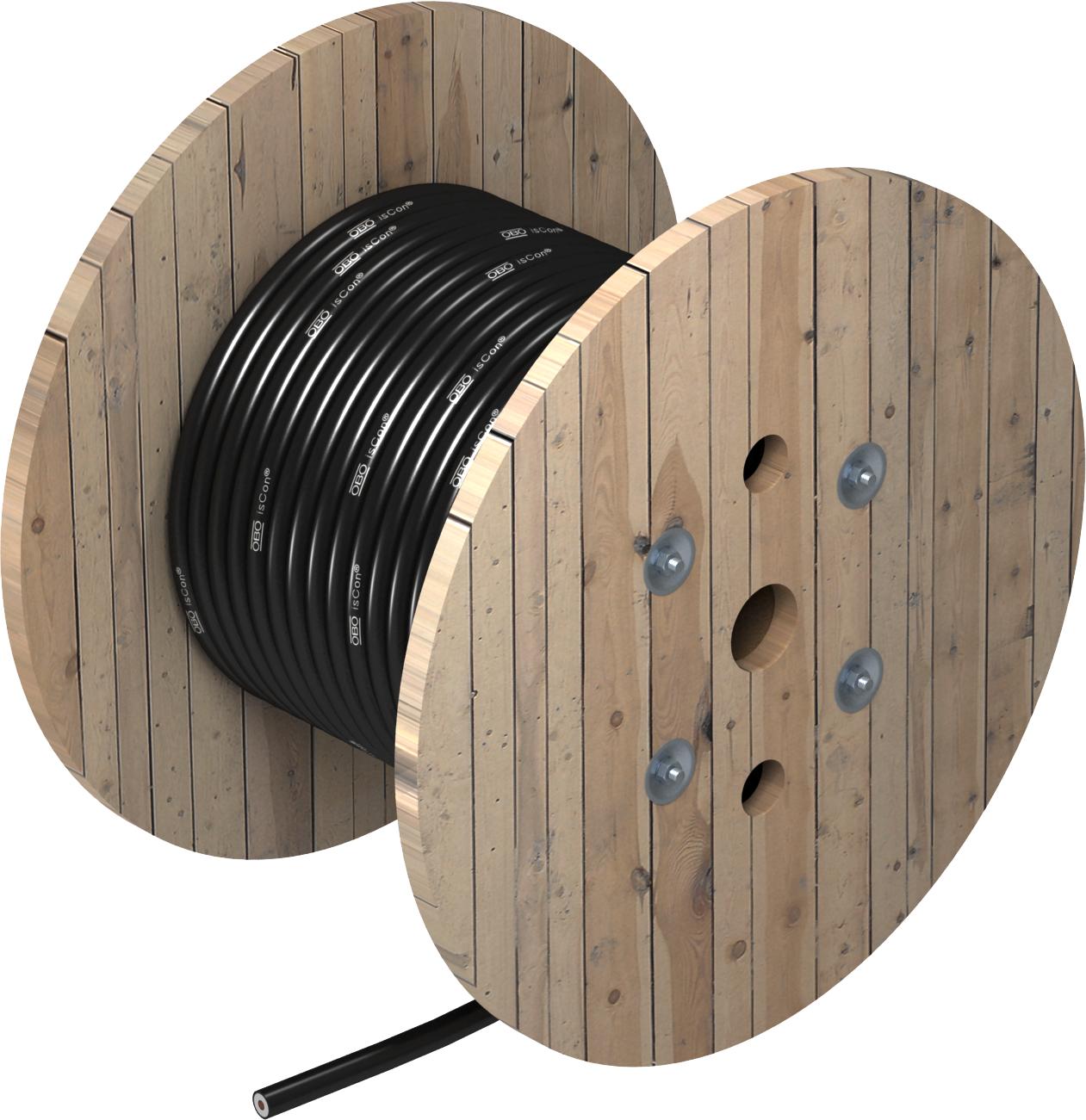

Nomal ring (approx. m) 100
All types

All types

Types Diameter equivalent separating distance s(e)/m Nomal ring (approx. m) Cross-section Item no. Quantity SSU
isCon Pro+ 75 SW 23 mm 0.75 100 35 mm² 5408004
100 m
isCon Pro+ 75 SW 23 mm 0.75 250 35 mm² 5408006
250 m
isCon BA 45 SW 20 mm 0.45 100 35 mm² 5408014
100 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Spacer clip 733 A2 Spacer clip 733 A2 ASL 733 20 A2 1362984
25 piece

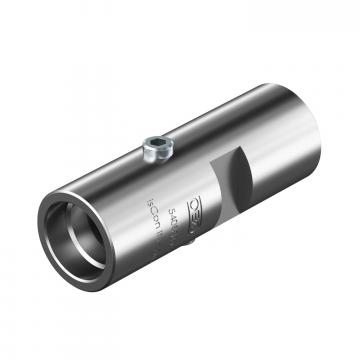

Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN con 2 5408019
1 piece
isCon® connection element isCon® connection element isCon con 2 5408021
2 piece
Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod isCon IN PAE 2 5408032
1 piece
Potential connection Potential connection isCon PAE 5408036
2 piece

Mounting accessories

Products Types Item no. Quantity SSU

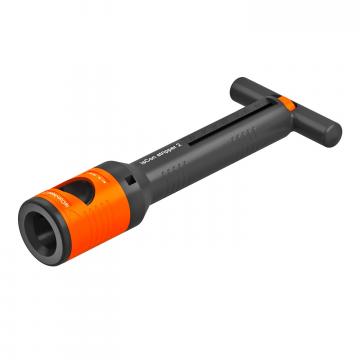

Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 piece
