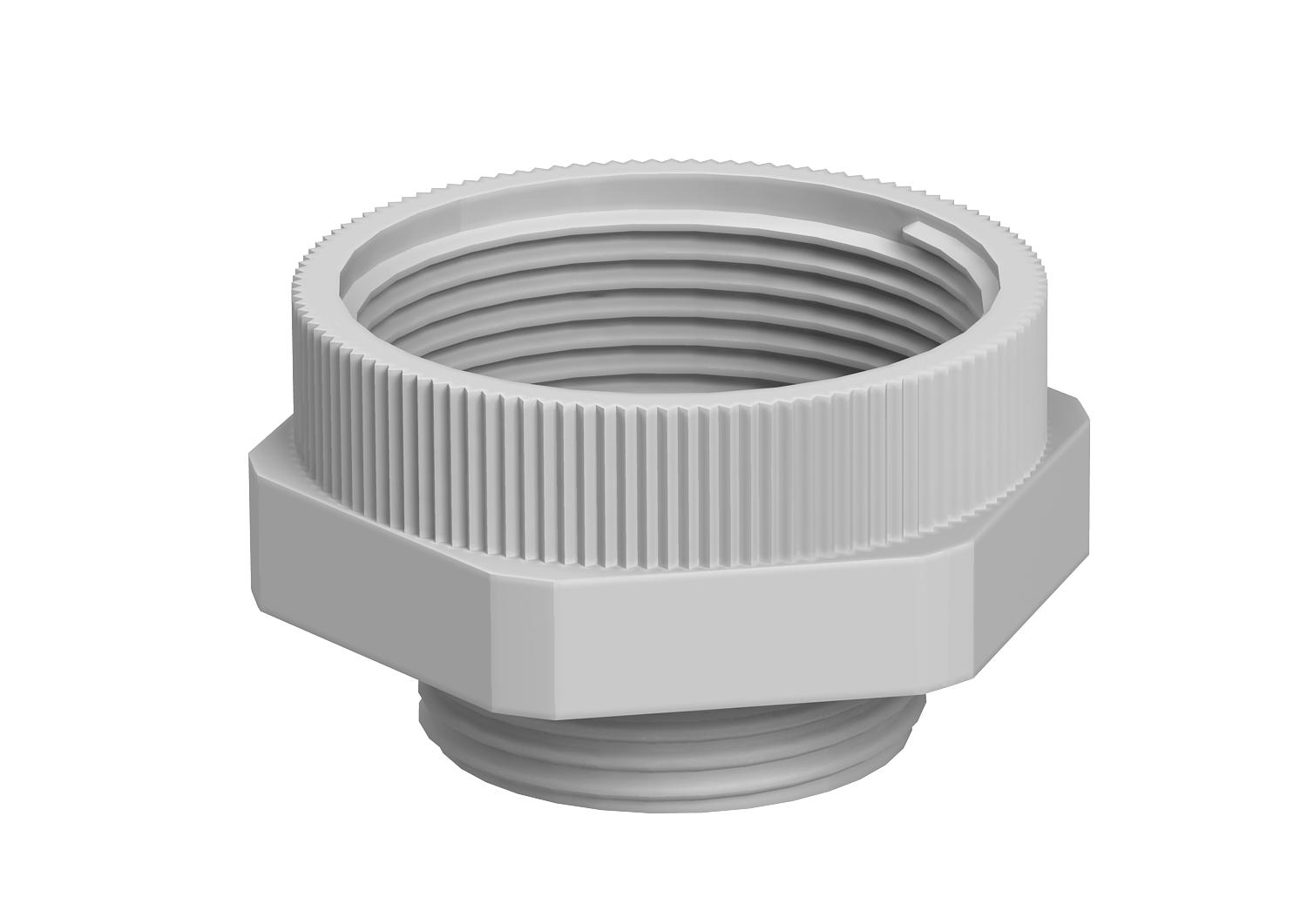

Intermediate expansion connector, metric thread 32 | 40

Intermediate expansion connector, metric thread

Item no. 2031454 | EAN 4012195371939

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

Product description

Product description

Extension with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Technical data

Technical data

Colour	Light grey; RAL 7035

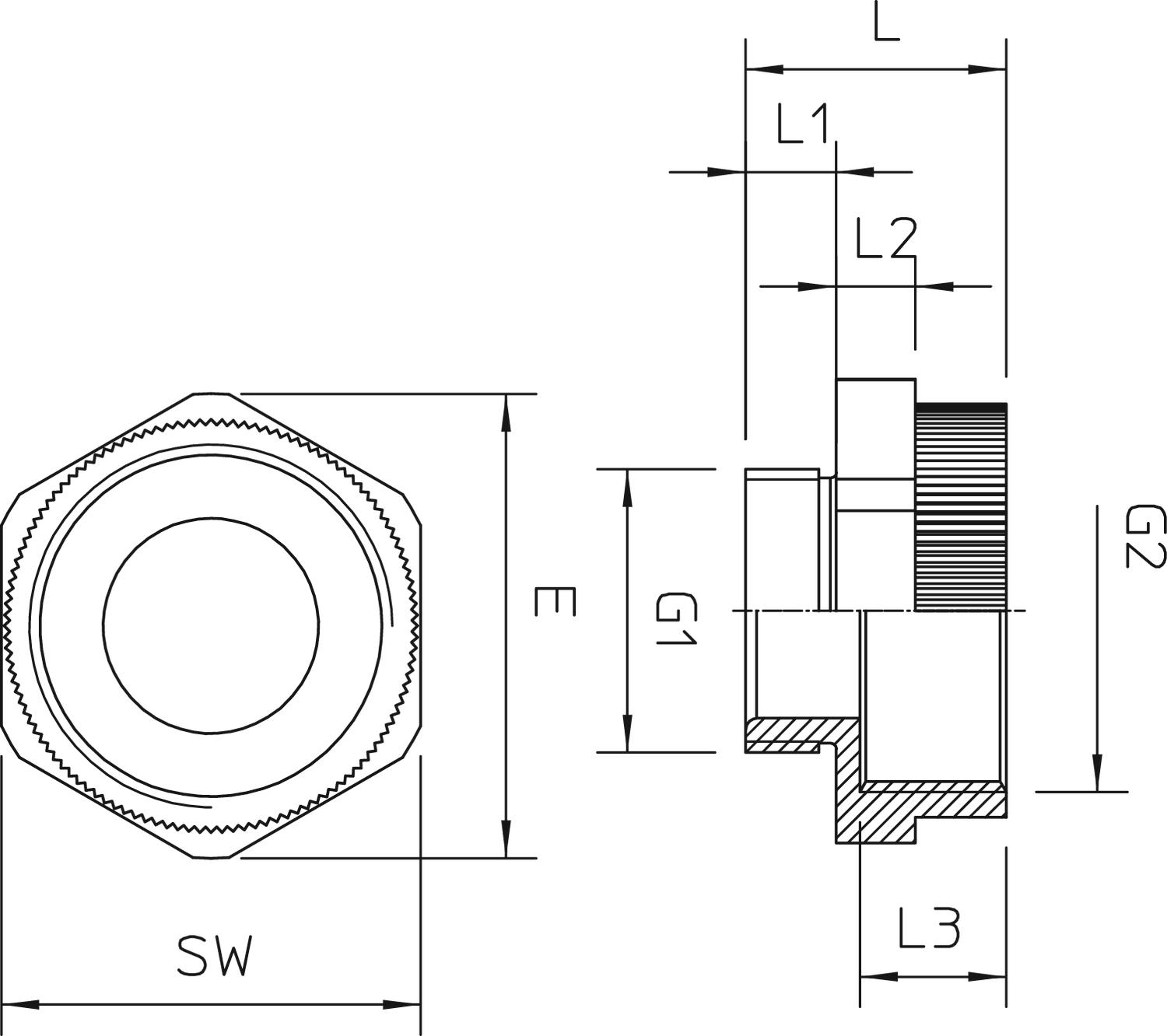

Dimension	M32-M40
Dimension D	26 mm
Dimension E	49,5 mm
Dimension L	25 mm
Dimension L1	10 mm
Dimension L2	7 mm
Dimension L3	12,5 mm

explosion-proof	no
Material	Polyamide
Nickel-plated	no
Thread dimension, metric, external	32
Thread dimension, metric, internal	40
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	45

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	Item no.	Quantity	SSU
107 E M 12-16 PA	12	16	2031450	piece	50 piece
107 E M 16-20 PA	16	20	2031451	piece	50 piece
107 E M 20-25 PA	20	25	2031452	piece	50 piece
107 E M 25-32 PA	25	25	2031453	piece	50 piece
107 E M 32-40 PA	32	40	2031454	piece	25 piece
