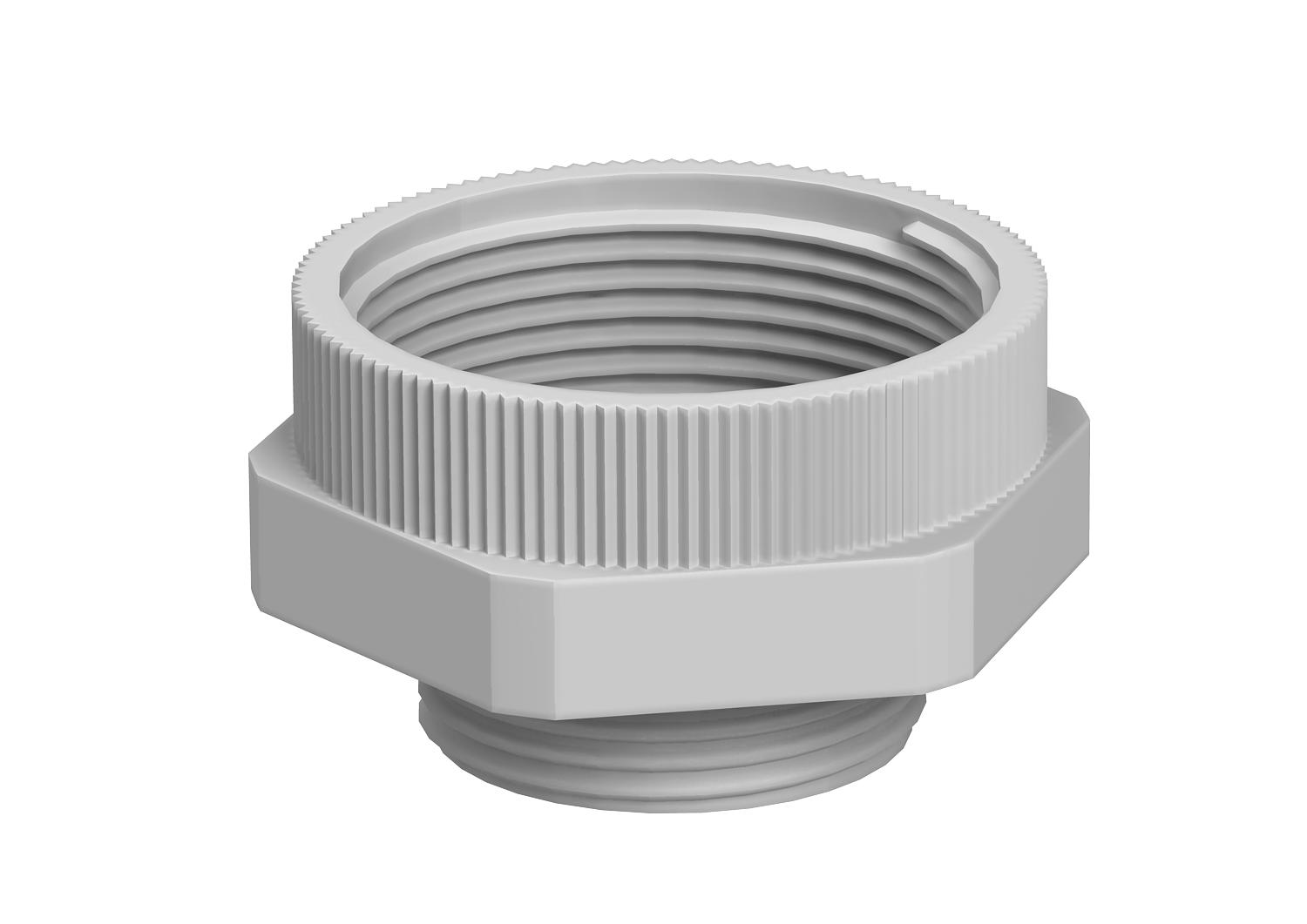

Intermediate expansion connector, metric thread
Item no. 2031452 | EAN 4012195371915
- Product description
-
Product description
Extension with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
-
- Technical data
-
Technical data

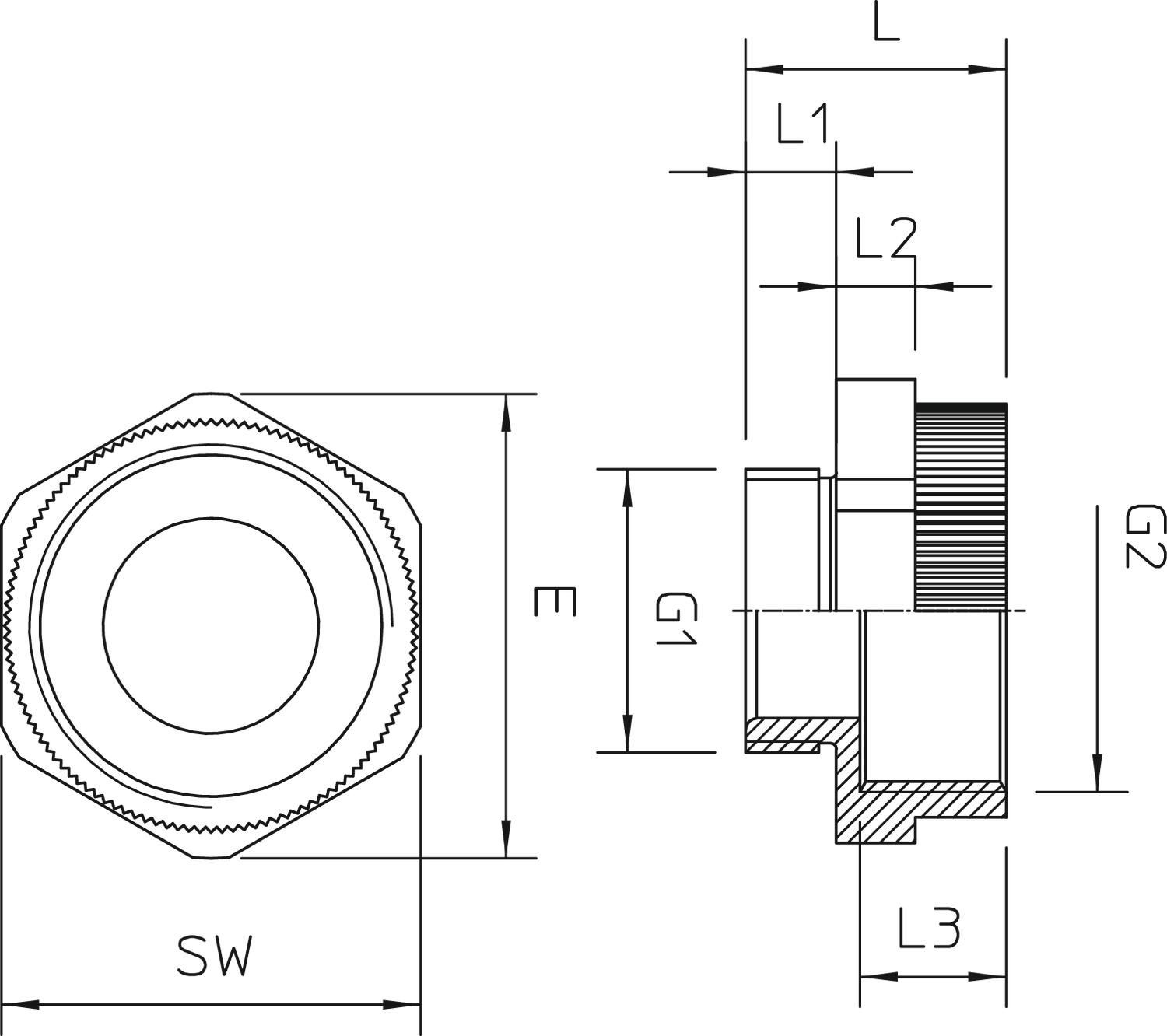

Colour Light grey; RAL 7035 Dimension M20-M25 Dimension D 15 mm Dimension E 33 mm Dimension L 21 mm Dimension L1 8 mm Dimension L2 6 mm Dimension L3 10,5 mm explosion-proof no Material Polyamide Nickel-plated no Thread dimension, metric, external 20 Thread dimension, metric, internal 25 Thread type: External thread Metric Thread type: Internal thread Metric WAF 30 - All types
- Downloads
-
Data sheet 107 E M 20-25 PA / 2031452 , 0.20MB , pdfDeclaration of conformity 107 E M 20-25 PA / 2031452 , 0.67MB , pdfREACH Declaration of conformity 107 E M 20-25 PA / 2031452 , 0.12MB , pdfRoHS Declaration of conformity 107 E M 20-25 PA / 2031452 , 0.12MB , pdf
