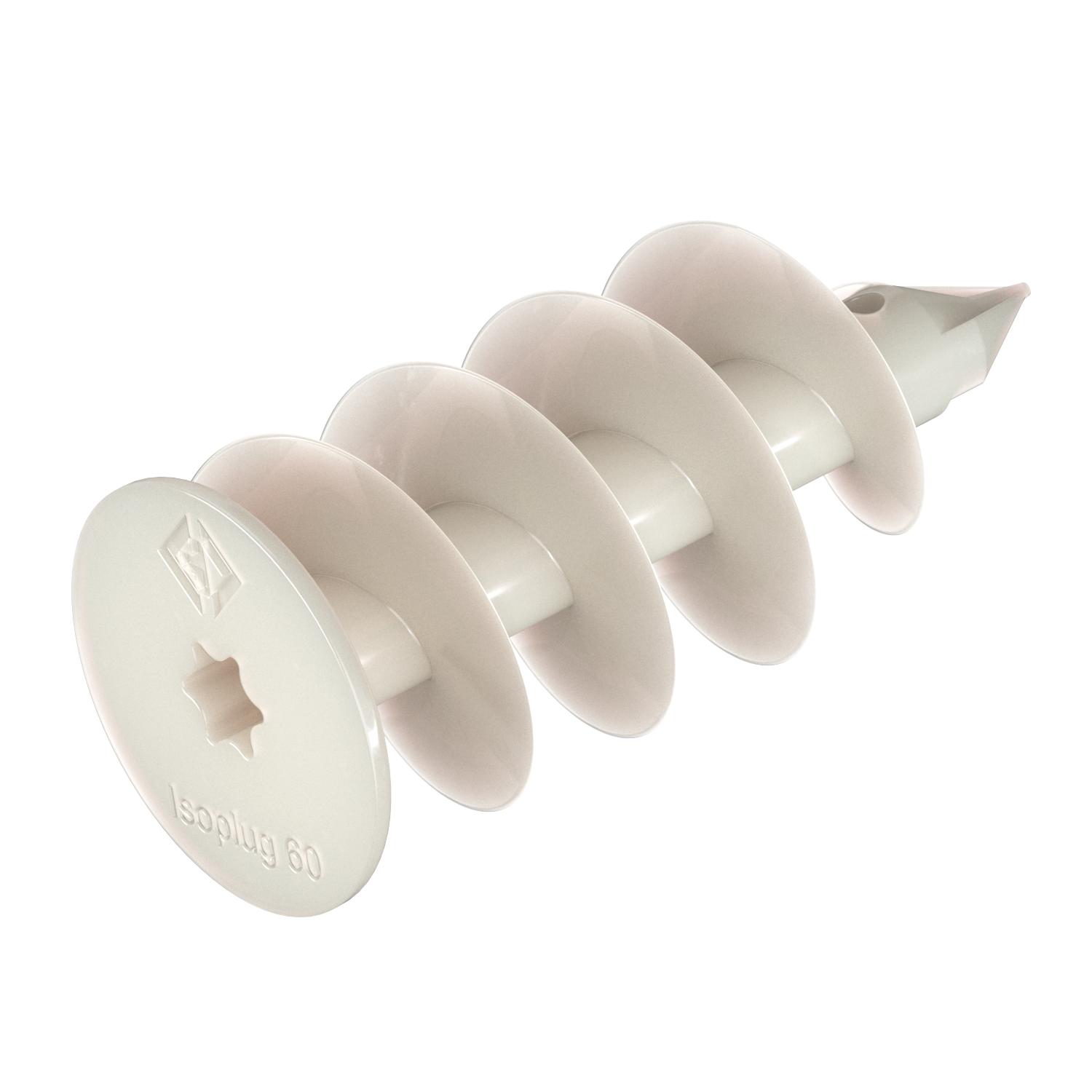

Insulation anchor
Item no. 2347605 | EAN 4012197273934
- Product description
-
Product description
Insulation anchor for universal lightweight fastening in plastered heat composite systems. With self-tapping point.
-
- Technical data
-
Technical data

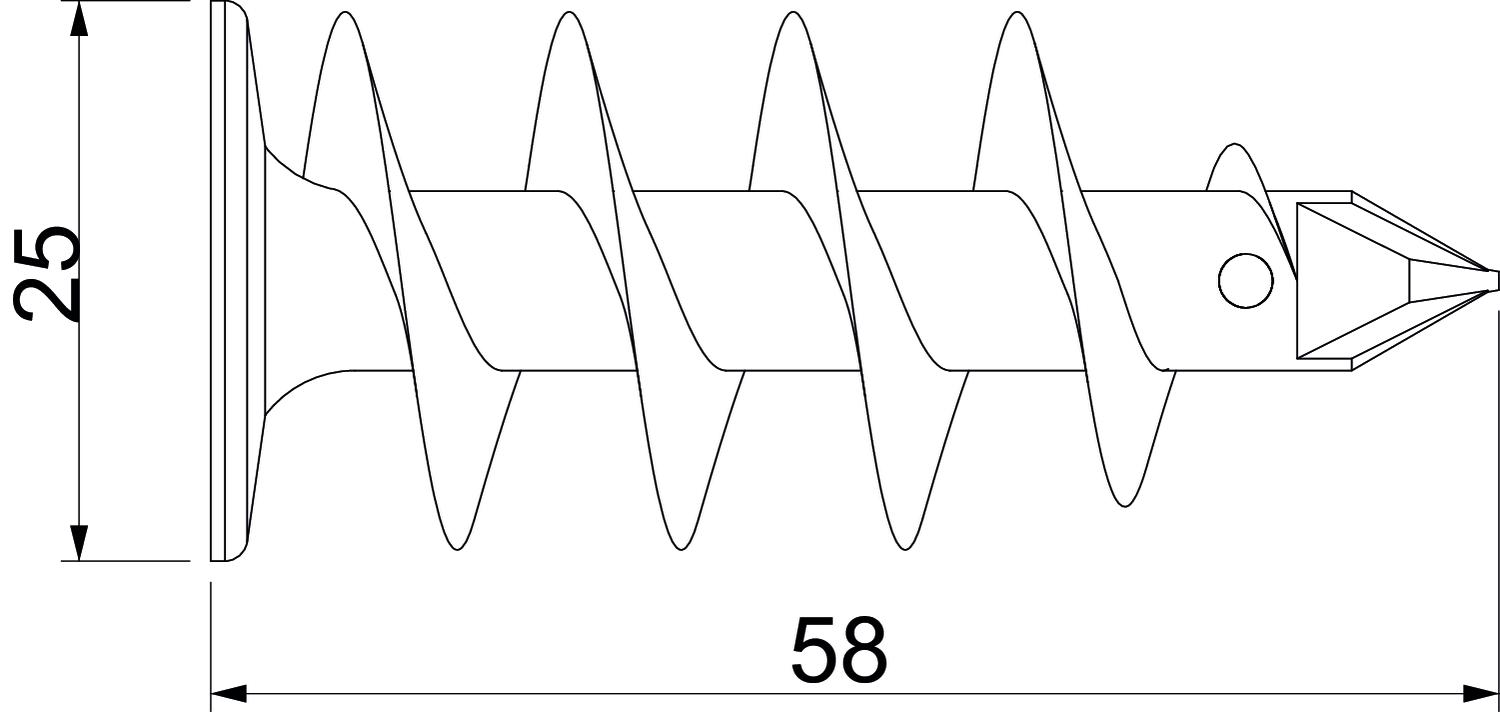

Breaking load 0,05 kN Diameter 8 mm Dimension D 25 mm Drill hole depth 62 mm Halogen-free yes Length 58 mm Material Polyamide Pull-out value 50 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Version for Spiral anchor With bolts no Wood screws 4,5 - 5 - All types
- Downloads
-
Data sheet DSDT 60 / 2347605 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity DSDT 60 / 2347605 , 0.12MB , pdfRoHS Declaration of conformity DSDT 60 / 2347605 , 0.13MB , pdf
