Insulating rod

Item no. 5408107 | EAN 4012195613206

Item no. / Types

Length

Nominal size Ø

Product description

Product description

• For the erection of insulated air-termination systems to VDE 0185-305 (IEC 62305)

• UV-resistant and weatherproof

• Continuous temperature range -50 °C to +100°C

• Material factor km = 0.7

Technical data

Technical data

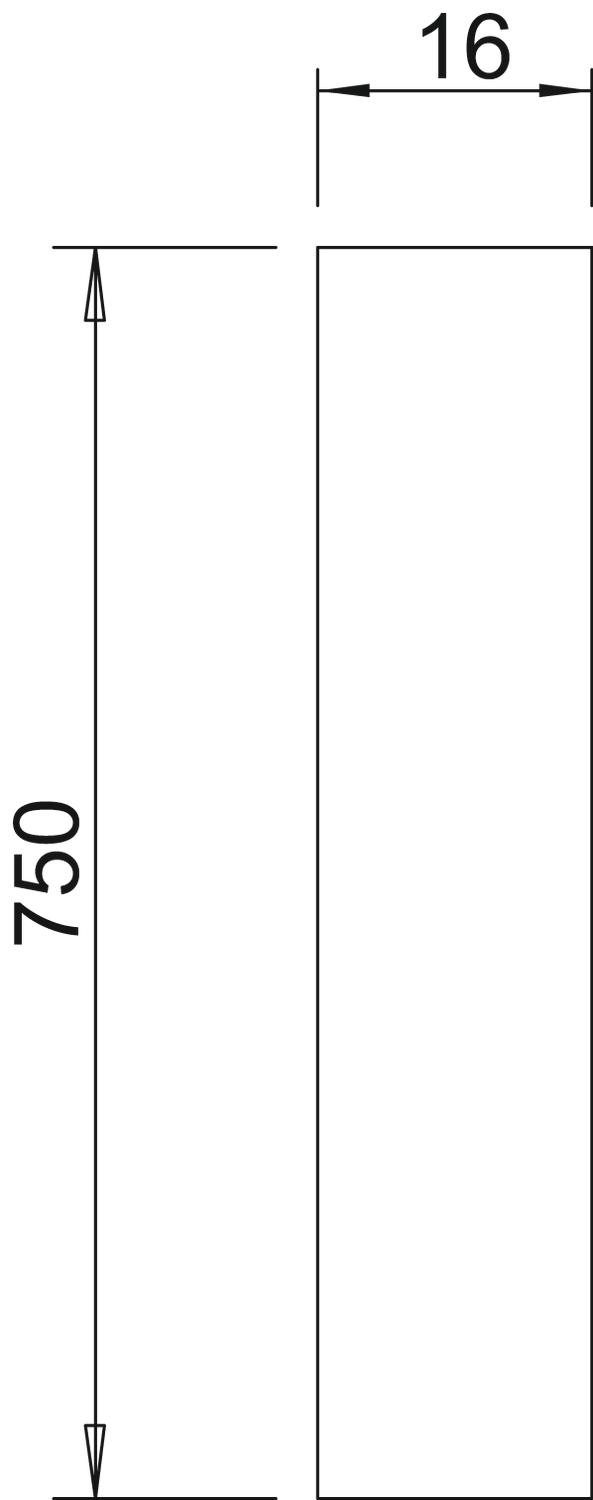

Dimension	750mm
Dimension D	16 mm
Dimension L	750 mm
Length	750 mm

Material	Fibre-glass-reinforced plastic
Nominal size Ø	16 mm
Version for	Air-termination rod

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 20-3000	3000 mm	20 mm	5408105	piece	5 piece
101 16-750	750 mm	16 mm	5408107	piece	5 piece
101 16-1500	1500 mm	16 mm	5408108	piece	5 piece
101 16-3000	3000 mm	16 mm	5408109	piece	5 piece
101 20-6000	6000 mm	20 mm	5408148	piece	5 piece
