- Product description
-
Product description

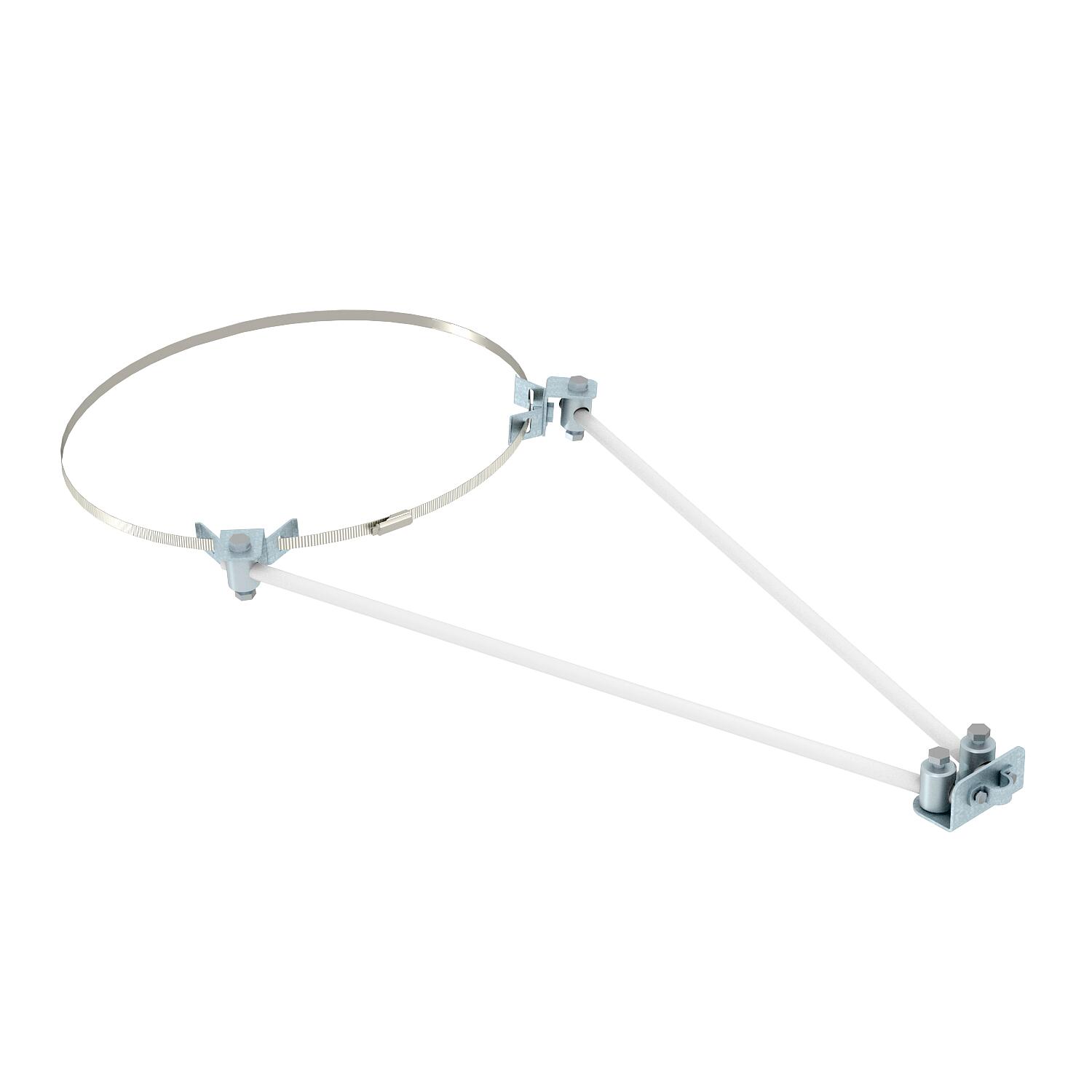

Pipe V fastening for an insulated air-termination unit at the separating distance s.
• Mounting on pipes with two pipe clips
• Including 2 m tightening strip and tension jack
• For maintenance of the separation distance to electrically conductive parts
according to VDE 0185-305-3 (IEC 62305-3)
• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
- Technical data
-
Technical data
Dimension 900x220x70 Dimensions

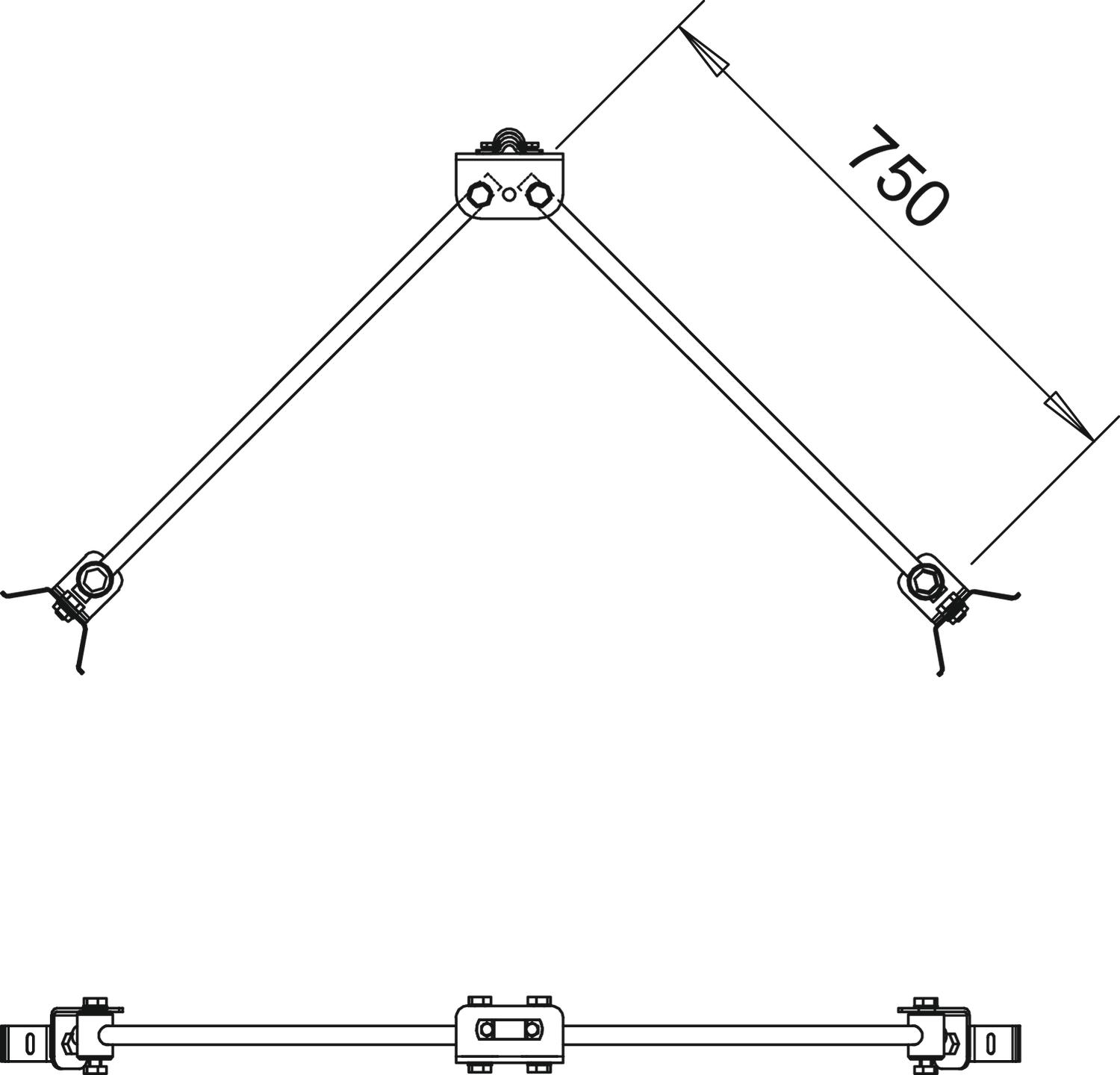

Dimension d min. 16 mm Dimension L 750 mm - All types
- Downloads
-
Data sheet 101 VRS-16 / 5408982 , 0.13MB , pdfDeclaration of conformity 101 VRS-16 / 5408982 , 0.06MB , pdf
