Insulated lightning protection set, IR fastening
Item no. 5408980 | EAN 4012195613343
- Product description
-
Product description

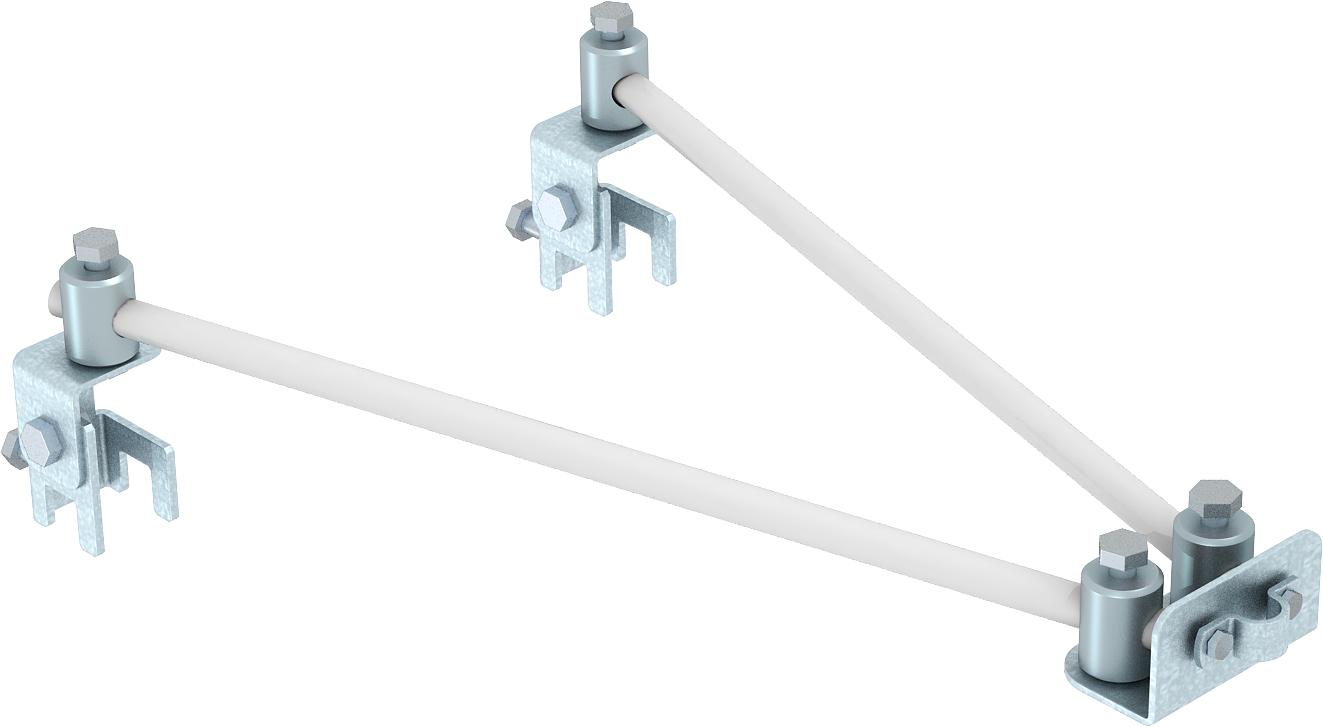

Fold fastening for an insulated air-termination unit at the separating distance s.
• Mounting on folds with a thickness of up to 20 mm
• For maintenance of the separation distance to electrically conductive parts
according to VDE 0185-305-3 (IEC 62305-3)
• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
- Technical data
-
Technical data

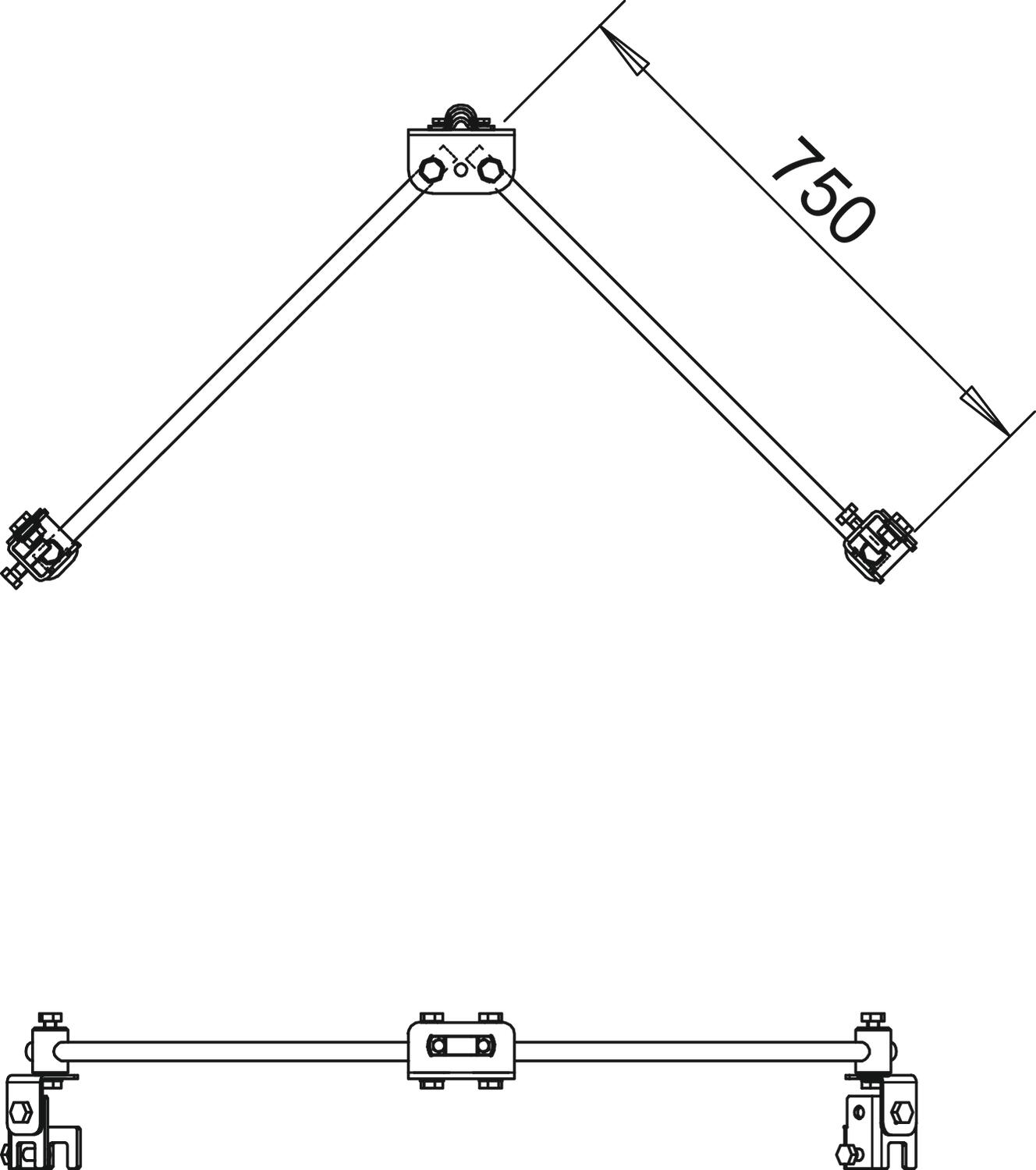

Clamping range, max. 20 mm Clamping range, min. 4 mm Dimension 800x210x130 Dimension d min. 16 mm Dimension L 750 mm - All types
