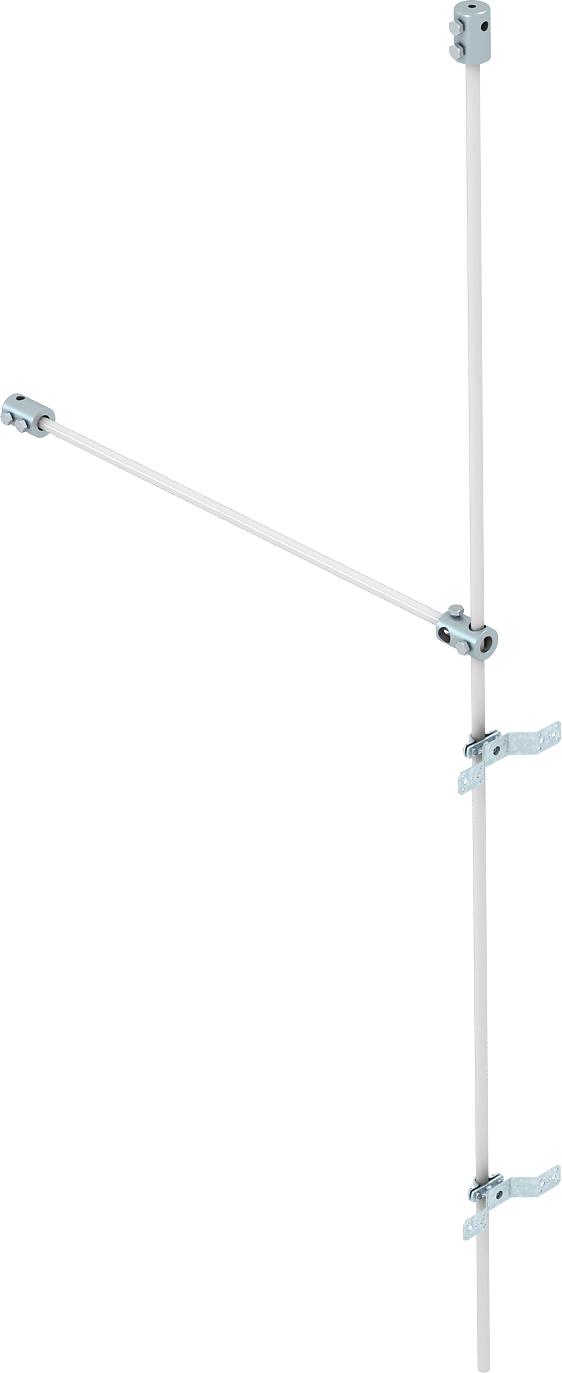

Insulated lightning protection set, 3-corner fastening
Item no. 5408976 | EAN 4012195613329
- Product description
-
Product description
3-corner fastening for an insulated air-termination unit at the separating distance s.
• Mounting on walls and roof structures with two fastening plates
• For maintenance of the separation distance to electrically conductive parts
according to VDE 0185-305-3 (IEC 62305-3)
• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
- Technical data
-
Technical data

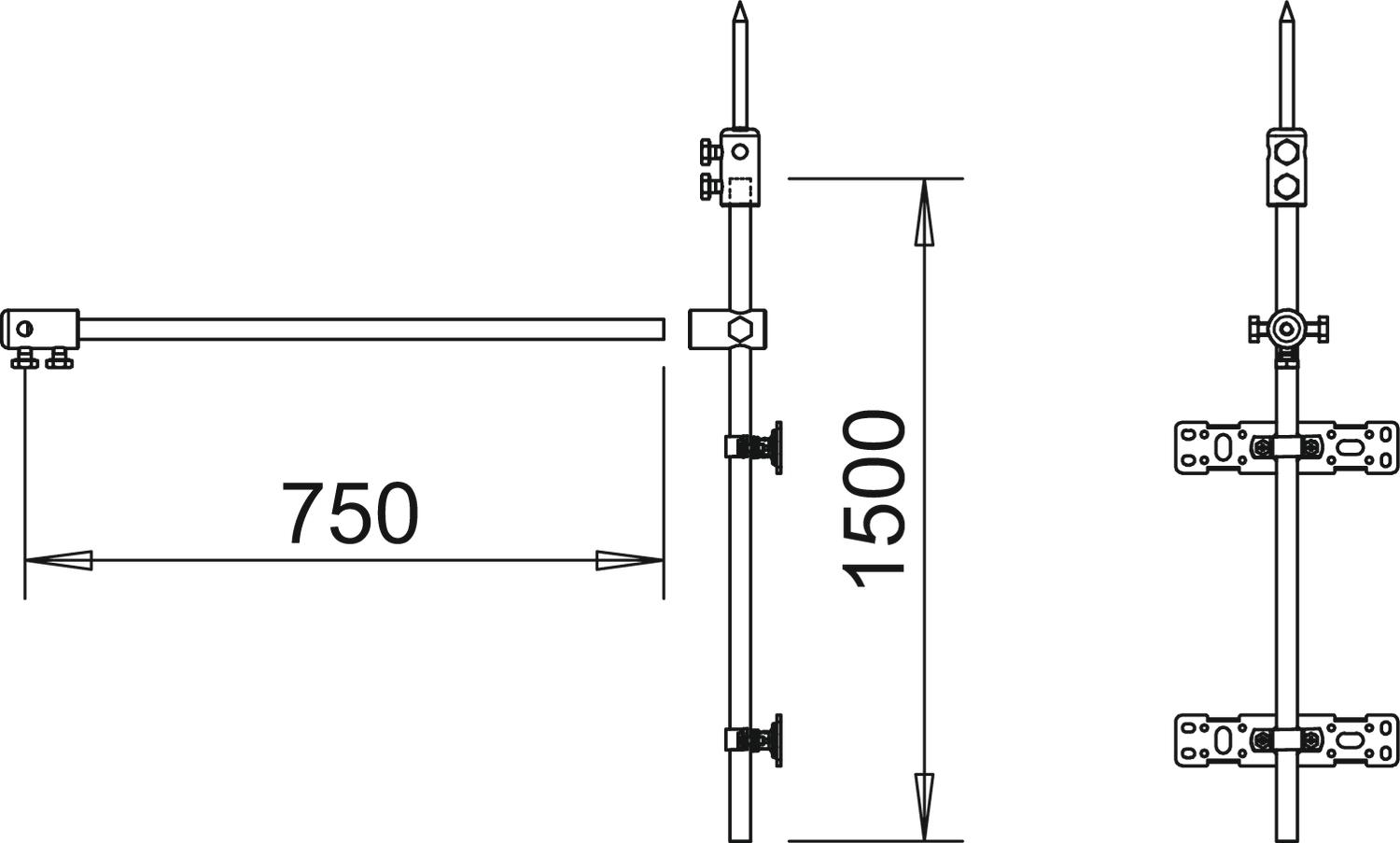

Dimension 1500x750x175 Dimension d min. 16 mm Dimension H 1500 mm Dimension L 750 mm - All types
