Insulated air-termination rod for inner-routed isCon® conductor with side exit 10000 |

Insulated air-termination rod for inner-routed isCon® conductor with side exit

Item no. 5408880 | EAN 4012196647835

Item no. / Types

Length

Product description

Product description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

Technical data

Connection	Round conductor

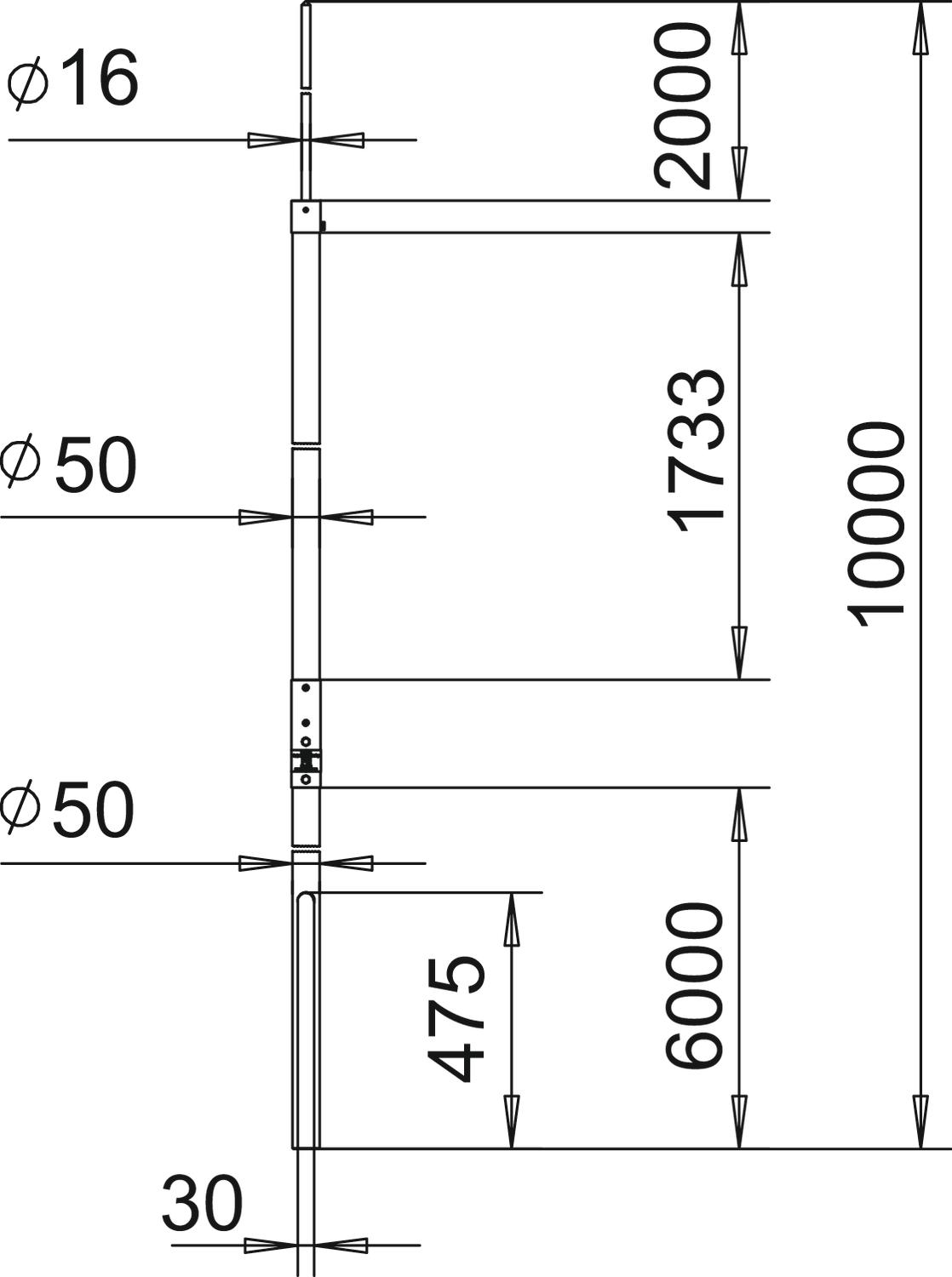

Dimension	10000mm
Dimension A	6000 mm
Dimension B	2000 mm
Dimension d min.	50 mm
Dimension H	1733 mm

Dimension L	10000 mm
High voltage-resistant, insulated version	yes
Length	10000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.	Quantity	SSU
isFang IN-A L4	4000 mm	5408874	piece	1 piece
isFang IN-A L6	6000 mm	5408876	piece	1 piece
isFang IN-A L8	8000 mm	5408878	piece	1 piece
isFang IN-A L10	10000 mm	5408880	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227	piece	1 piece
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238	piece	10 piece
isCon® conductor, Professional black	isCon Pro 75 SW	5408008	m	100 m
isCon® connection element	isCon connect	5408022	piece	2 piece
Connection element for installation in the insulated interception rod isFang IN	isCon IN connect	5408024	piece	1 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod	isCon IN PAE	5408031	piece	1 piece
isFang tripod	isFang 3B-100	5408968	piece	1 piece
