Insulated air-termination rod for inner-routed isCon® conductor

Item no. 5408856 | EAN 4012196647859

Product description

Product description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

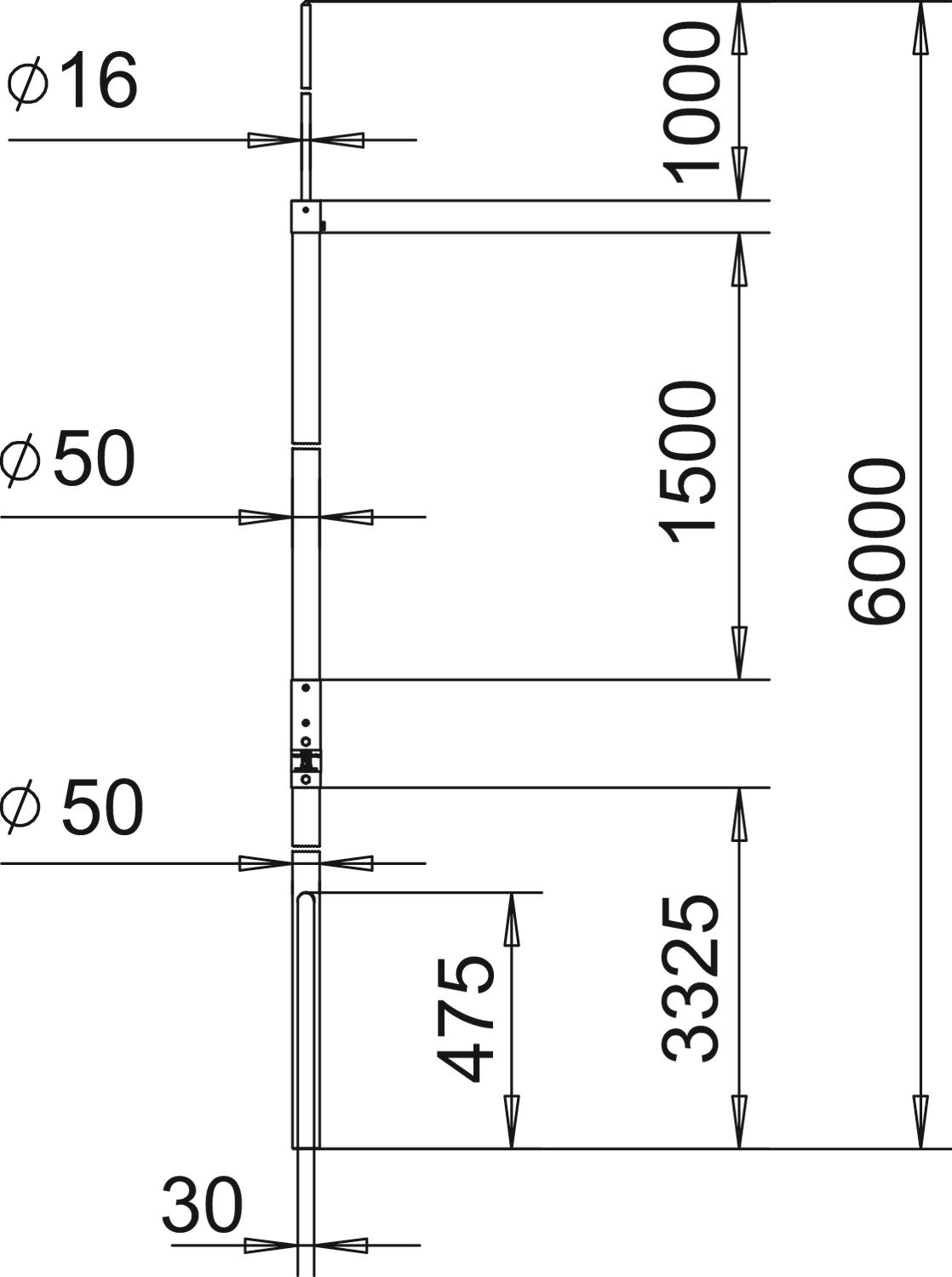

Dimension 6000mm
Dimension A 3325 mm
Dimension B 1000 mm
Dimension d min. 50 mm
Dimension H 1500 mm
Dimension L 6000 mm
High voltage-resistant, insulated version yes
Length 6000 mm
Material Fibre-glass-reinforced plastic
Version for Air-termination rod
All types

All types

Types Length Item no. Quantity SSU
isFang IN L4 4000 mm 5408854
1 piece
isFang IN L6 6000 mm 5408856
1 piece
isFang IN L8 8000 mm 5408858
1 piece
isFang IN L10 10000 mm 5408860
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Concrete base for FangFix system, min. 16 kg Concrete base for FangFix system, min. 16 kg F-FIX-S16 5403227
1 piece
Base for FangFix system 16 kg for mounting the isFang tripod Base for FangFix system 16 kg for mounting the isFang tripod F-FIX-B16 3B 5403238
10 piece
isCon® conductor, Professional black isCon® conductor, Professional black isCon Pro 75 SW 5408008
100 m
isCon® connection element isCon® connection element isCon connect 5408022
2 piece
Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN connect 5408024
1 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod isCon IN PAE 5408031
1 piece
isFang tripod isFang tripod isFang 3B-100 5408968
1 piece
Downloads

Download

Download

isFang IN L6 / 5408856
Download
