Insulated air-termination rod for inner-routed isCon conductor 10000 |

Insulated air-termination rod for inner-routed isCon conductor

Item no. 5408870 | EAN 4012196219407

Item no. / Types

Length

Product description

Product description

• For installation of the OBO isCon® Pro+ conductor in the pipe

• For mounting on the building structure with isFang support

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

Technical data

Connection	Round conductor

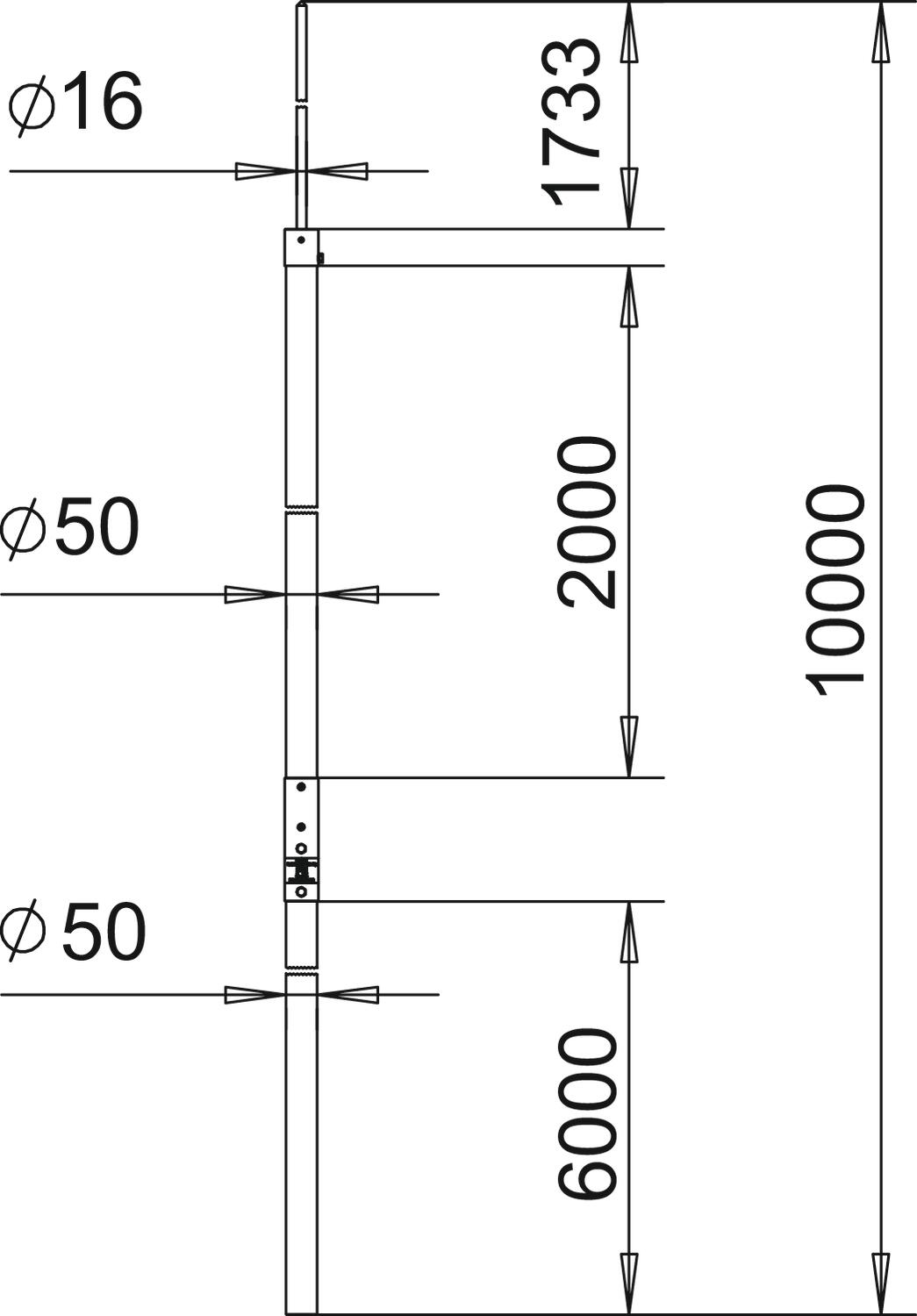

Dimension	10000mm
Dimension A	6000 mm
Dimension B	2000 mm
Dimension d min.	50 mm
Dimension H	1733 mm

Dimension L	10000 mm
High voltage-resistant, insulated version	yes
Length	10000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.	Quantity	SSU
isFang IN 8000	8000 mm	5408868	piece	1 piece
isFang IN 10000	10000 mm	5408870	piece	1 piece
isFang IN 4000	4000 mm	5408934	piece	1 piece
isFang IN 6000	6000 mm	5408936	piece	1 piece
