- Product description
-
Product description

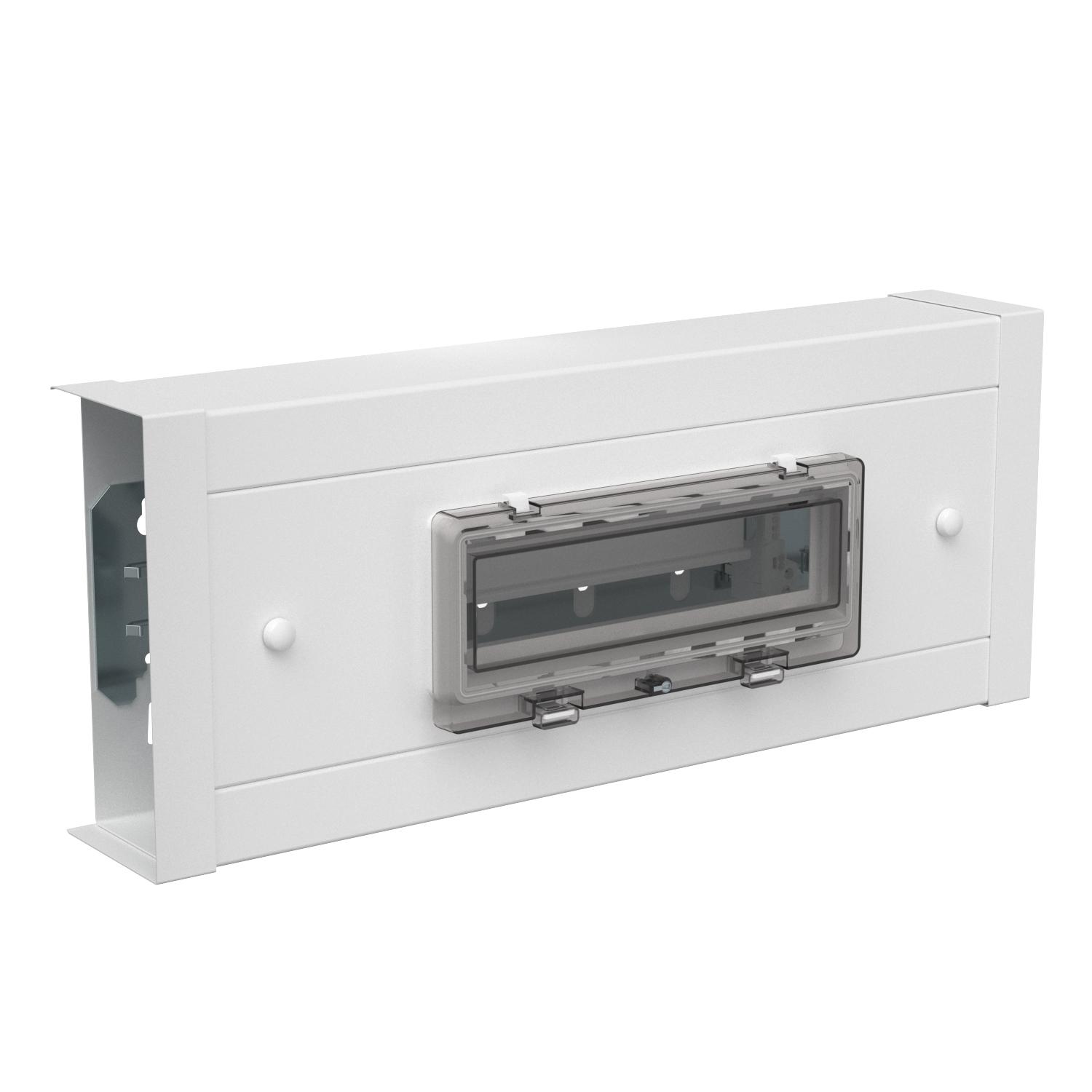

Installation unit made of sheet steel for installation in the trunking section of device installation trunking of the corresponding system size.
Acceptance of series-mounted devices with a total width of 12 PUs on hat rails. Incl. N and PE rails with screwless terminals. The foldable transparent hood can be locked.
- Technical data
-
Technical data
Cable entry yes Colour Pure white; RAL 9010 Dimension 115x210x500 DIN rail yes Extension option no Halogen-free yes Material Steel Number of rows 1 Number of units 12 Suitable for duct depth 90 Surface Powder-coated Transparent lid yes Type of cover Transparent With mounting plate no Dimensions

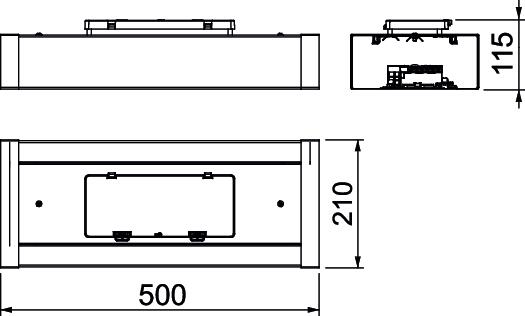

Height 115 mm Length 500 mm Width 210 mm - All types
- Downloads
-
Data sheet IKR12RW90210 / 6288336 , 0.27MB , pdfDeclaration of conformity IKR12RW90210 / 6288336 , 0.13MB , pdfUK Declaration of Conformity IKR12RW90210 / 6288336 , 0.14MB , pdfMounting instructions Mounting instructions, IKR12 , 0.20MB , pdf
