Industrial vertical cable ladder, 6 m C40 200 |
morepic-1 morepic-2 video-1 video-2

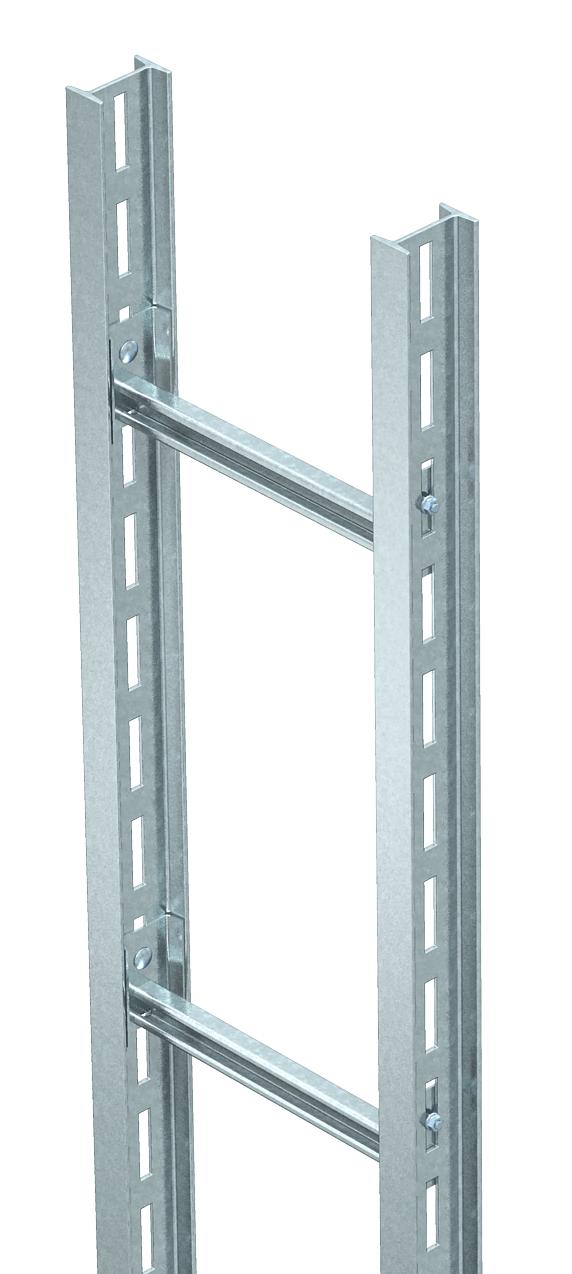

Industrial vertical cable ladder, 6 m C40

Item no. 6013384 | EAN 4012196358632

Product description
Product description
Vertical ladder of side height 80 mm with screwed-in rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • I support

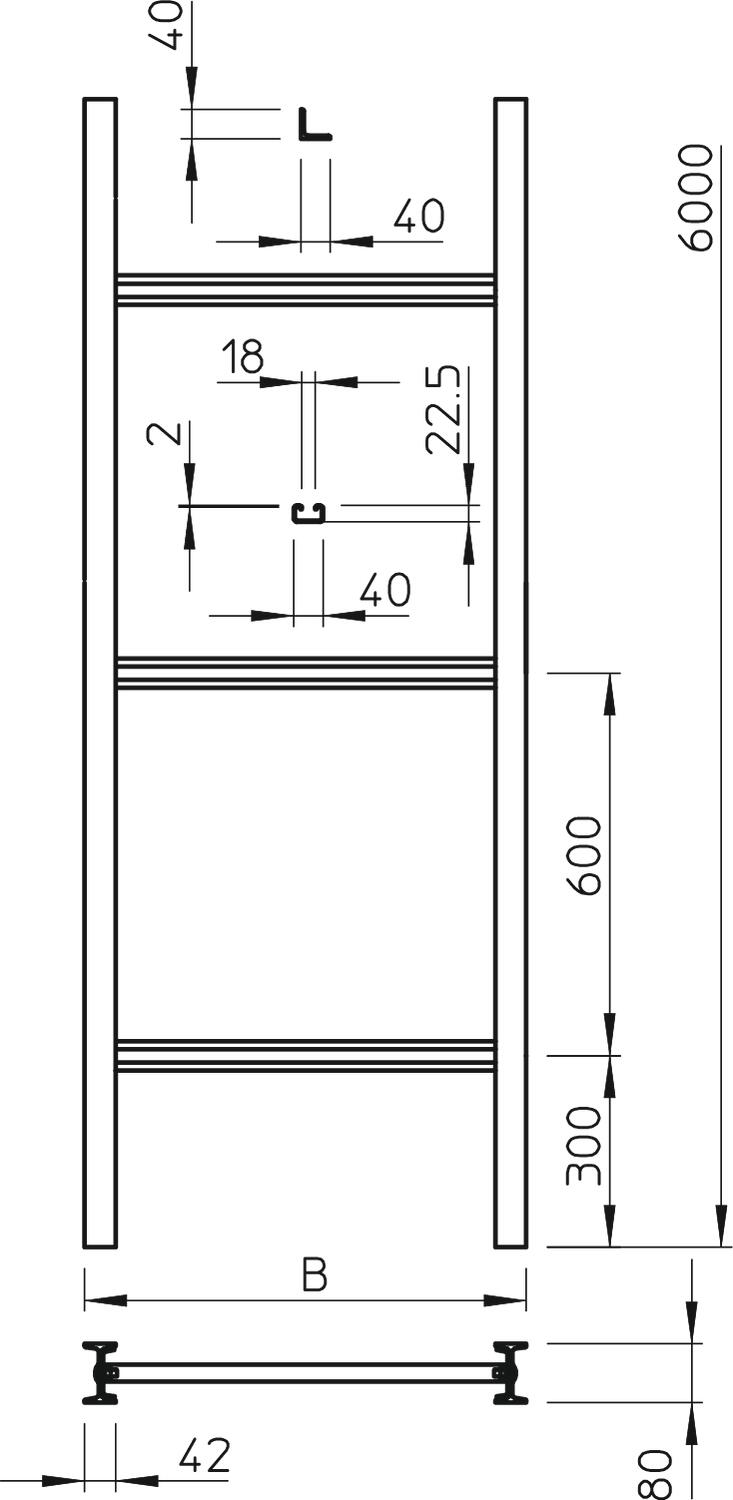

Technical data

Technical data

Colour zinc
Dimension 200x6000
Dimension B 200 mm
Height 80 mm
Length 6000 mm
Maintain electrical functions no
Material Steel
Rung distance 600 mm
Rung slot dimension 18,00
Rustproof steel, pickled no
Side perforation yes
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Width 200 mm
All types

All types

Types Width Item no. Quantity SSU
SLS 80 C40 2 FT 200 mm 6013384
6 m
SLS 80 C40 3 FT 300 mm 6013392
6 m
SLS 80 C40 4 FT 400 mm 6013406
6 m
SLS 80 C40 5 FT 500 mm 6013414
6 m
SLS 80 C40 6 FT 600 mm 6013422
6 m
SLS 80 C40 7 FT 700 mm 6013430
6 m
SLS 80 C40 8 FT 800 mm 6013449
6 m
SLS 80 C40 9 FT 900 mm 6013457
6 m
SLS 80 C40 10 FT 1000 mm 6013465
6 m
SLS 80 C40 11 FT 1100 mm 6013473
6 m
SLS 80 C40 12 FT 1200 mm 6013481
6 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

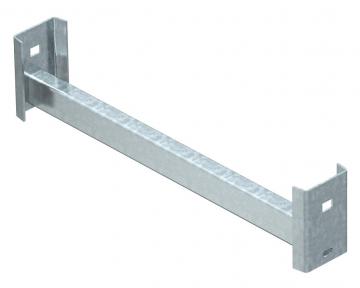

Rung CK 40 Rung CK 40 CK 40 20 FT 6008224
1 piece
I support connector VIS 8 FT I support connector VIS 8 FT VIS 8 FT 6018300
10 piece
Mounting angle BW 80 Mounting angle BW 80 BW 80 55 FT 6019528
10 piece
End cap End cap IS 8 KS OR 6338519
20 piece
