Industrial pole profile, type ISS160160IP4

Item no. 6290404 | EAN 4012196191468

Item no. / Types	6290404 / ISS160160IP4 EL

Length	4000 mm

Product description

Product description

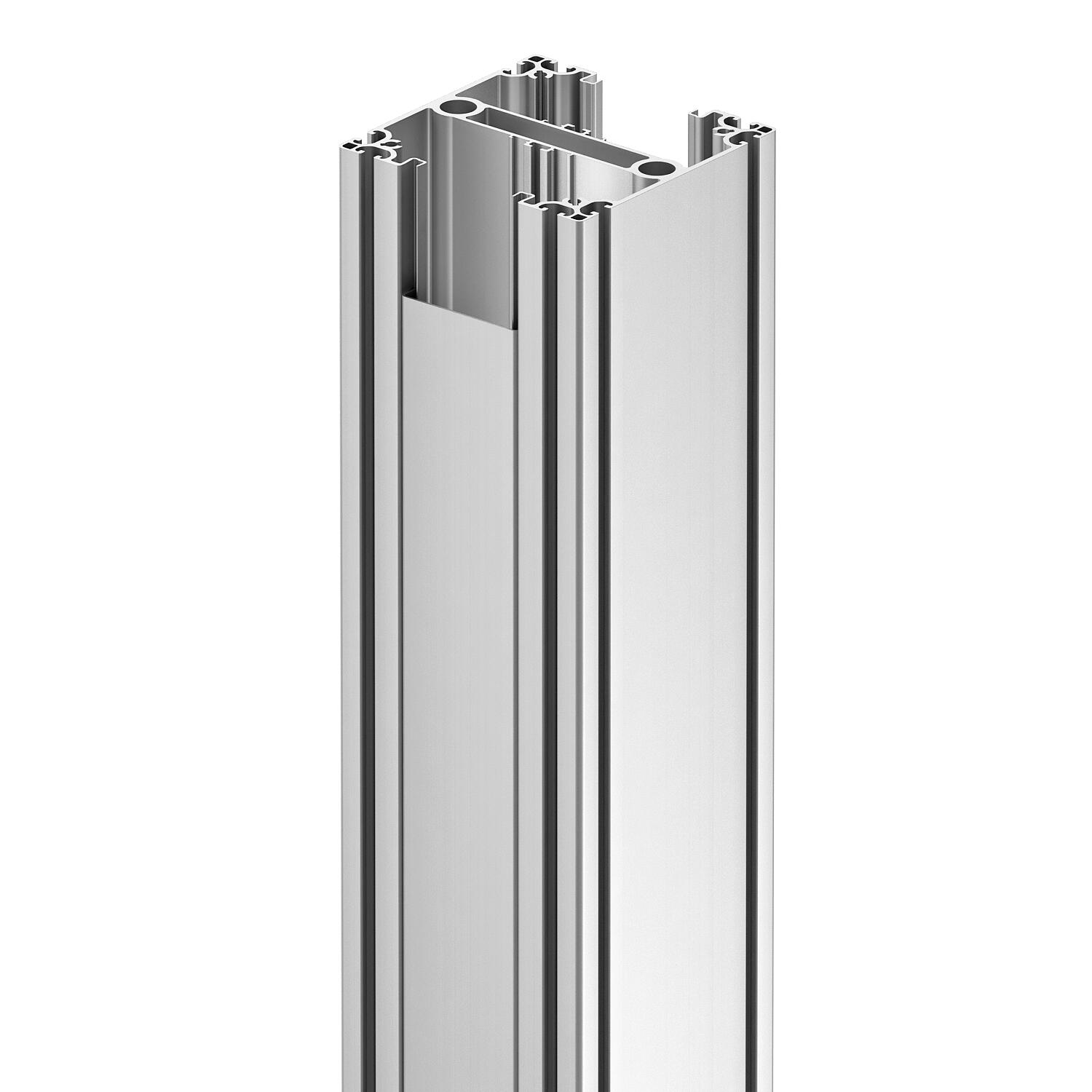

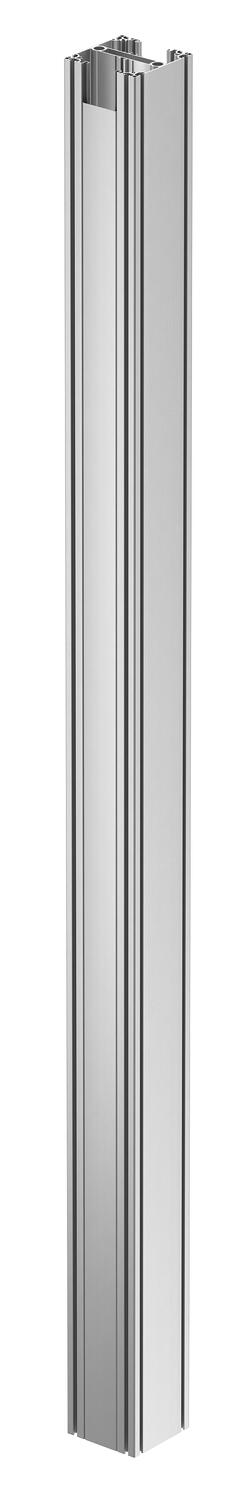

ISS service pole for the equipment of assembly workstations in production sites. The anodised heavy-duty aluminium profile has a 76.5 mm system opening on two opposite sides for accepting front-locking mounting accessory boxes of the series 71GD or mounting supports of the series 71MT. All four sides of the profile have a mounting groove in the standard nominal size 8 for installing various expansion parts for additional functions (Building Kit Systems). The scope of delivery comprises the pole profile as well as the necessary covers for the system openings in 2,000 mm lengths and a PE bag with 20 additional locking brackets, type RKV3V, to enable you to create partial lengths of the covers. Two closed trunking channels inside the profile are ideal for conduction of compressed air.

Technical data

Technical data

Adjustable	no
Cable entry	Top/bottom
Ceiling mounting	yes
Changes according to location	no
Continuous profile	yes
Cover width	76,5 mm

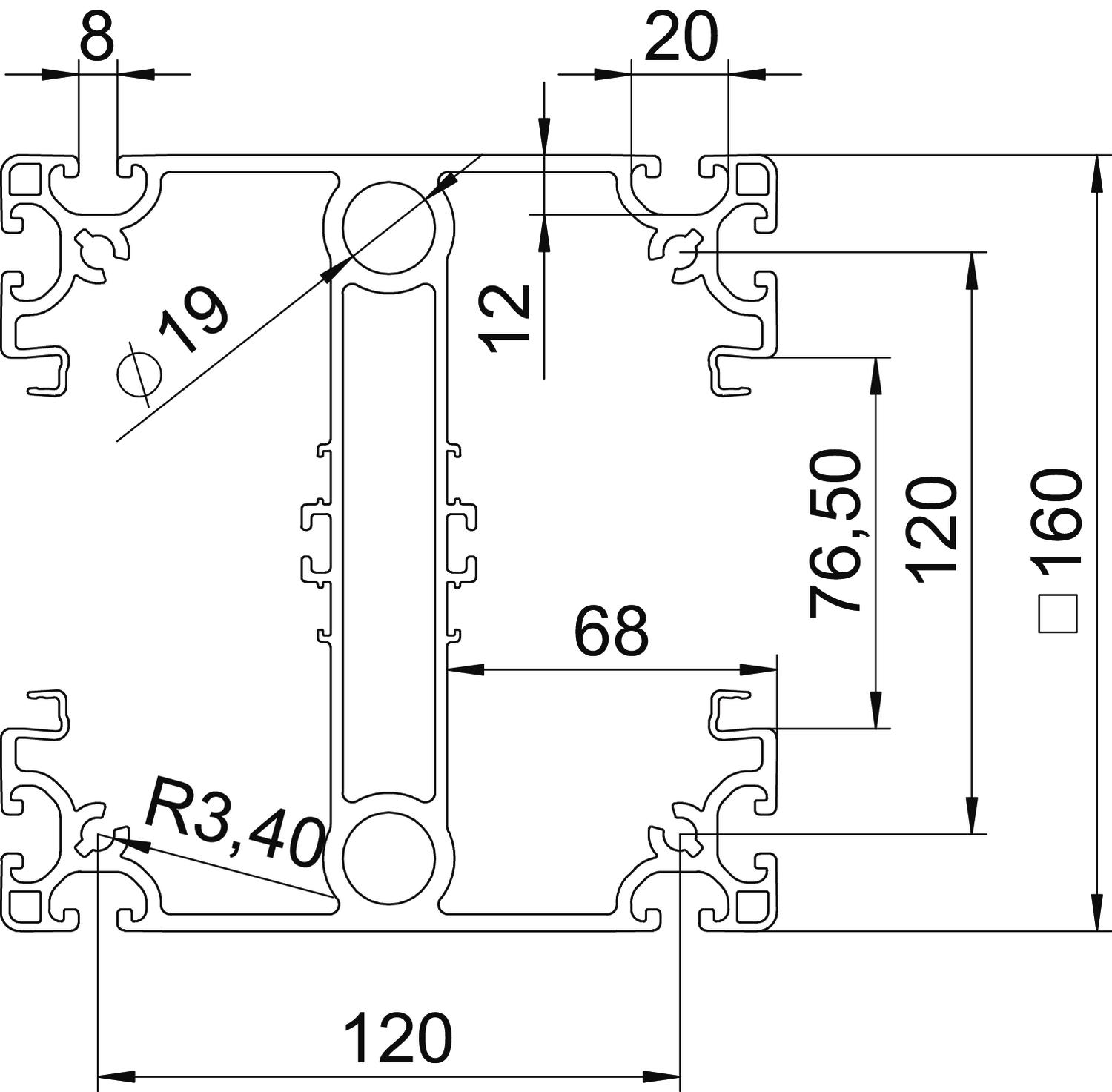

Dimension	4000x160x160
Fastening type	Mounting flange
Floor mounting	yes
Halogen-free	yes
Height	160 mm
Length	4000 mm
Material	Aluminium

Number of compartments	2 St.
Number of usable covers	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Pole height, min.	4000 mm
Pole shape	Square
Pre-wired	no
Protection rating	IP30
Protection rating IK code	IK10
Surface	Anodised
Version for	Double-sided
Width	160 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
ISS160160IP4 EL	4000 mm	6290404	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
Aluminium trunking cover	GA-OTEL	6279723	m	2 m
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
Ceiling fastening for service poles	ISS160160DB WA	6290436	piece	1 piece
Floor plate for industrial pole	ISS160160BP	6290416	piece	1 piece
Collision guard for industrial pole	ISS160160AS WA	6290422	piece	1 piece
Collision guard for industrial pole	ISS160160AS HRO	6290423	piece	1 piece
Slot nut for industrial pole	NS8 ST	6290499	piece	10 piece
Compressed air tap for industrial pole	ISS160160DLA	6290495	piece	1 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
