In-concrete box for installation units of nominal size R9 145 | 48 | R9

In-concrete box for installation units of nominal size R9

Item no. 7399858 | EAN 4012196331789

Item no. / Types	7399858 / IBD 35048 R9

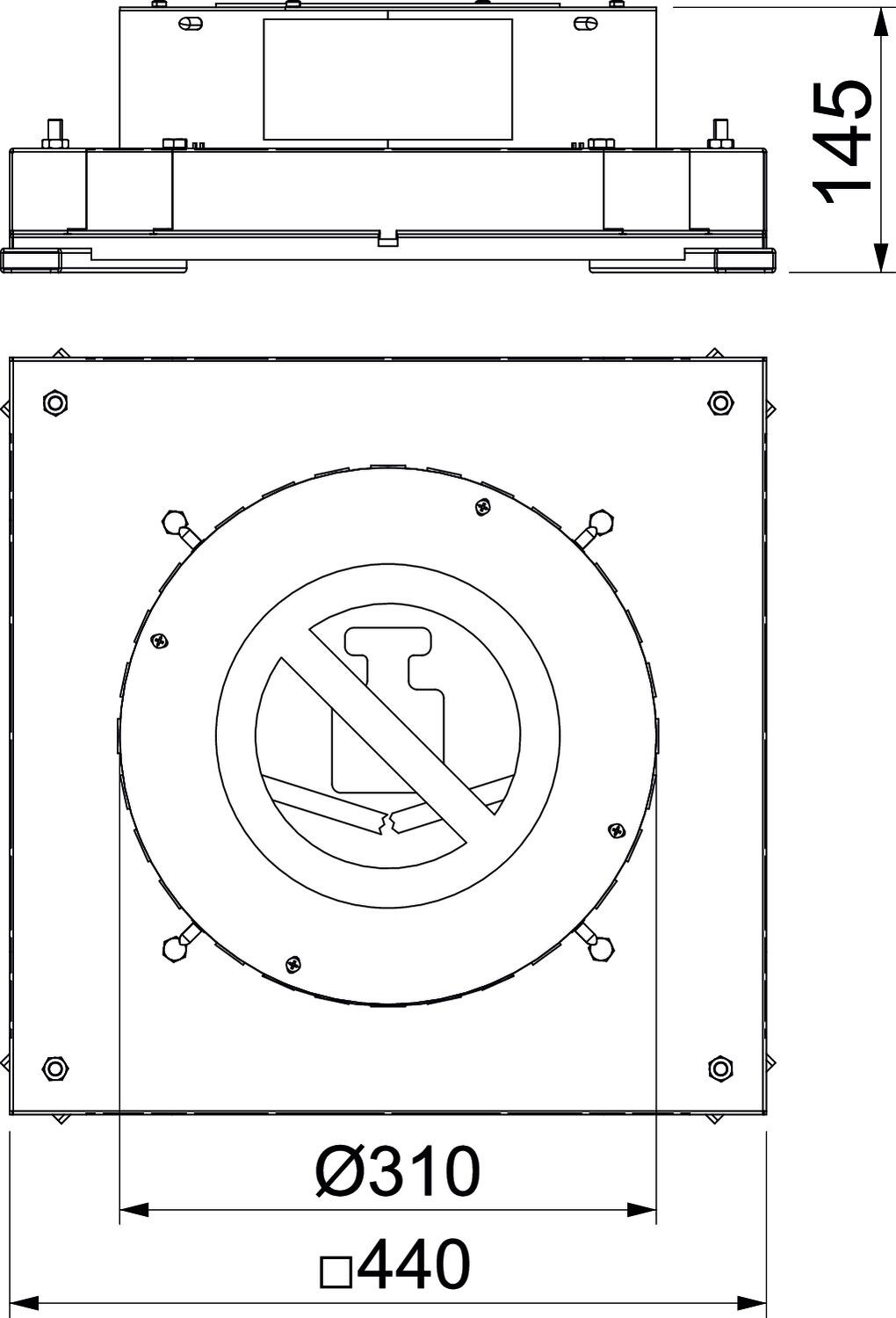

Height	145 mm

Duct height, min.	48 mm

Nominal size for device installation units	R9

Product description

Product description

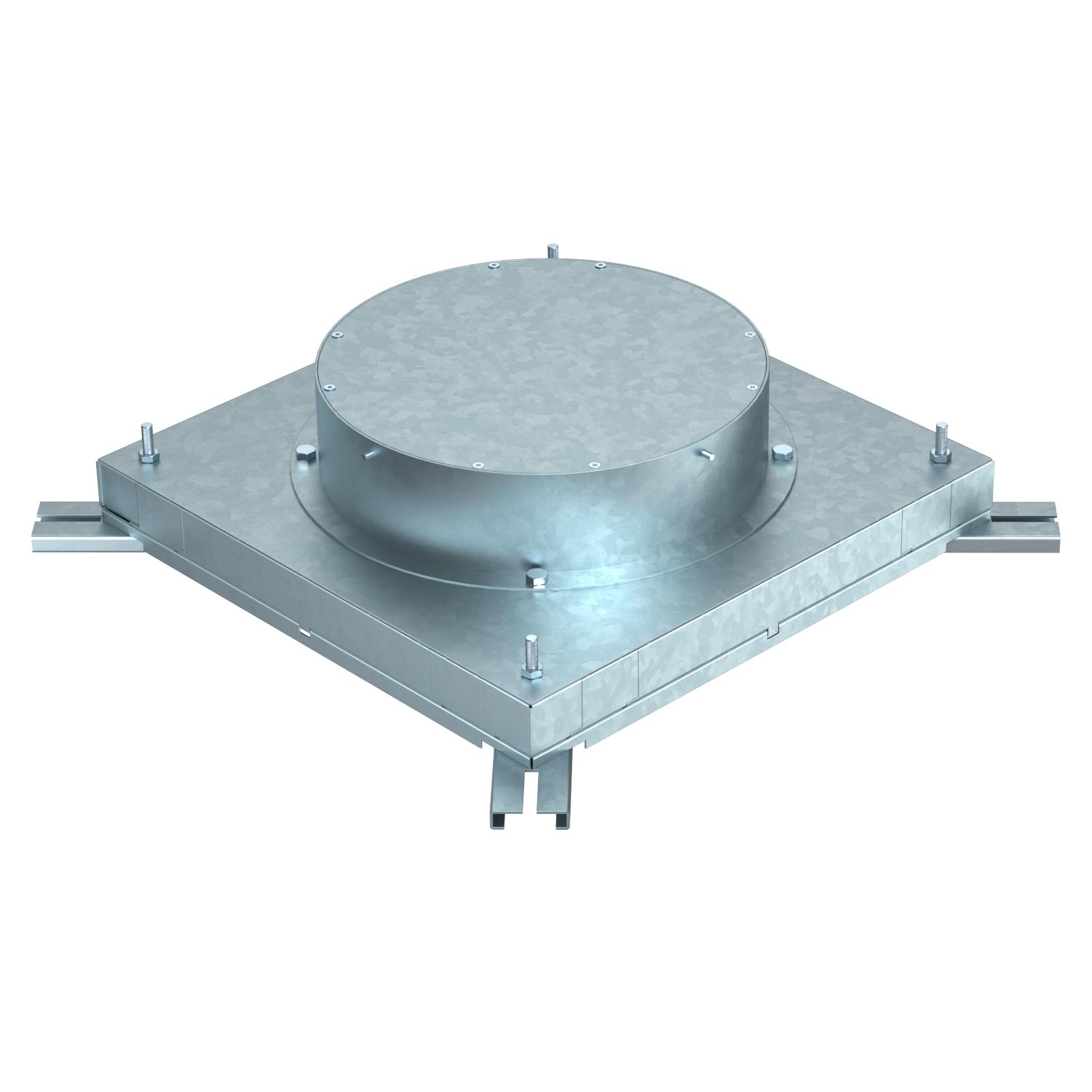

In-concrete box for duct height 48 mm, prepared for duct widths 250 and 350 mm.

With four adjustable placements for height-adjustment units.

The integrated lined body can be adjusted to a maximum of 65 mm for compensating screed work.

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	31,716 kg CO₂e / 1 Piece
Decouplable	no
Dimension h	145 mm
Duct height, min.	48 mm
Floor plate	yes
For pipe connection	no
Height	145 mm
Installation opening for flush-mount unit	Round
Installation opening for on-floor tank	no
Material	Steel

Nominal size for device installation units	R9
Number of installable devices	12
Seal installation option	no
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	yes
Surface	Strip galvanized
Trunking width, max.	350 mm
Trunking width, min.	250 mm

All types

All types

Types	Height	Duct height, min.	Nominal size for device installation units	Item no.	Quantity	SSU
IBD 35048 R9	145 mm	48 mm	R9	7399858	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Underfloor installation duct, 3-compartment , Kanalhöhe 48 mm	S3 25048	7400332	m	2 m
Connection element 48 mm	IBVE 25048	7399892	piece	1 piece
Connection element 48 mm	IBVE 35048	7399898	piece	1 piece
Height adjustment unit	IBNEV 110	7399920	piece	10 piece
