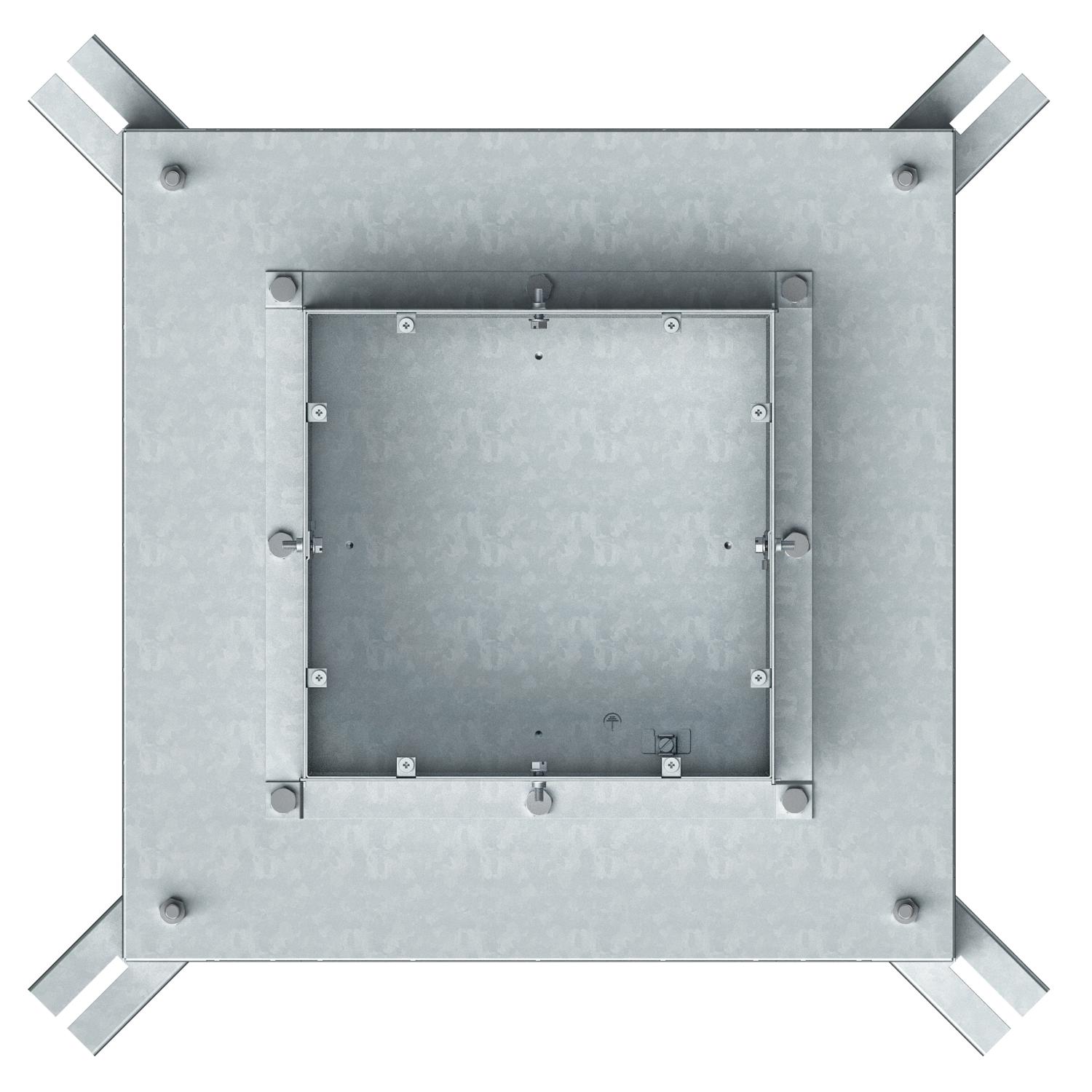

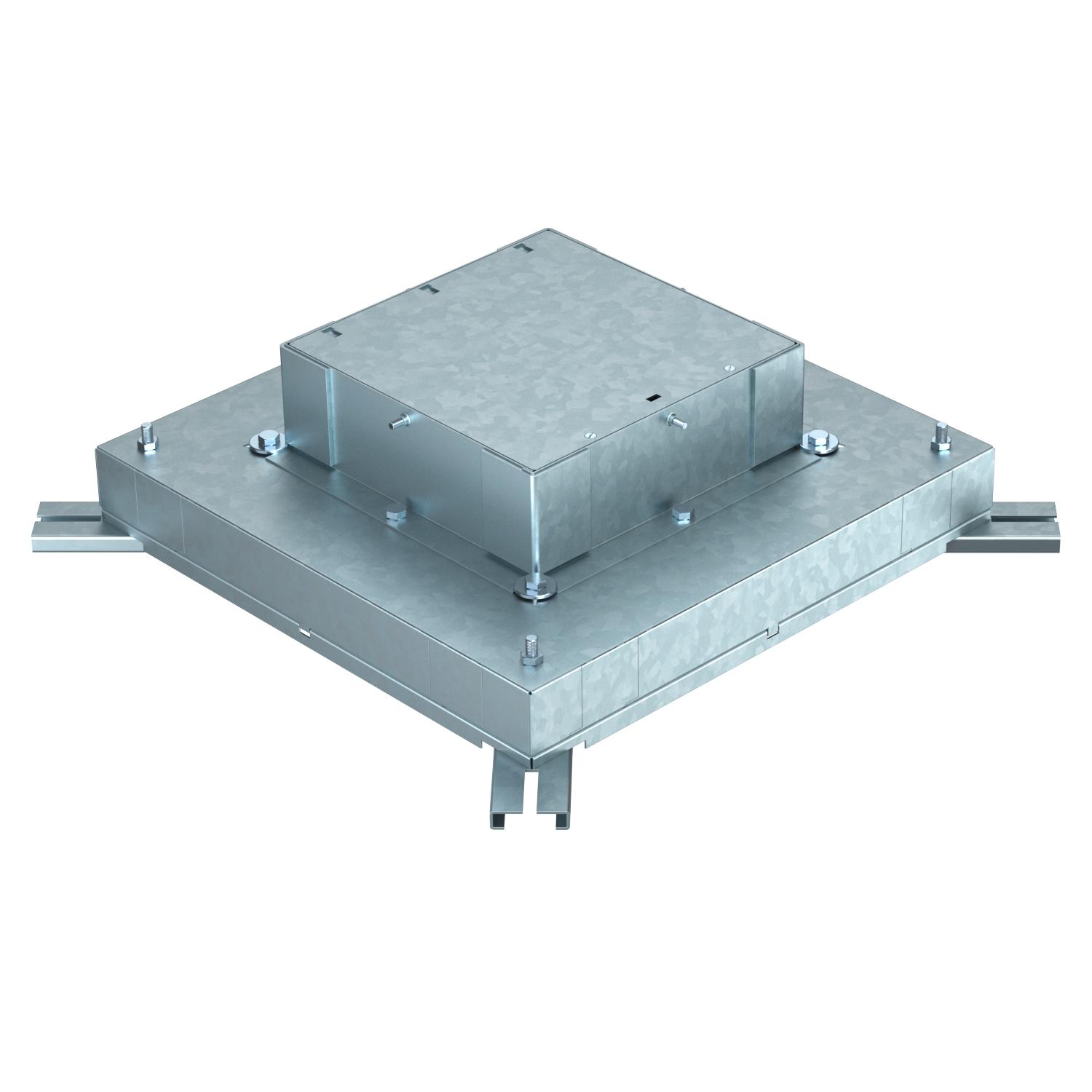

In-concrete box for installation units of nominal size 9 135 | 38 | 9

In-concrete box for installation units of nominal size 9

Item no. 7399850 | EAN 4012196331734

Item no. / Types	7399850 / IBD 35038 9

Height	135 mm

Duct height, min.	38 mm

Nominal size for device installation units	9

Product description

Product description

In-concrete box for duct height 38 mm, prepared for duct widths 250 and 350 mm.

With four adjustable placements for height-adjustment units.

The integrated lined body can be adjusted to a maximum of 65 mm for compensating screed work.

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	29,291 kg CO₂e / 1 Piece
Decouplable	no

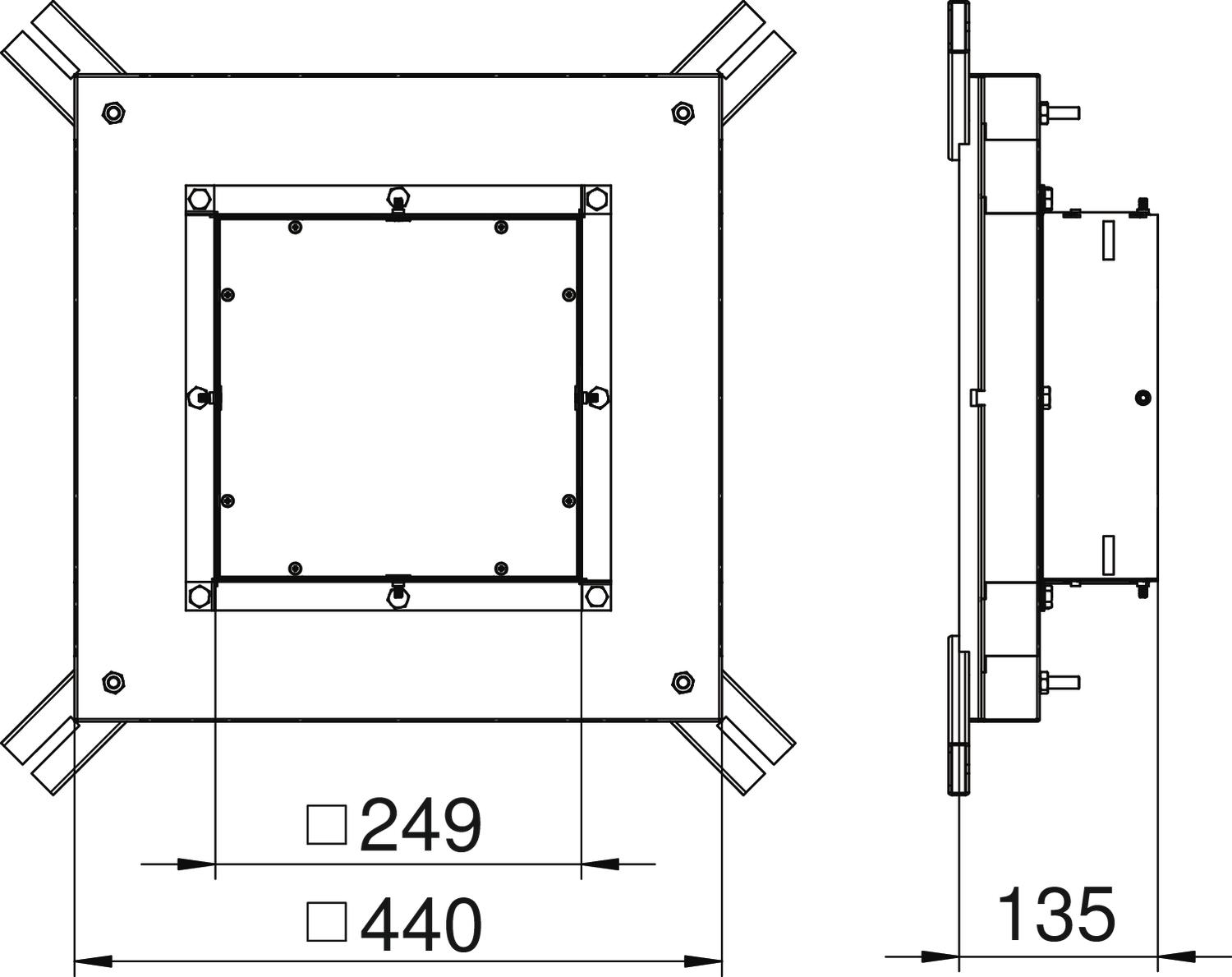

Dimension	440x440x135
Dimension h	135 mm
Duct height, min.	38 mm
Floor plate	yes
For pipe connection	no
Height	135 mm
Installation opening for flush-mount unit	Square
Installation opening for on-floor tank	no

Material	Steel
Nominal size for device installation units	9
Number of installable devices	12
Seal installation option	no
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	yes
Surface	Strip galvanized
Trunking width, max.	350 mm
Trunking width, min.	250 mm

All types

All types

Types	Height	Duct height, min.	Nominal size for device installation units	Item no.	Quantity	SSU
IBD 35038 9	135 mm	38 mm	9	7399850	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

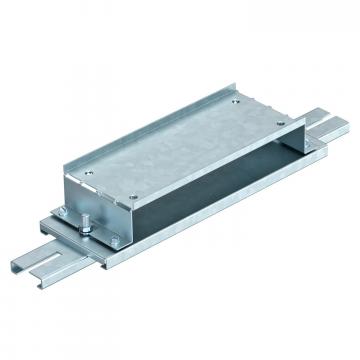

Connection element 38 mm	IBVE 25038	7399890	piece	1 piece

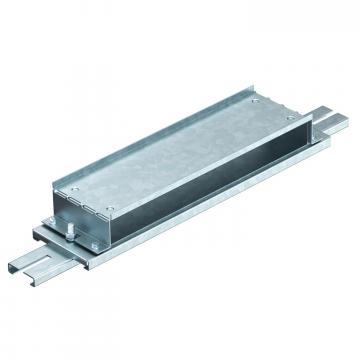

Connection element 38 mm	IBVE 35038	7399896	piece	1 piece
Height adjustment unit	IBNEV 110	7399920	piece	10 piece
