I support connector VIS 8 FT
Item no. 6018300 | EAN 4012196014231
- Product description
-
Product description

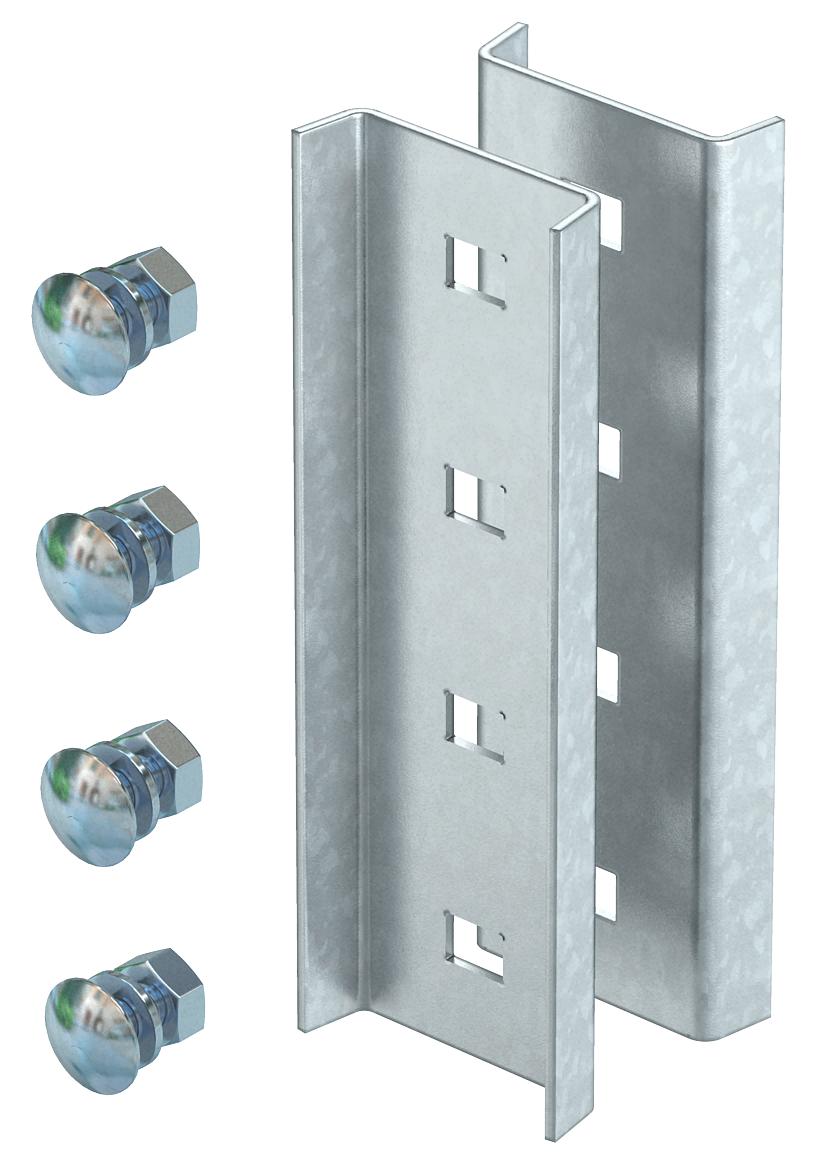

I support connector to connect IS 8 supports.
-
- Technical data
-
Technical data

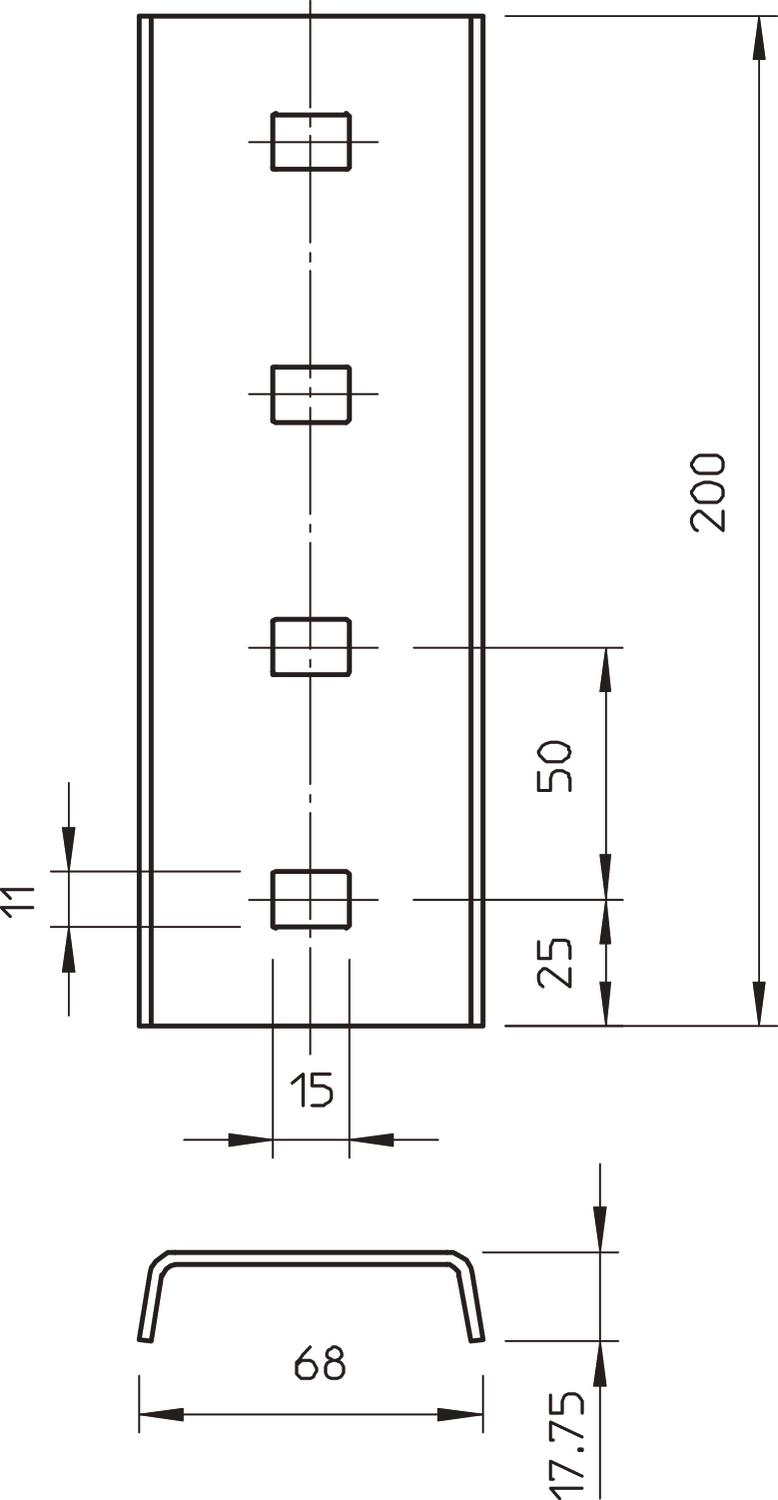

Dimension 17,5 x 68 x 200 Dimension 200x68 Drill hole spacing, centre 50 mm Height 17,5 mm Length 200 mm Material Steel Rustproof steel, pickled no Suitable for profile shapes I profile Surface Hot-dip galvanised Width 68 mm With screw accessories yes - All types
- Downloads
-
Data sheet VIS 8 FT / 6018300 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VIS 8 FT / 6018300 , 0.10MB , pdfREACH Declaration of conformity VIS 8 FT / 6018300 , 0.12MB , pdfRoHS Declaration of conformity VIS 8 FT / 6018300 , 0.13MB , pdfMounting instructions Mounting instructions, I support systems , 0.03MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
