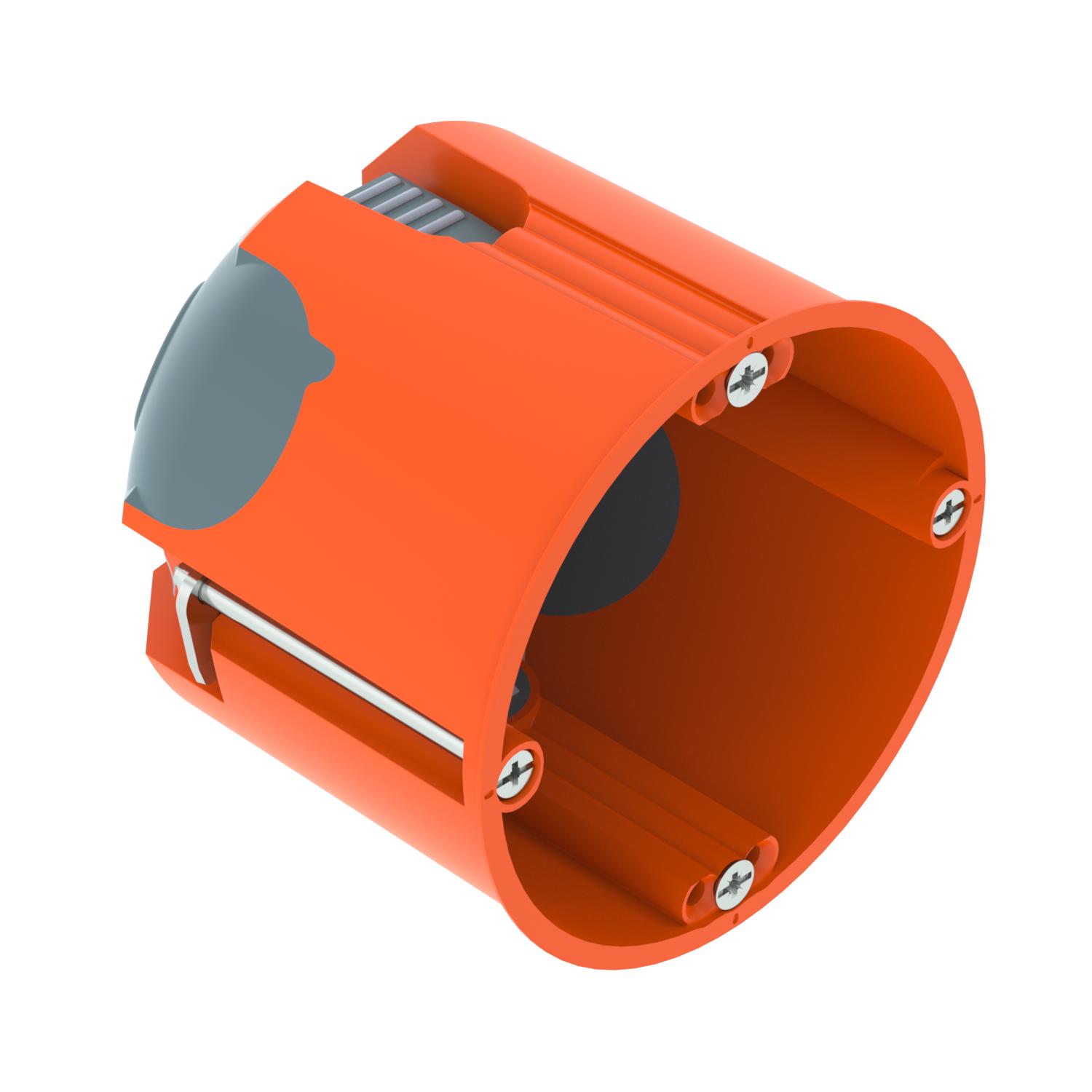

HW Cavity wall device connection box 61, airtight

Item no. 2003808 | EAN 4012196715947

2003808 / HG 61-L
61 mm
68 mm
68 mm
20/25 mm
10
Product description
Product description
Cavity wall device box with airtight membrane entries for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.

• 2 x 3 screw domes

• Device screws, clamping straps

• 2 combination pipe entries of Ø 20 and 25 mm

• 4 entries for NYM cables 3 x 1.5 mm

• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²

• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²

• Airtight connection with other accessory sockets via connector, type ZH 11-V

• Sound insulation tested up to 70 dB according to ISO 10140-2

Delivery accessories: 10 x connectors, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Diameter 68 mm
  • Nominal cross-section 1.5–2.5 mm²
  • Nominal voltage 400 V
Technical data

Technical data

Airtight yes
Cable entries 3 x 1.5 mm² 4
Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² 2
Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² 2
Colour orange / grey
Cover Without
Cover fastening Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate 0,1161 kg CO₂e / 1 Piece
Device fixing Screws ,
Diameter 68 mm
Dimension Ø68mm, H61mm
Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
for pipe diameter 20/25 mm
Halogen-free yes
Height 61 mm
Impact-resistant yes
Material Polypropylen / Thermoplastisches Elastomer
Milling hole diameter 68 mm
No. of entries 10
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 1,5 mm²
Number of switch boxes 1
Protection rating IP30
Rated voltage 400 V
Shape Round
Suitable for plate thickness, max. 40 mm
Suitable for plate thickness, min. 5 mm
Support Connector
Type of housing penetration Insertion membrane
Type of insertion… NYM cables, data cables and corrugated pipes
With bolts yes
All types

All types

Types Height Diameter Milling hole diameter for pipe diameter No. of entries Item no. Quantity SSU
HG 61-L 61 mm 68 mm 68 mm 20/25 mm 10 2003808
25 piece
