HoverCube VH-4, with FI/LS, 2x protective contact sockets 2 | | | FI mit IFN 0,03 A (Standard) | Graphite black; RAL 9011

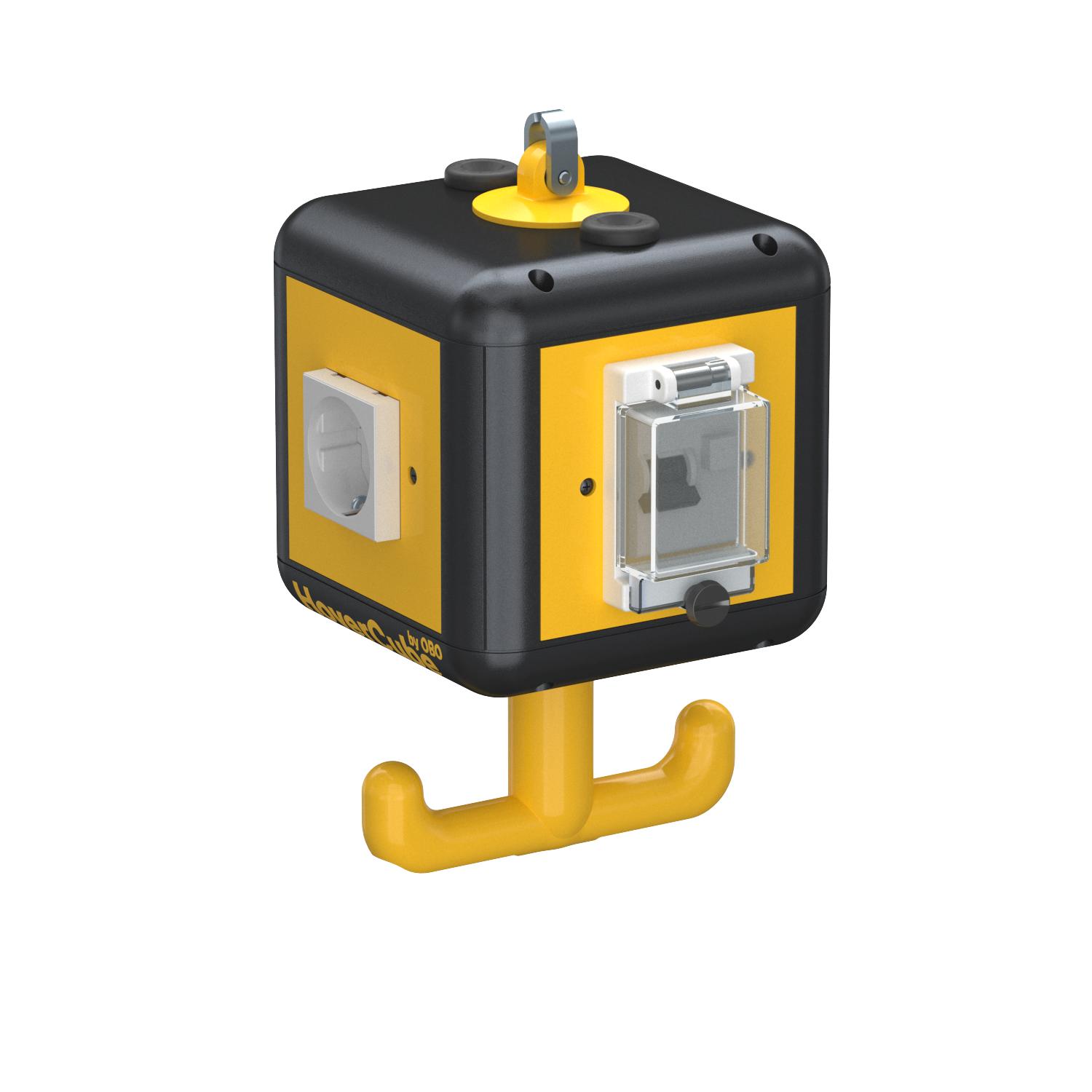

HoverCube VH-4, with FI/LS, 2x protective contact sockets

Item no. 6109780 | EAN 4012196776214

Item no. / Types

Number of SCHUKO sockets

FI protection switch	FI mit IFN 0,03 A (Standard)

Colour	Graphite black; RAL 9011

Product description

Product description

In the case of an overcurrent/error current (16 A/30 mA), the VH-4 HoverCube with decentralised protection triggers the FI/LS directly. Switching back on can take place directly on the power supply unit.

Equipped as follows:

2x single sockets with earthing pin 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1x 3-pin terminal, with partition for circuit separation and an FI/LS switch.

One unequipped side with a free panel for individual, construction-side equipment (e.g. blanking plate, cover plate for devices/Modul 45 devices).

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011

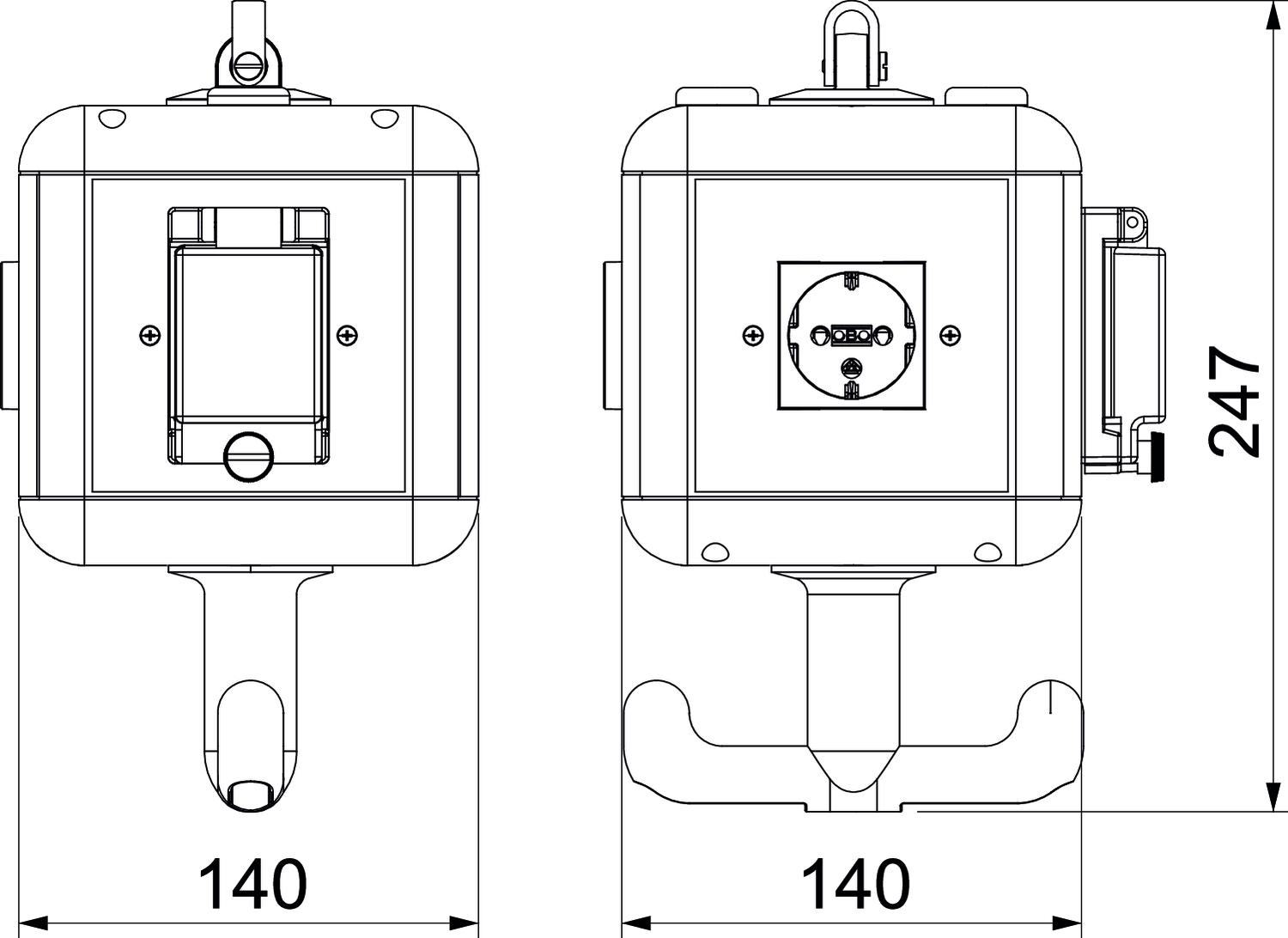

Depth	175 mm
FI protection switch	FI mit IFN 0,03 A (Standard)
Handling	abhängbar

Height	247 mm
Material	Polyamide
Military version	no
Number of SCHUKO sockets	2
Other installations and/or empty slots	1
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm

All types

All types

Types	Number of SCHUKO sockets	FI protection switch	Colour	Item no.	Quantity	SSU
VH-4 2SD FILS	2	FI mit IFN 0,03 A (Standard)	Graphite black; RAL 9011	6109780	piece	1 piece
VH-4 2SF FILS	-	FI mit IFN 0,03 A (Standard)	Graphite black; RAL 9011	6109782	piece	1 piece
