HoverCube VH-4, empty housing, with compressed air connection | | 2 | Without | Graphite black; RAL 9011

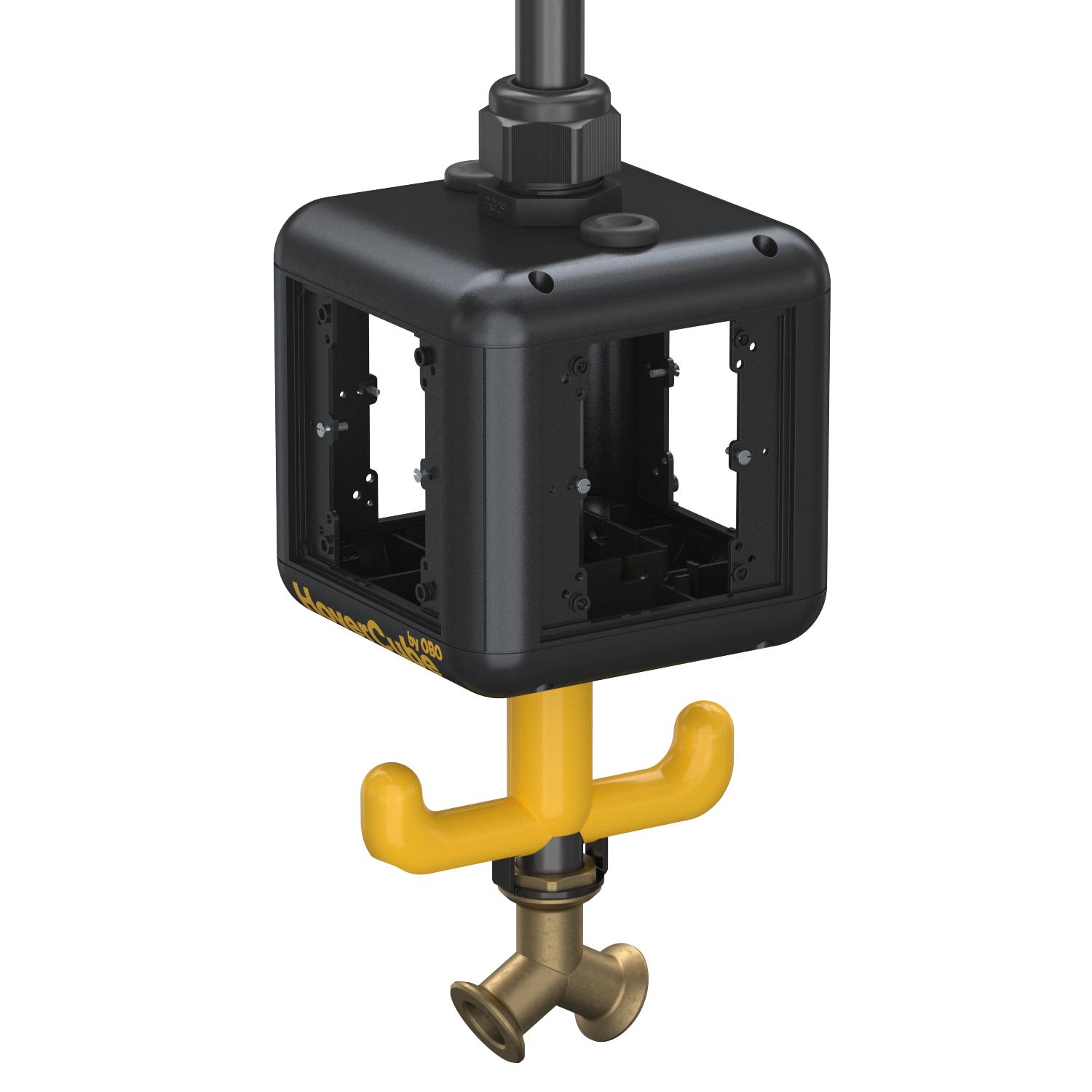

HoverCube VH-4, empty housing, with compressed air connection

Item no. 6109810 | EAN 4012195125105

Item no. / Types	6109810 / VH-4L LG

Number of compressed air connections	2

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

Empty housing with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2". With suspension lug and grip hook, for the installation of four electrical resources, with included partition. Without cover plates.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
CO₂ Footprint (GWP) Cradle-to-Gate	4,994 kg CO₂e / 1 Piece
Depth	140 mm

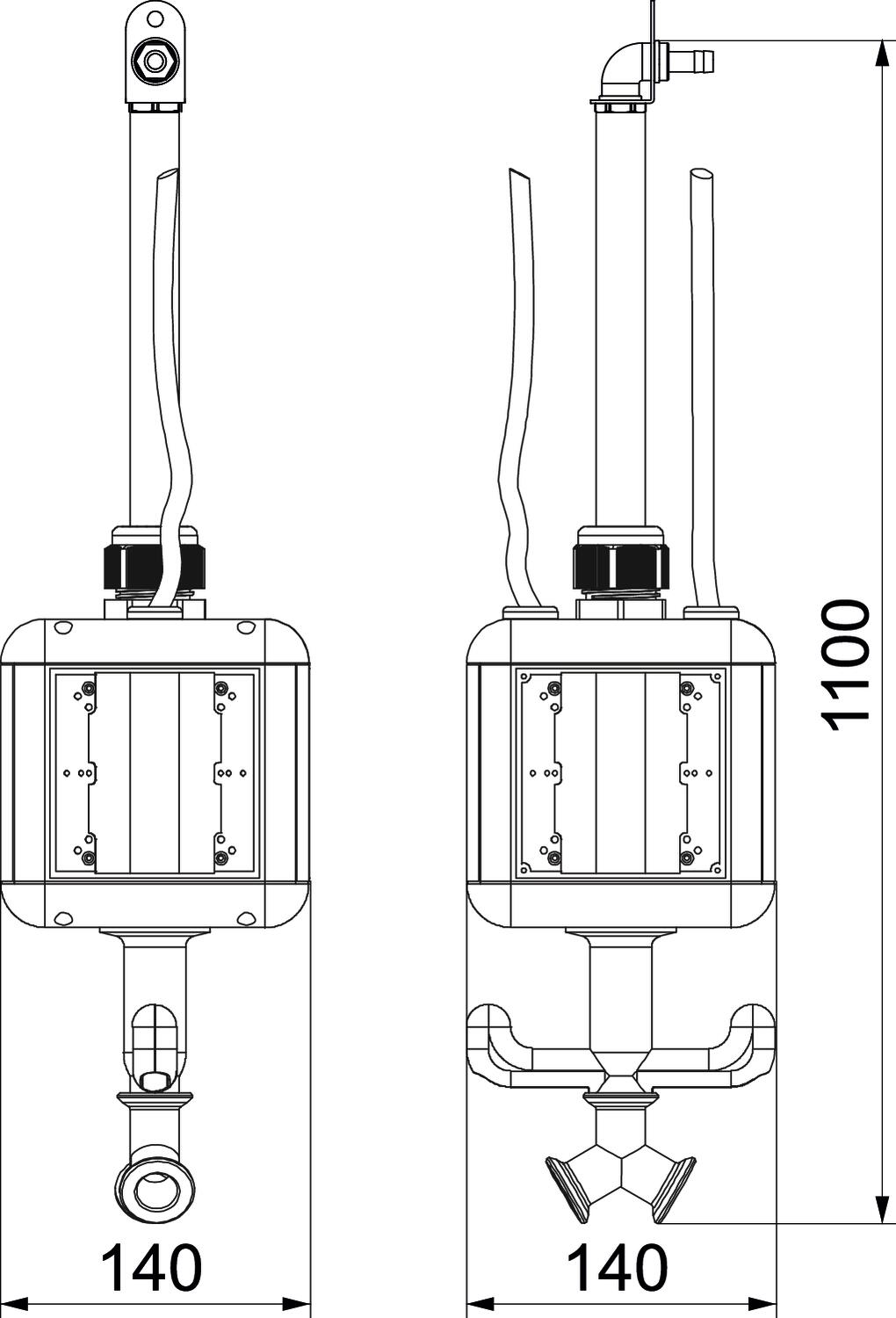

Dimension	140x140x1100
FI protection switch	Without

Handling	abhängbar
Height	247 mm
Material	Polyamide
Military version	no
Number of compressed air connections	2
Other installations and/or empty slots	4
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
