HoverCube VH-4, 3x earthing pin socket, 1x CEE 16 A | 1 | | Without | Graphite black; RAL 9011

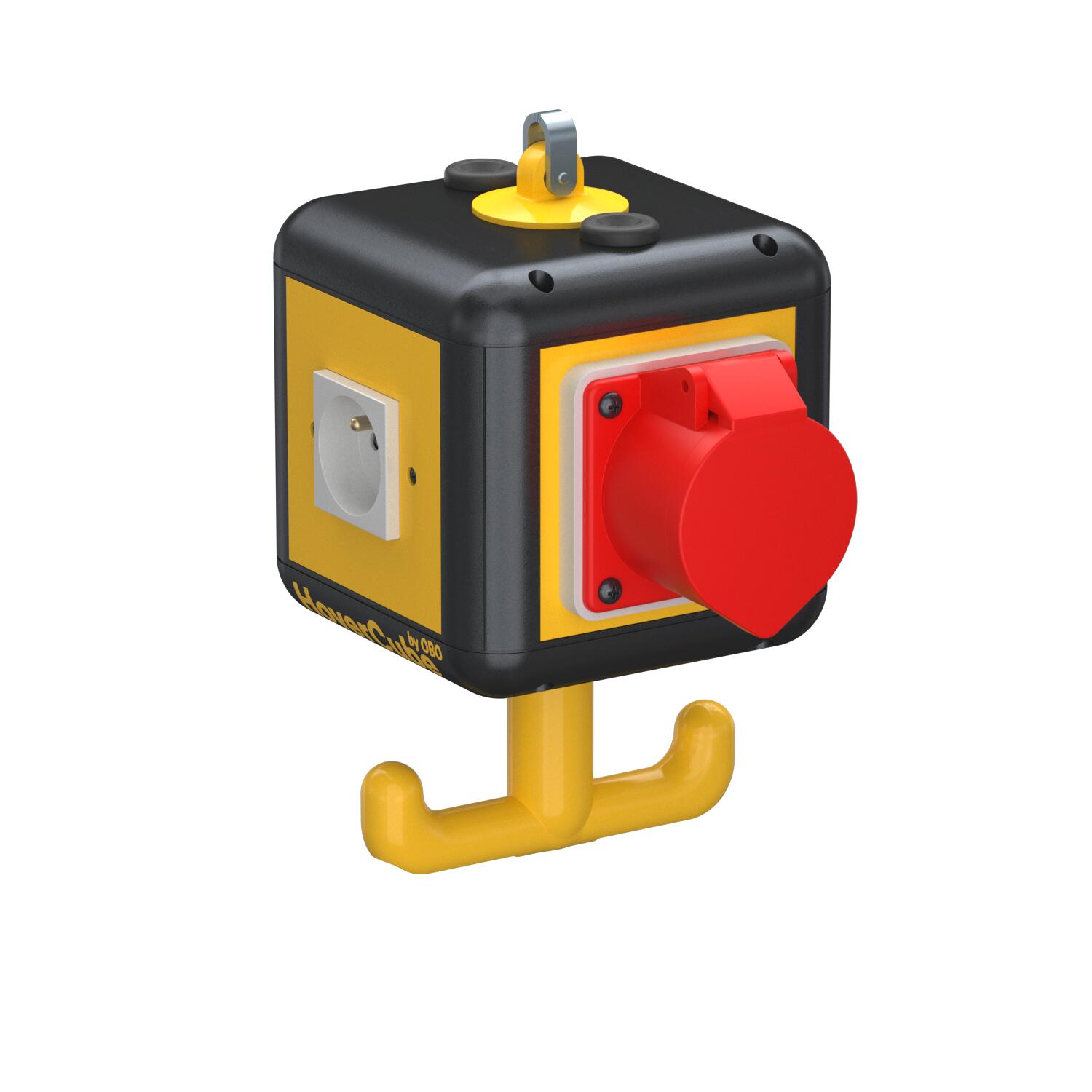

HoverCube VH-4, 3x earthing pin socket, 1x CEE 16 A

Item no. 6109808 | EAN 4012195125099

Item no. / Types	6109808 / VH-4 3SF1C16

Number of CEE sockets	1

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

Housing equipped and pre-wired with suspension lug, grip hook and four cover plates.

Equipped as follows: 3x single sockets with earthing pin 16 A/250 V with increased touch protection, pre-wired for an AC current, connection via 1x 3-pin terminal, 1x CEE socket

16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	1x16A5p400V
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
CO₂ Footprint (GWP) Cradle-to-Gate	3,46 kg CO₂e / 1 Piece
Depth	196 mm

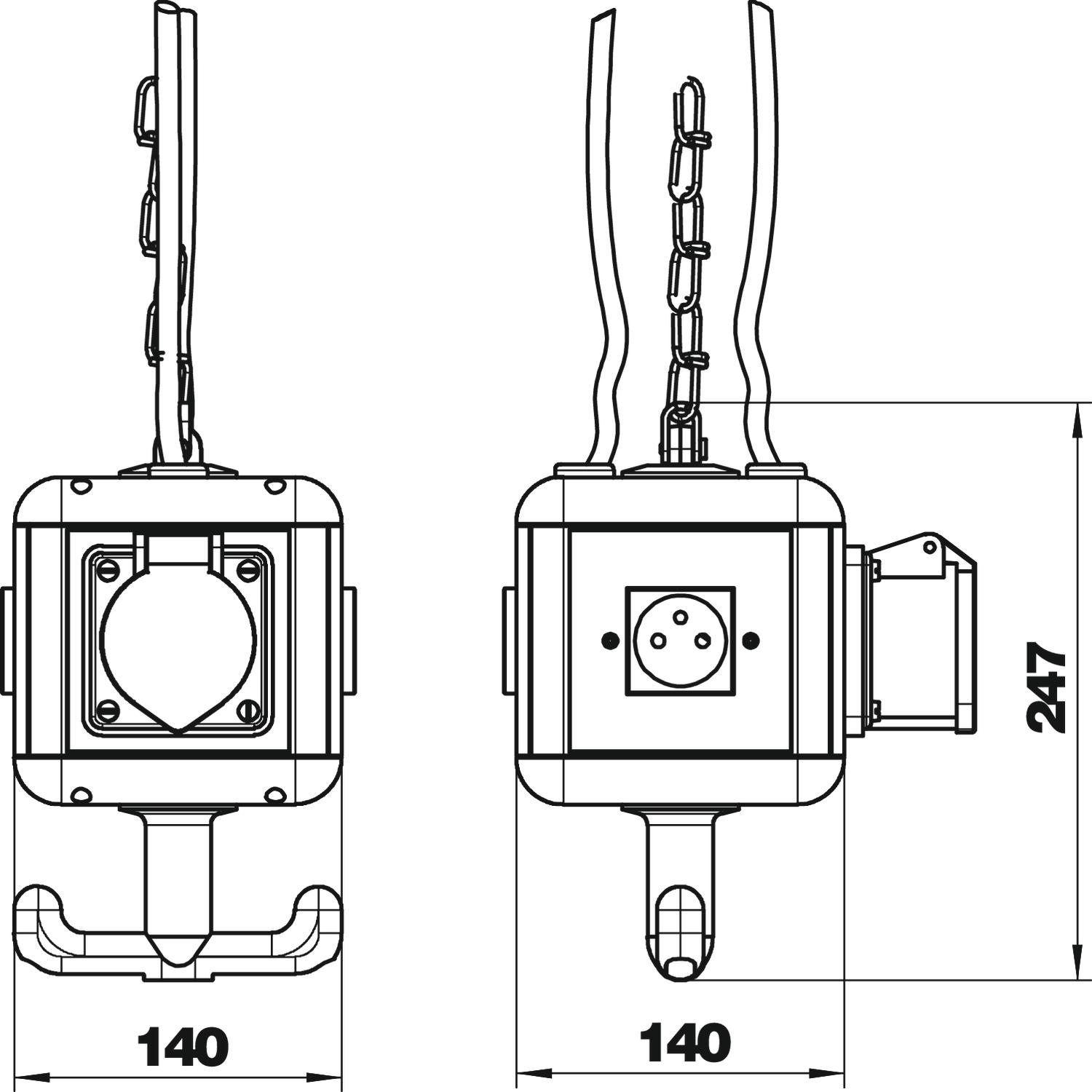

Dimension	140x140x252
FI protection switch	Without

Handling	abhängbar
Height	247 mm
Material	Polyamide
Military version	no
Number of CEE sockets	1
Other installations and/or empty slots	3
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
