- Product description
-
Product description

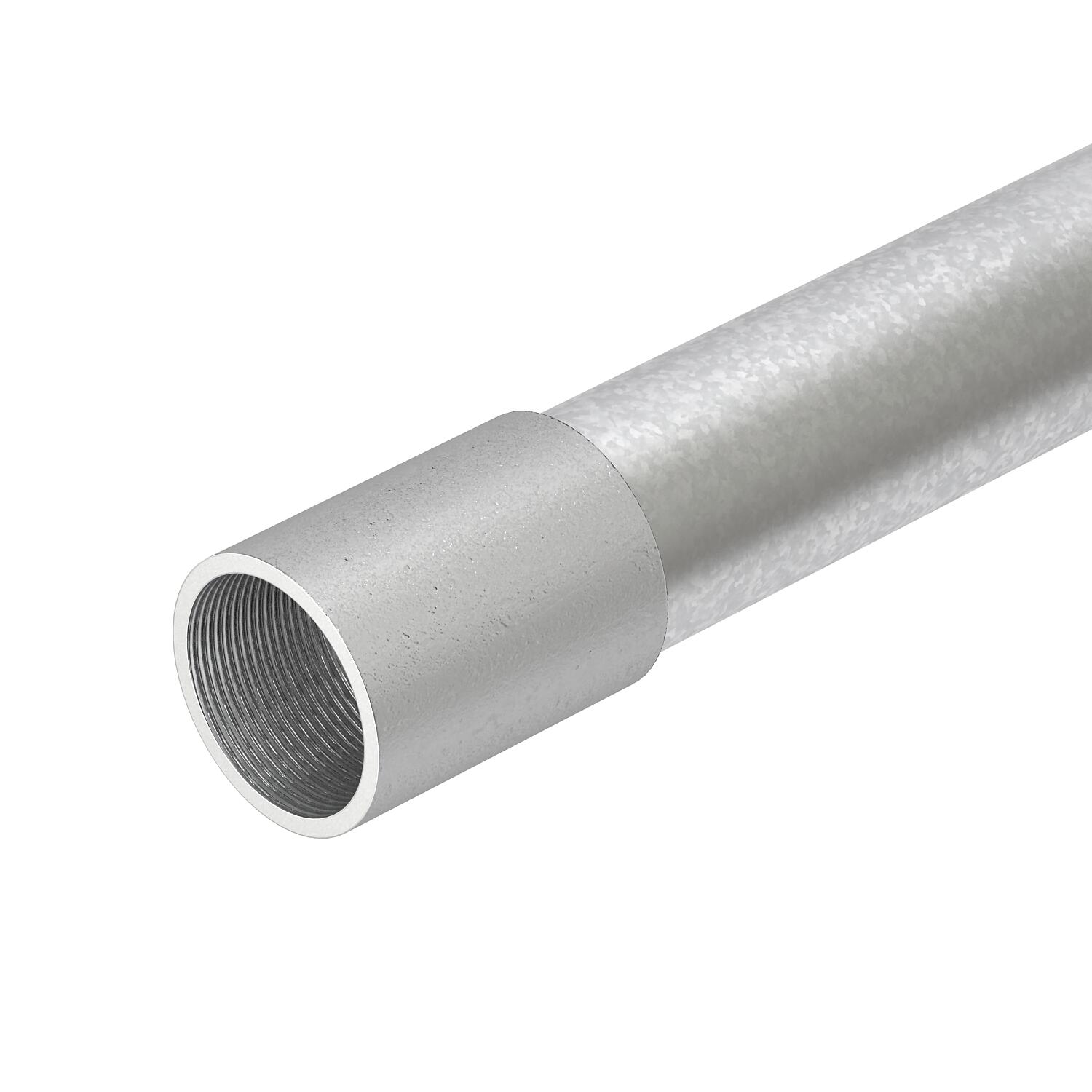

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.
With burr-free inner wall. Corrosion protection class 4 (high). One coupling is already screwed onto each pipe.
- Technical data
-
Technical data

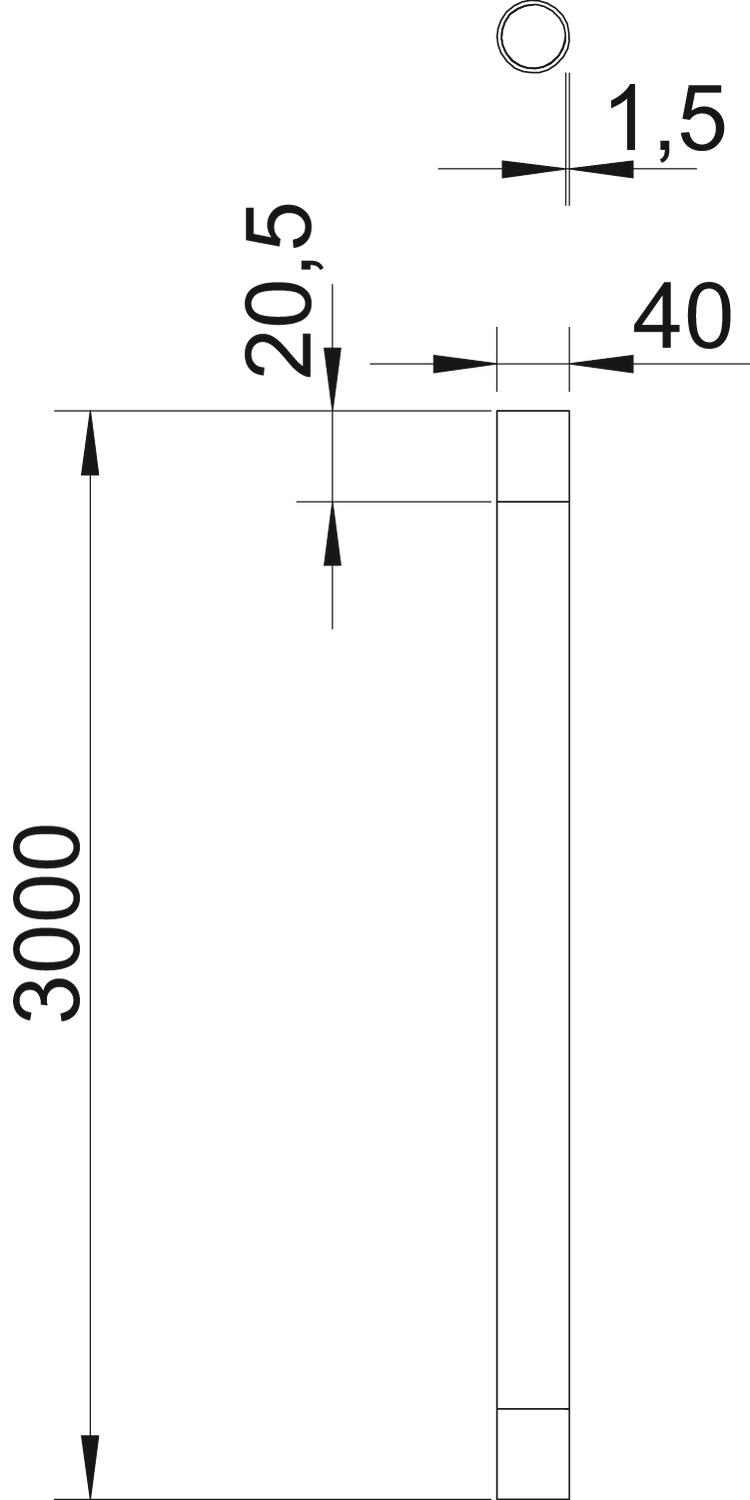

Brushed surface no Cavity wall installation yes Classification code 55571 Concealed yes Concrete installation yes Connection 1, installation pipe Sleeve Connection 2, installation pipe External thread (metric) Dimension M40, 3000mm Dimension D 40 mm Dimension l 20,5 mm Dimension L 3000 mm Dimension m (mm) M40 Dimension t 1,5 mm External diameter 40 mm Installation in the earth yes Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Pipe version Rigid with thread Polished surface no Surface Hot-dip galvanised Surface-mounted yes Thread M40x1,5 Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve yes - All types
-
All types
- Downloads
-
Data sheet SM40W FT / 2046537 , 0.25MB , pdfDeclaration of conformity SM40W FT / 2046537 , 0.15MB , pdfUK Declaration of Conformity SM40W FT / 2046537 , 0.14MB , pdfREACH Declaration of conformity SM40W FT / 2046537 , 0.12MB , pdfRoHS Declaration of conformity SM40W FT / 2046537 , 0.12MB , pdf
