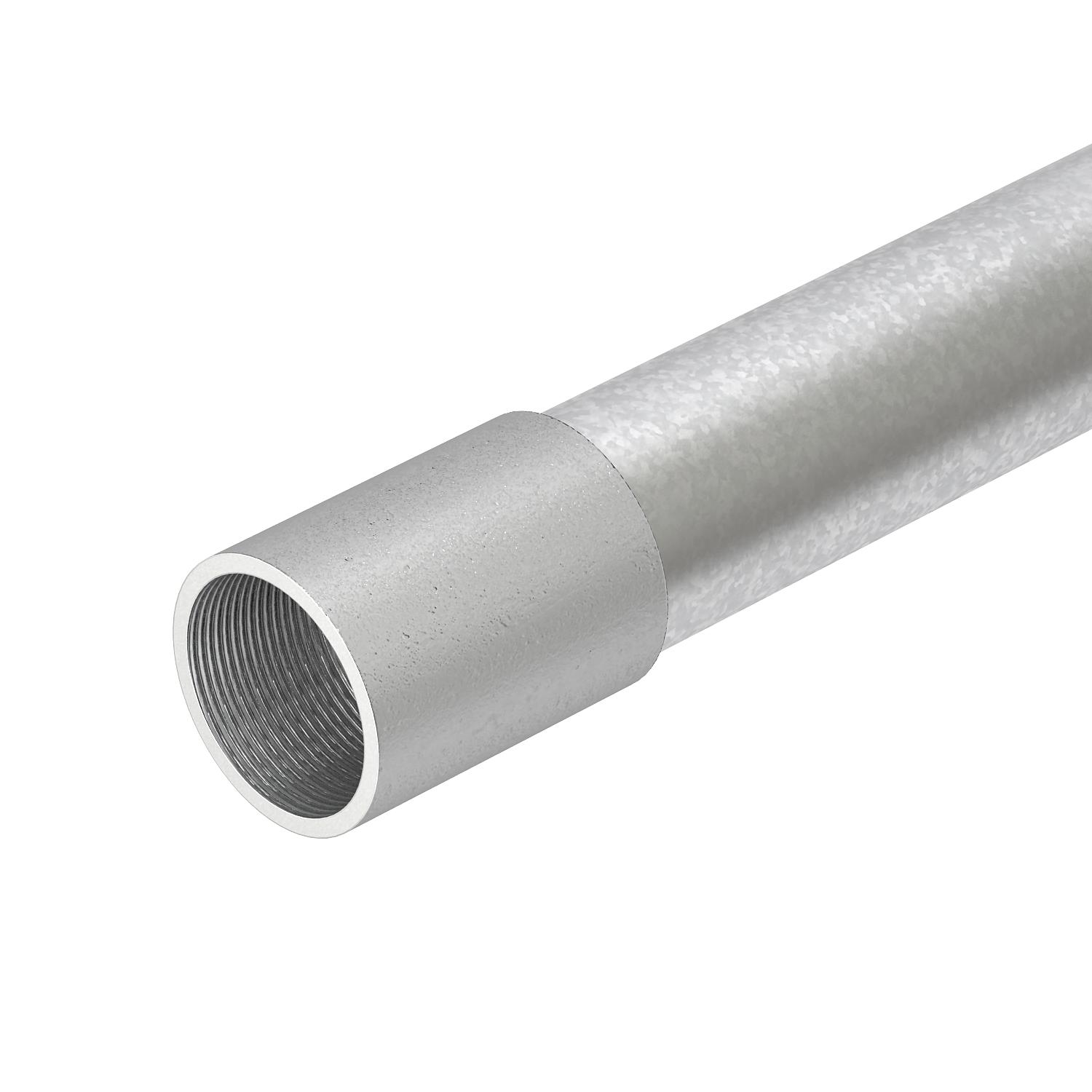

Hot-dip galvanised steel pipe, with thread 16 | 3000 | 1.3 | M16x1,5

Hot-dip galvanised steel pipe, with thread

Item no. 2046533 | EAN 4012195781424

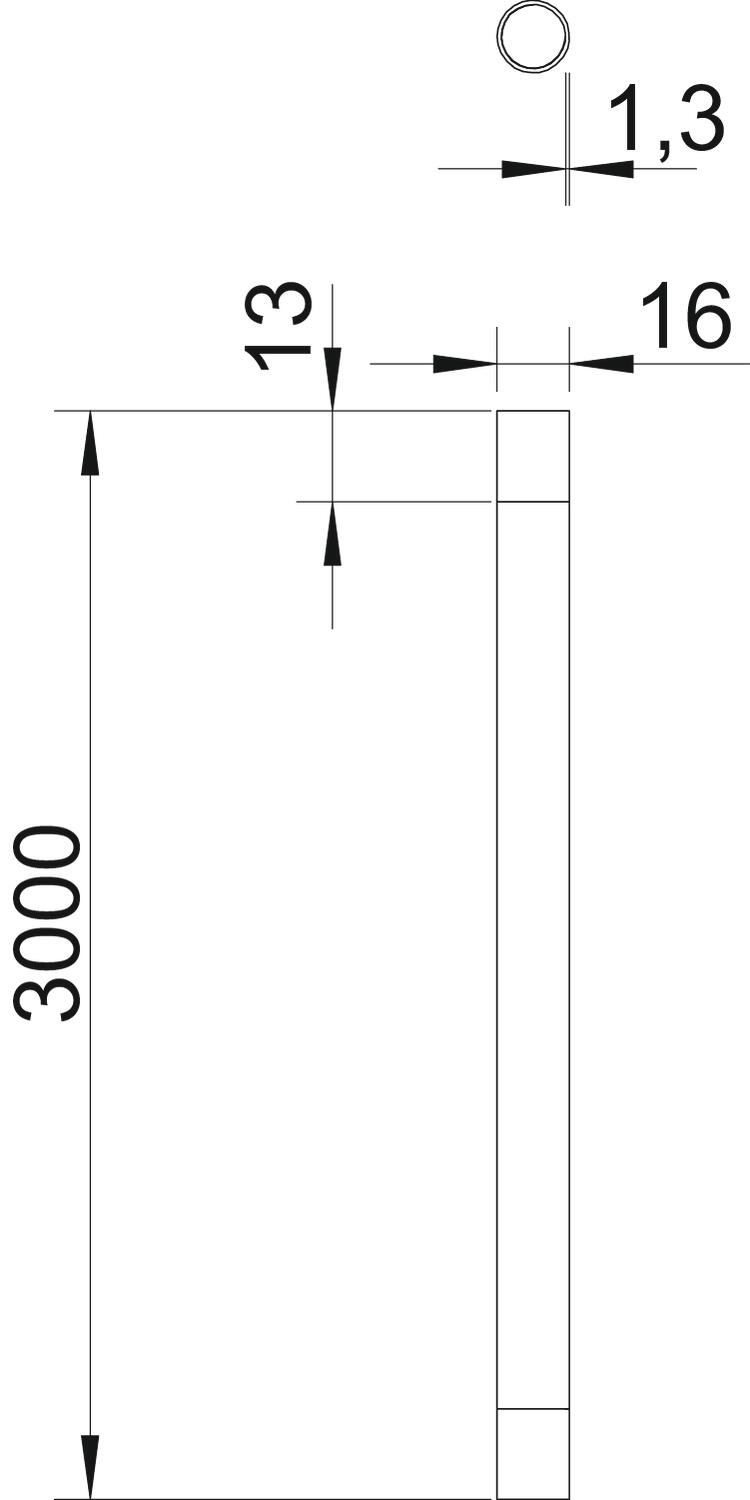

Item no. / Types

Dimension D

Dimension L	3000 mm

Dimension t

Thread

Product description

Product description

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.

With burr-free inner wall. Corrosion protection class 4 (high). One coupling is already screwed onto each pipe.

Technical data

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	55571
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Sleeve
Connection 2, installation pipe	External thread (metric)
Dimension	M16, 3000mm
Dimension D	16 mm
Dimension l	13 mm
Dimension L	3000 mm
Dimension m (mm)	M16
Dimension t	1,3 mm
External diameter	16 mm
Installation in the earth	yes

Installation on wood	yes
Installation outdoors	yes
Length	3000 mm
Machines and system installation	yes
Material	Steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid with thread
Polished surface	no
Surface	Hot-dip galvanised
Surface-mounted	yes
Thread	M16x1,5
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	yes

All types

All types

Types	Dimension D	Dimension L	Dimension t	Thread	Item no.	Quantity	SSU
SM16W FT	16 mm	3000 mm	1.3 mm	M16x1,5	2046533	m	30 m
SM20W FT	20 mm	3000 mm	1.5 mm	M20x1,5	2046534	m	30 m
SM25W FT	25 mm	3000 mm	1.5 mm	M25x1,5	2046535	m	30 m
SM32W FT	32 mm	3000 mm	1.5 mm	M32x1,5	2046536	m	21 m
SM40W FT	40 mm	3000 mm	1.5 mm	M40x1,5	2046537	m	15 m
SM50W FT	50 mm	3000 mm	1.5 mm	M50x1,5	2046538	m	15 m
SM63W FT	63 mm	3000 mm	1.8 mm	M63x1,5	2046540	m	9 m
