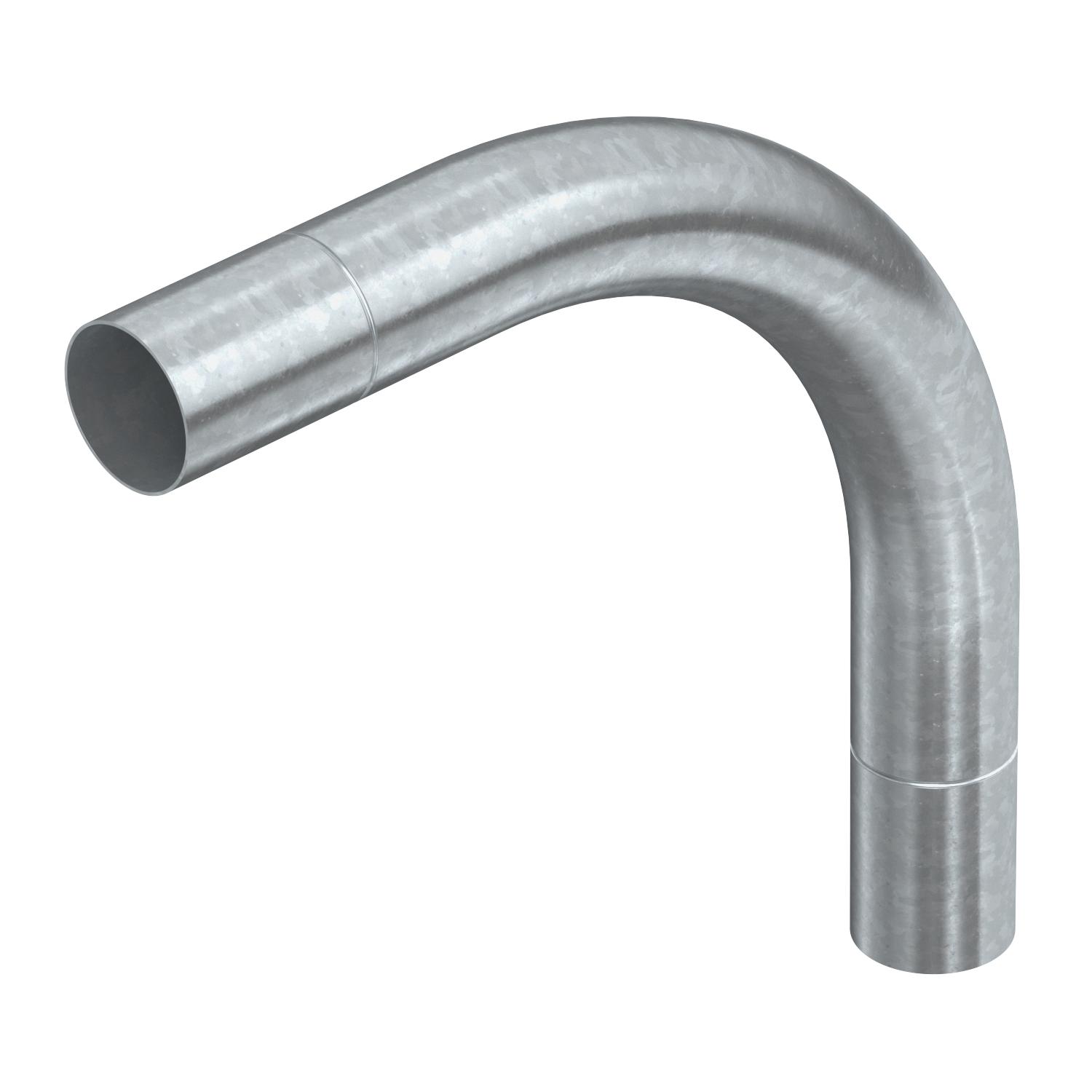

Hot-dip galvanised steel bend, without thread

Item no. / Types

For nominal pipe diameter

Product description

Product description

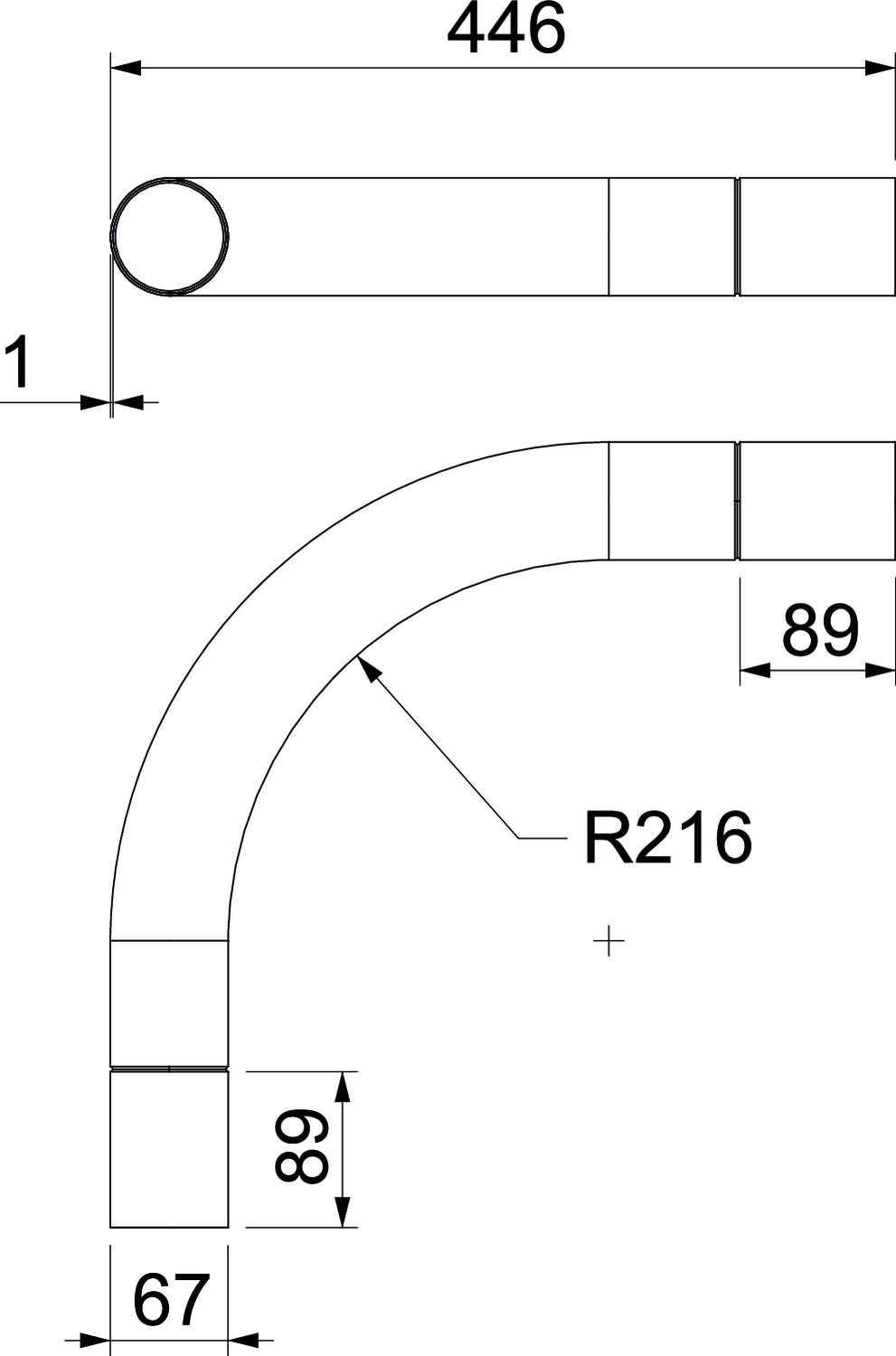

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Technical data

For nominal pipe diameter	63 mm
Halogen-free	no
Material	Steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Surface	Hot-dip galvanised
Two-part	no
Version for	Connector
With inspection opening and lid	no
With sleeve	yes

All types

All types

Types	For nominal pipe diameter	Item no.	Quantity	SSU
SBN16 FT	50 mm	2046816	piece	15 piece
SBN20 FT	20 mm	2046817	piece	25 piece
SBN25 FT	25 mm	2046818	piece	25 piece
SBN32 FT	32 mm	2046819	piece	20 piece
SBN40 FT	40 mm	2046820	piece	15 piece
SBN50 FT	50 mm	2046821	piece	5 piece
SBN63 FT	63 mm	2046822	piece	3 piece
