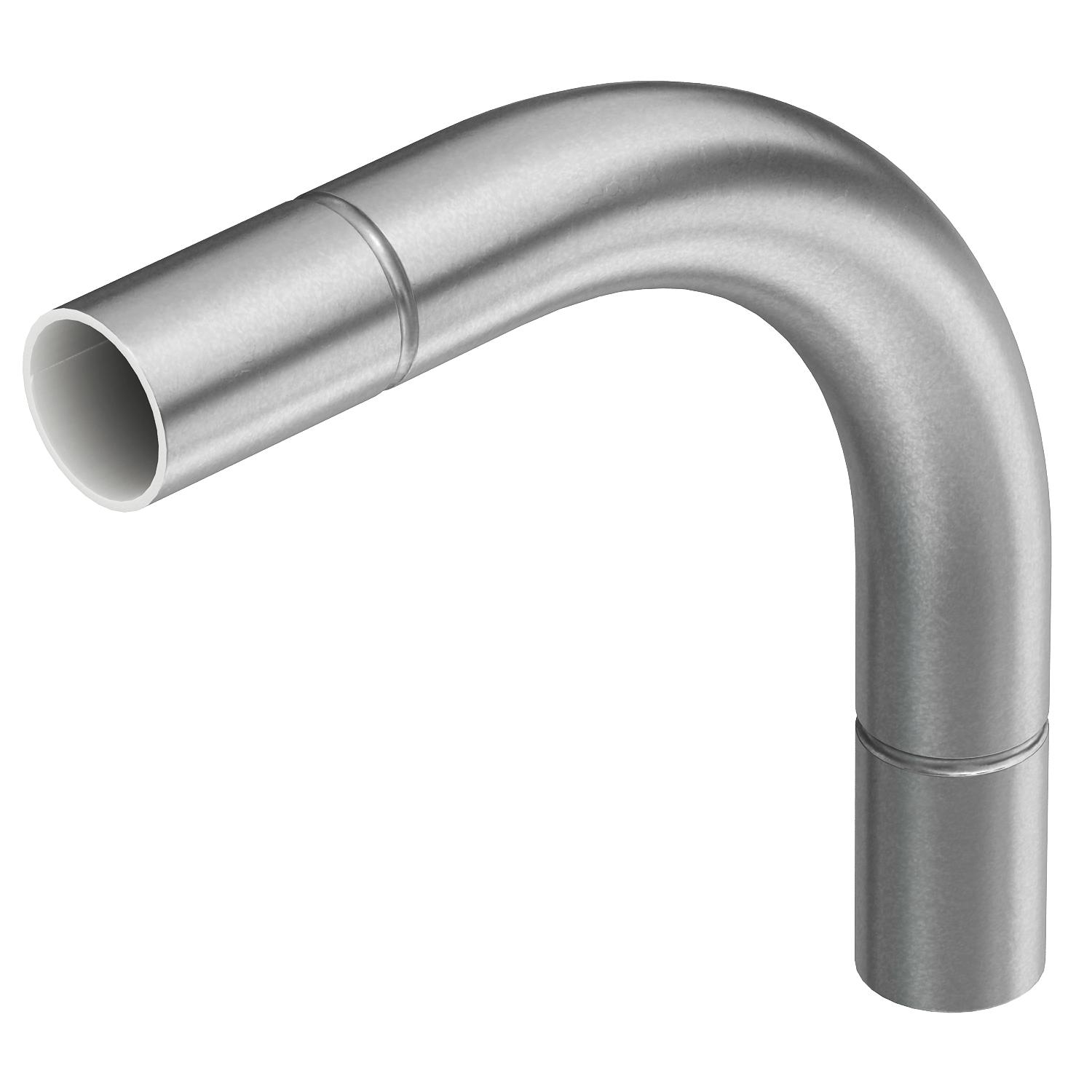

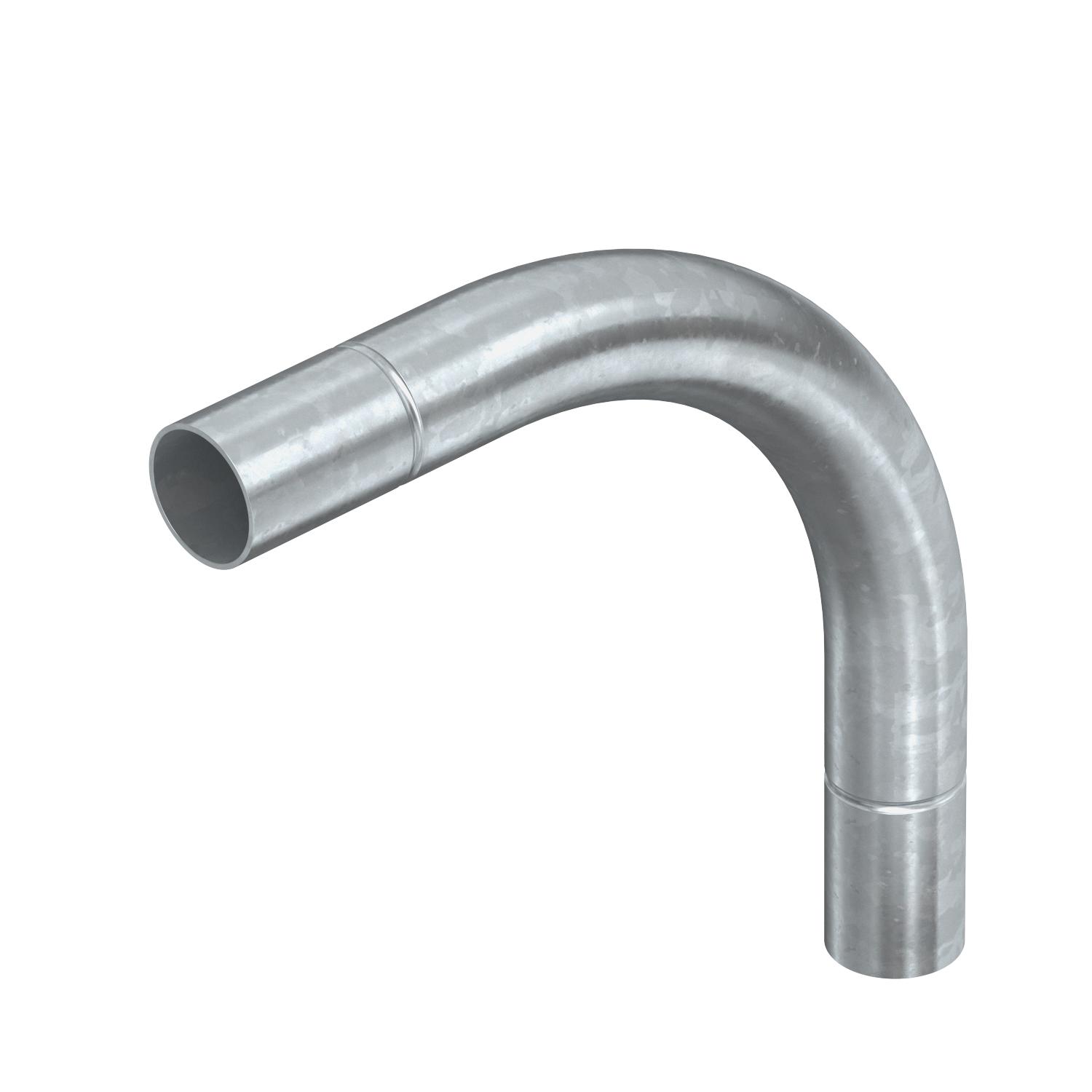

Hot-dip galvanised steel bend, without thread
Item no. 2046818 | EAN 4012196387991
- Product description
-
Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

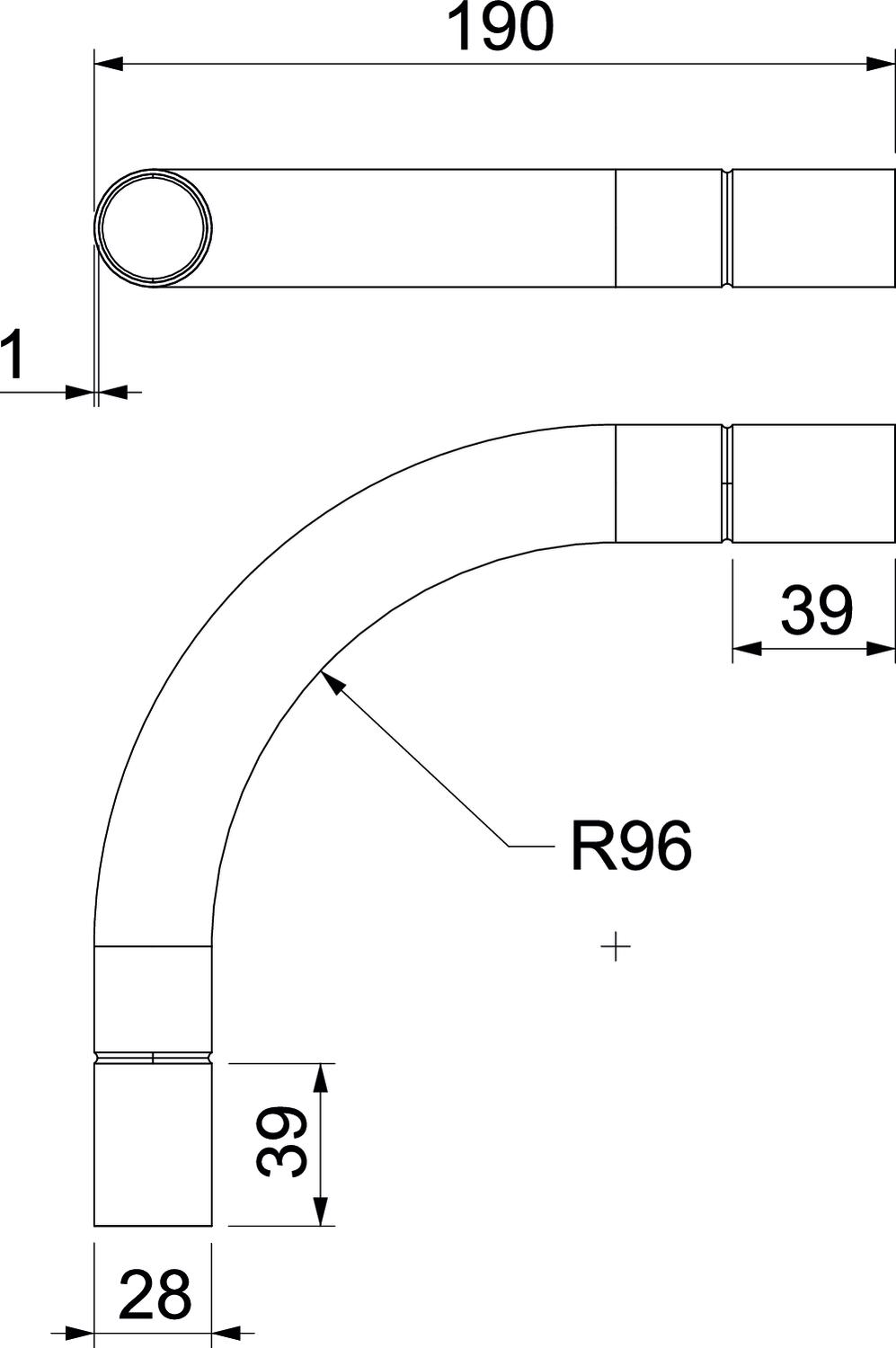

Angle of the bend 90 ° Brushed surface no Dimension Ø25mm Dimension A 66,5 mm Dimension B 191 mm Dimension d 25,5 mm Dimension D 28 mm Dimension l 40 mm Dimension m (mm) M25 Dimension R 110 mm Dimension t 1,2 mm Flexible no For nominal pipe diameter 25 mm Halogen-free no Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Hot-dip galvanised Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN25 FT / 2046818 , 0.19MB , pdfEU declaration of conformity SBN25 FT / 2046818 , 0.15MB , pdfUK Declaration of Conformity SBN25 FT / 2046818 , 0.14MB , pdfREACH Declaration of conformity SBN25 FT / 2046818 , 0.12MB , pdfRoHS Declaration of conformity SBN25 FT / 2046818 , 0.12MB , pdf
