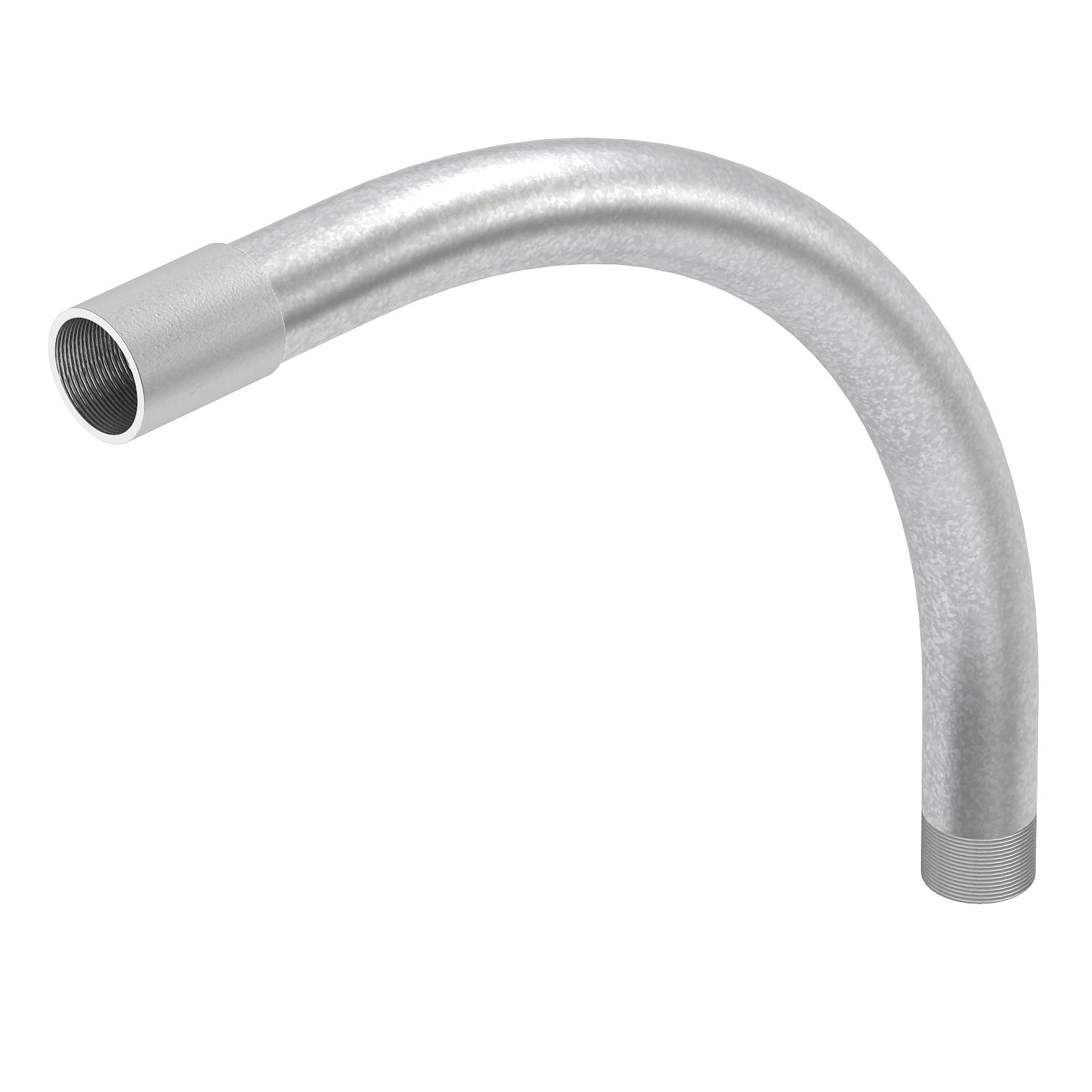

Hot-dip galvanised steel bend, with thread
Item no. 2046790 | EAN 4012196387649
- Product description
-
Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

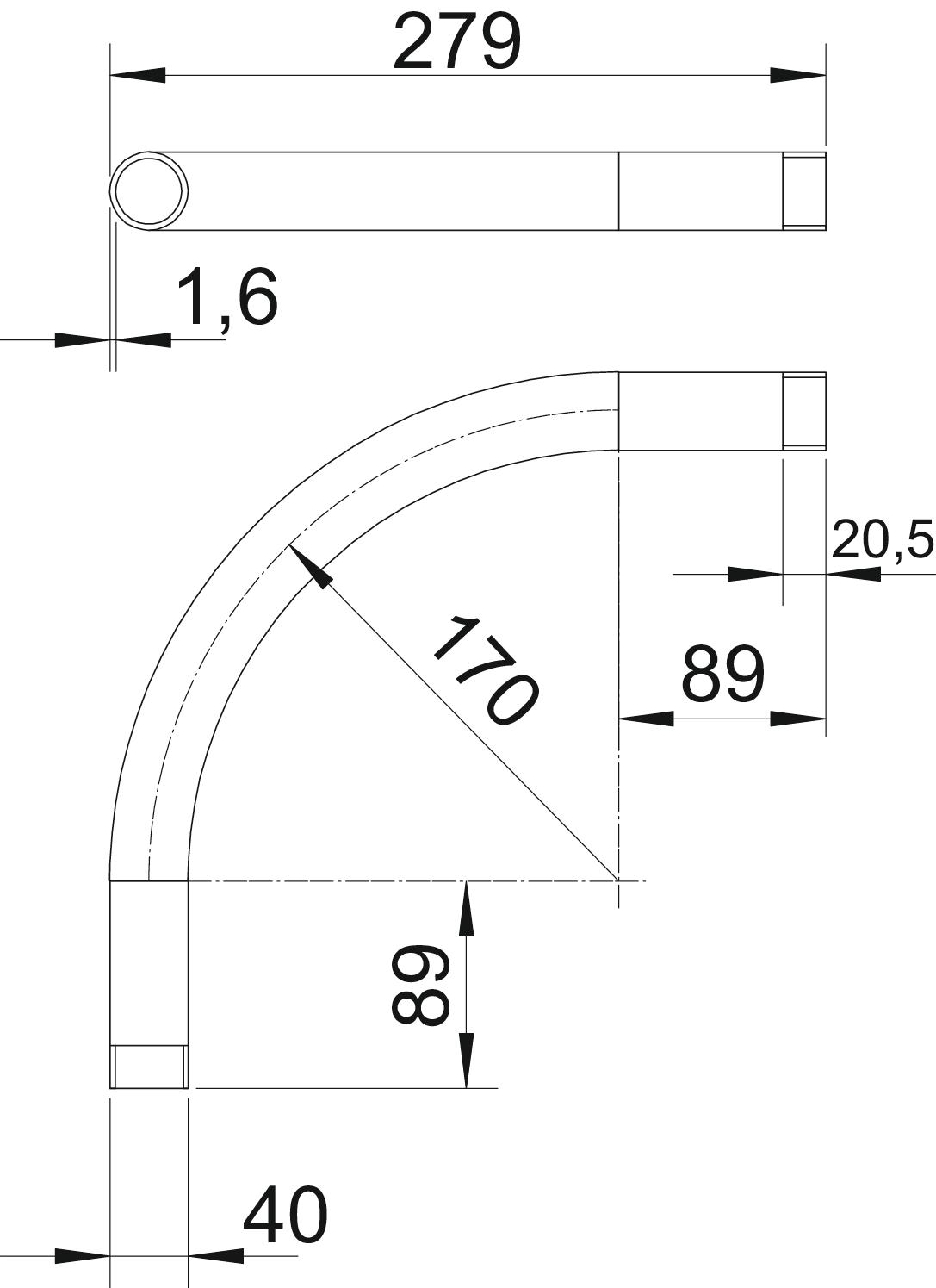

Angle of the bend 90 ° Brushed surface no Dimension M40x1,5 Dimension A 89 mm Dimension B 279 mm Dimension D 40 mm Dimension l 20,5 mm Dimension m (mm) M40 Dimension R 170 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 40 mm Halogen-free no Material Steel Polished surface no Surface Hot-dip galvanised Thread M40x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM40 FT / 2046790 , 0.22MB , pdfUK Declaration of Conformity SBNM40 FT / 2046790 , 0.14MB , pdfREACH Declaration of conformity SBNM40 FT / 2046790 , 0.12MB , pdfRoHS Declaration of conformity SBNM40 FT / 2046790 , 0.12MB , pdf
