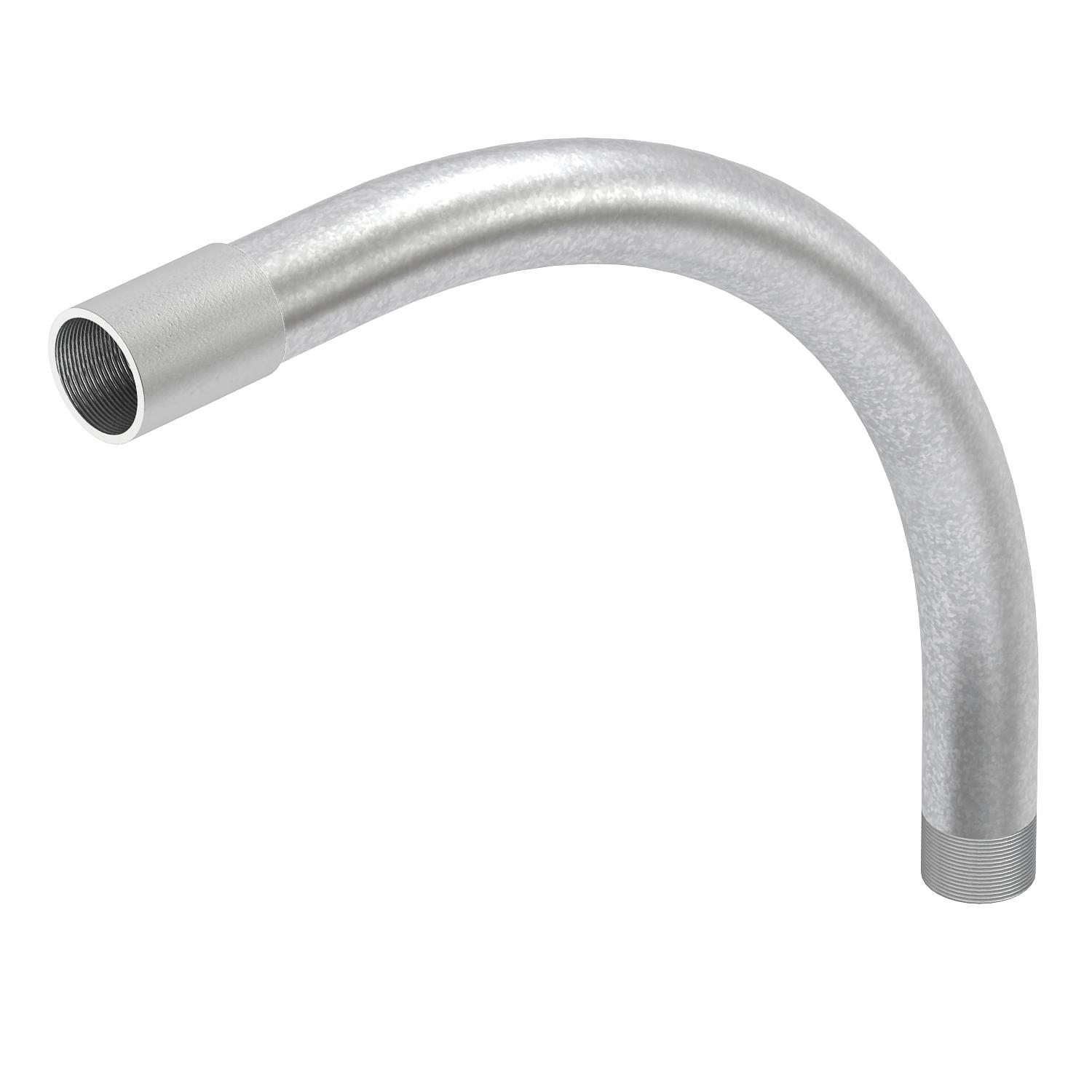

Hot-dip galvanised steel bend, with thread
Item no. 2046786 | EAN 4012196387588
- Product description
-
Product description
90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Brushed surface no Dimension M16x1,5 Flexible no For nominal pipe diameter 16 mm Halogen-free no Material Steel Polished surface no Surface Hot-dip galvanised Thread M16x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes Dimensions

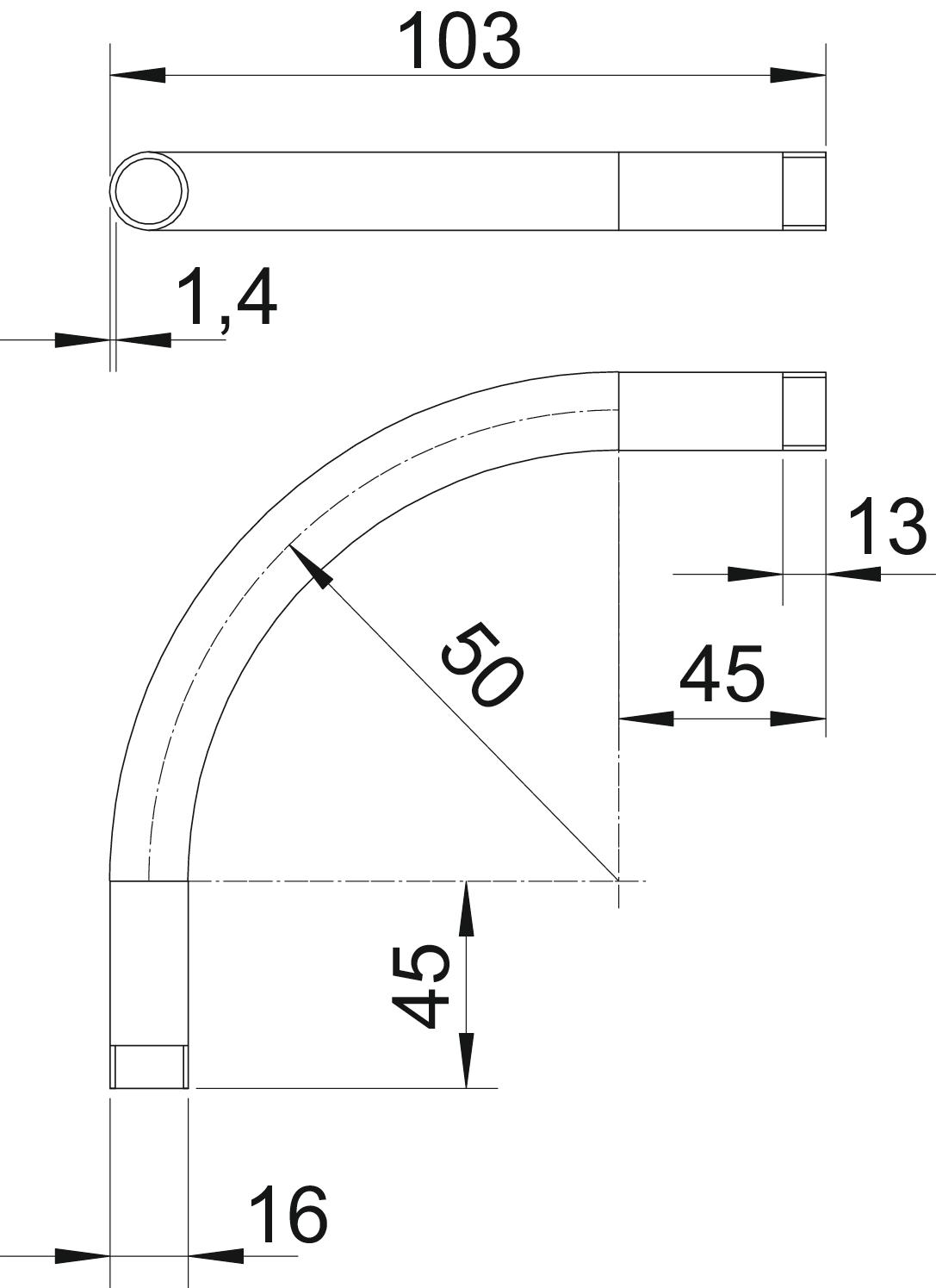

Dimension A 45 mm Dimension B 103 mm Dimension D 16 mm Dimension l 13 mm Dimension m (mm) M16 Dimension R 50 mm Dimension t 1,4 mm - All types
