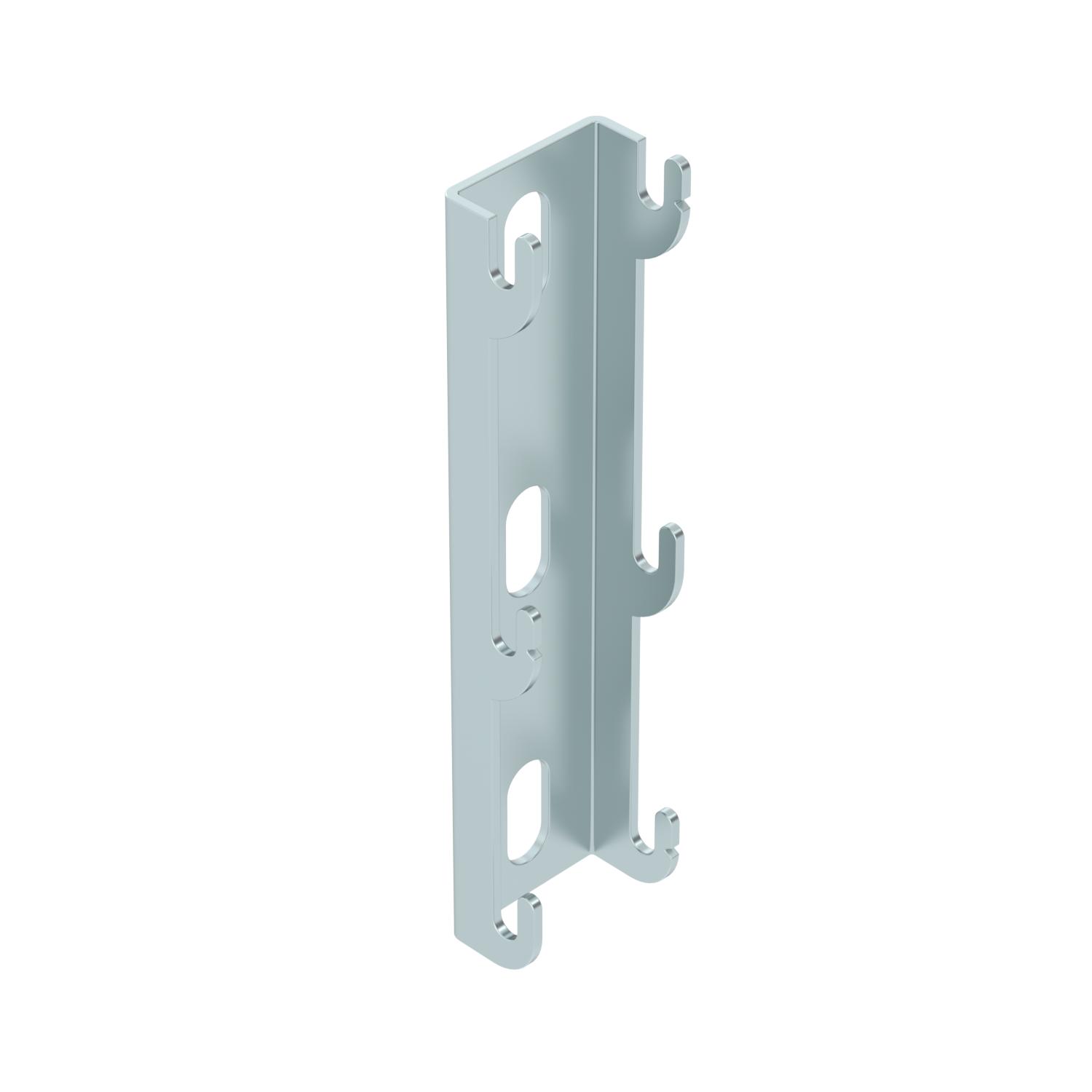

Hook rail for G mesh cable tray FS
Item no. 6005612 | EAN 4012195815822
- Product description
-
Product description
Hook rail for wall mounting of G mesh cable trays
-
- Technical data
-
Technical data

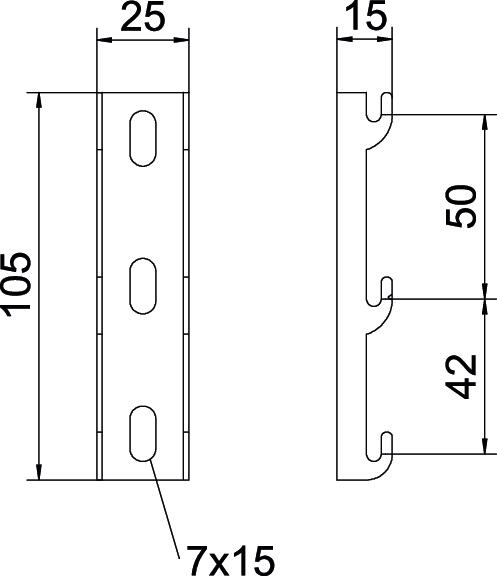

Dimension 105x25x15 Material Steel Profile shape U-shaped Rustproof steel, pickled no Suitable for profile shapes U-shaped Surface Strip galvanized Dimensions
Height 15 mm Length 105 mm Width 0,98 in Width 25 mm - All types
- Downloads
-
Data sheet G-GRM-R125 FS / 6005612 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity G-GRM-R125 FS / 6005612 , 0.17MB , pdfREACH Declaration of conformity G-GRM-R125 FS / 6005612 , 0.12MB , pdfRoHS Declaration of conformity G-GRM-R125 FS / 6005612 , 0.12MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
