Hook-head screw ZL 43 | 21 | 12 | M8x60mm

morepic-1

morepic-2

Hook-head screw ZL

Item no. 1148214 | EAN 4012196489718

Item no. / Types

Length

Width

Height

Thread

Product description

Product description

Hook-head screw for use with MS5030 profile rail

Technical data

Technical data

Dimension	M8x60mm
Height	12 mm
Length	43 mm
Material	Steel
Suitable for mounting rail	yes

Surface	Zinc slat
Thread	M8x60mm
Thread metric	8
Width	21 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS50HB M6x30 ZL	43 mm	21 mm	12 mm	M6x30mm	1148206	piece	50 piece
MS50HB M8x30 ZL	43 mm	21 mm	12 mm	M8x30mm	1148210	piece	50 piece
MS50HB M8x60 ZL	43 mm	21 mm	12 mm	M8x60mm	1148214	piece	25 piece
MS50HB M10x30 ZL	43.3 mm	13 mm	10 mm	M10x30mm	1148218	piece	50 piece
MS50HB M10x60 ZL	43.3 mm	13 mm	10 mm	M10x60mm	1148222	piece	25 piece
MS50HB M12x30 ZL	43.3 mm	13 mm	10 mm	M12x30mm	1148226	piece	50 piece
MS50HB M12x60 ZL	43.3 mm	13 mm	10 mm	M12x60mm	1148230	piece	25 piece

Downloads

Data sheet MS50HB M8x60 ZL / 1148214 , 0.15MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS50HB M8x60 ZL / 1148214 , 0.13MB , pdf

REACH Declaration of conformity MS50HB M8x60 ZL / 1148214 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS50HB M8x60 ZL / 1148214 , 0.12MB , pdf

Download

Product graphic MS50HB M8x60 ZL / 1148214, 27.47 kB, jpg

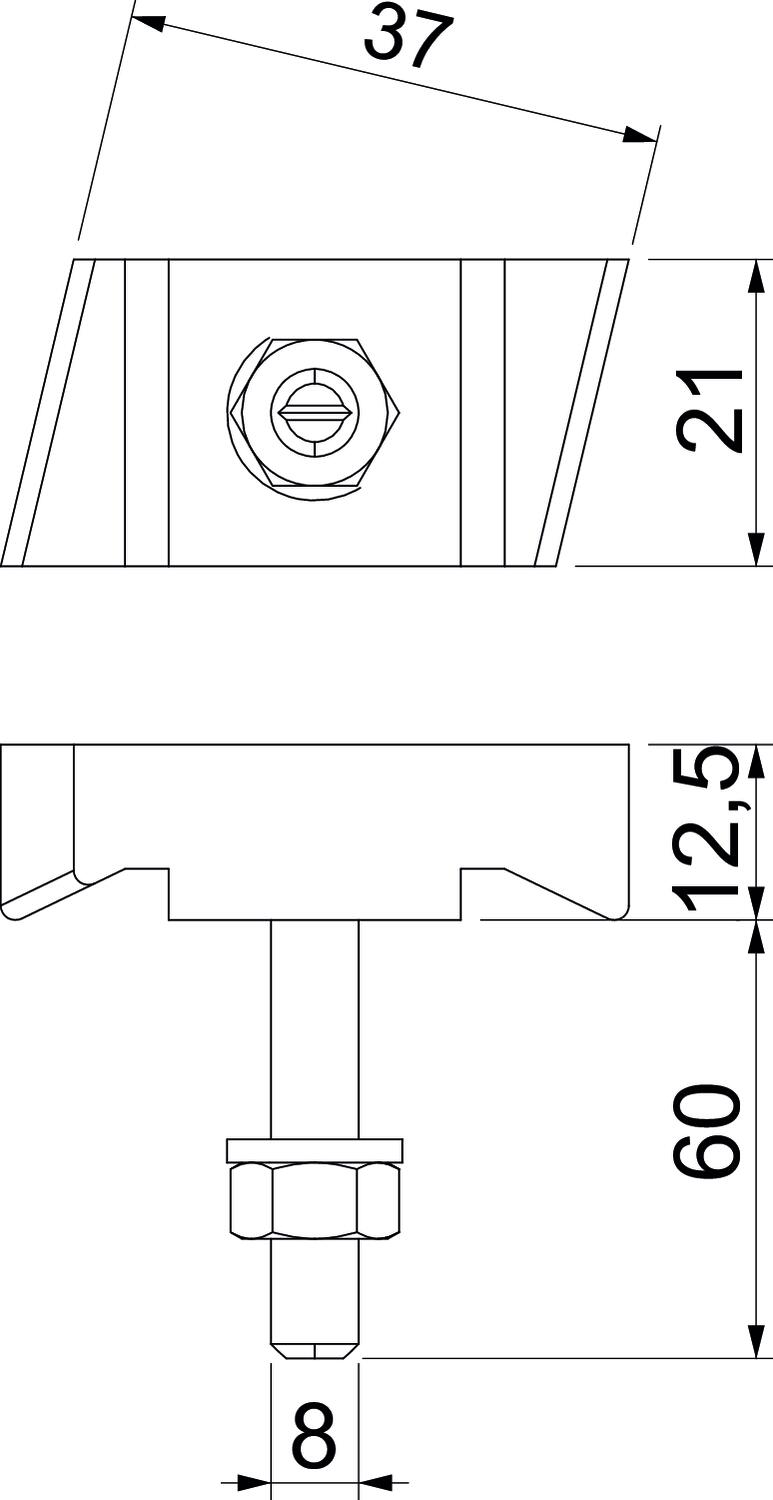

Scale drawing MS50HB M8x60 ZL / 1148214, 55.48 kB, jpg

MS50HB M8x60 ZL / 1148214

1148214_KSTP1.stp, 89.08 kB
