Hook-head screw ZL 35 | 17 | 10 | M6x30mm
morepic-1 morepic-2

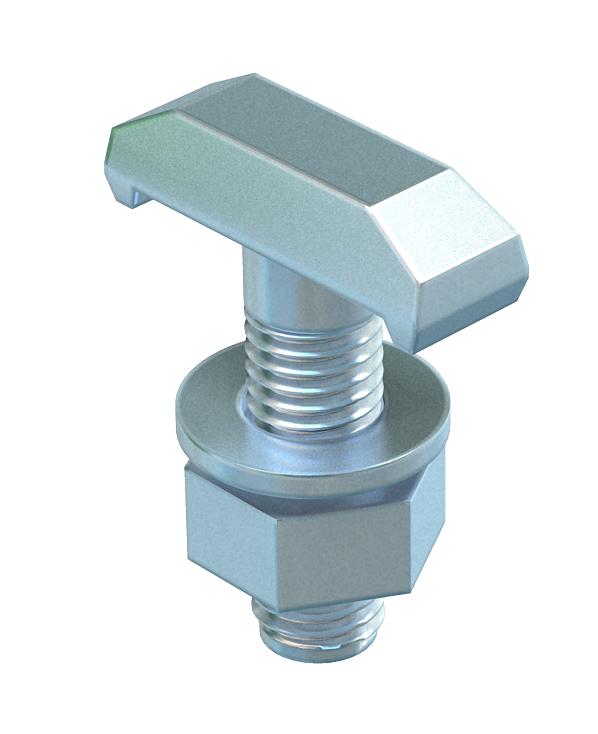

Hook-head screw ZL

Item no. 1148106 | EAN 4012196489473

35 mm
Product description

Product description

Hook-head screw for use with MS4022 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm

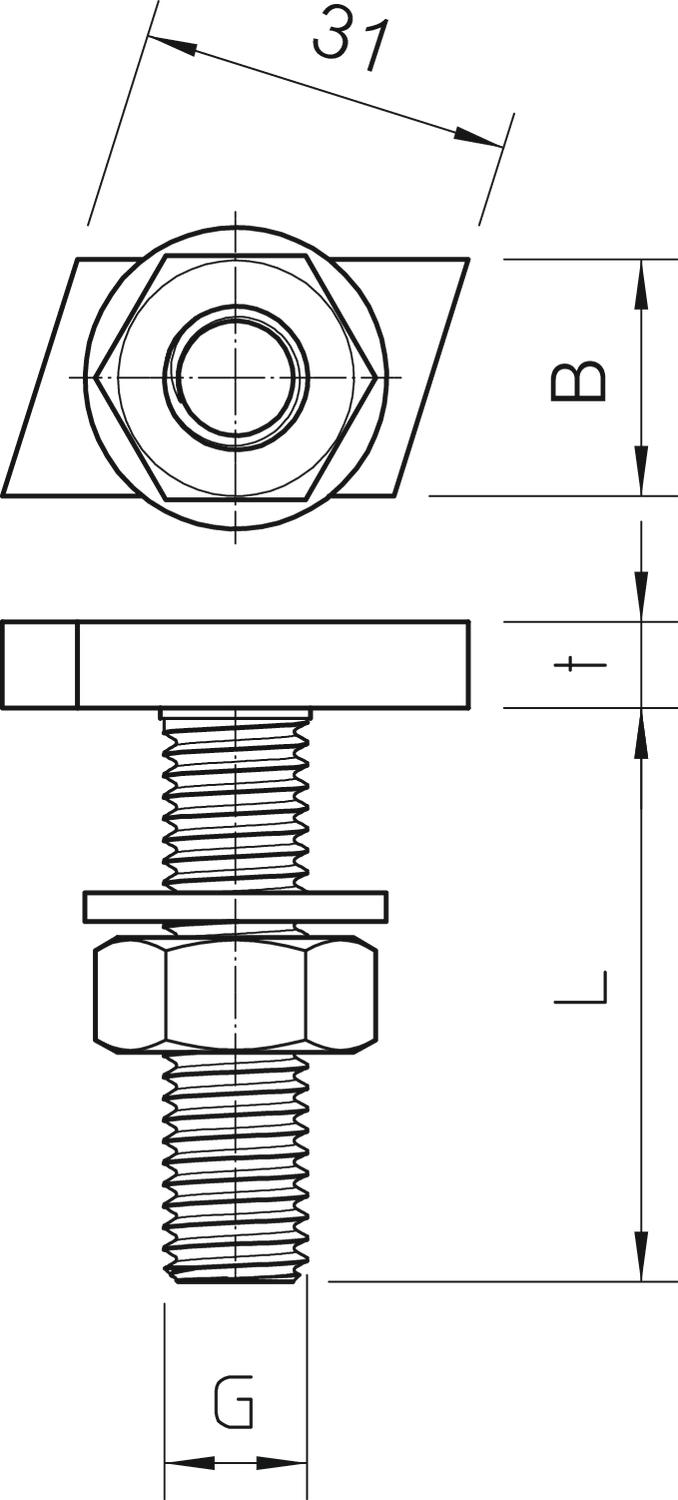

Technical data

Technical data

Dimension M6x30mm
Height 10 mm
Length 35 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M6x30mm
Thread metric 6
Torque 3,3 Nm
Width 17 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS40HB M6x30 ZL 35 mm 17 mm 10 mm M6x30mm 1148106
50 piece
MS40HB M8x30 ZL 35 mm 17 mm 10 mm M8x30mm 1148110
50 piece
MS40HB M8x60 ZL 35 mm 17 mm 10 mm M8x60mm 1148114
25 piece
MS40HB M10x30 ZL 35 mm 14 mm 7.5 mm M10x30mm 1148118
50 piece
MS40HB M10x60 ZL 35 mm 14 mm 7.5 mm M10x60mm 1148122
25 piece
MS40HB M12x30 ZL 35 mm 14 mm 7.5 mm M12x30mm 1148126
50 piece
MS40HB M12x60 ZL 35 mm 14 mm 7.5 mm M12x60mm 1148130
25 piece
