Hook-head screw A4 43.3 | 13 | 10 | M12x60mm

morepic-1

morepic-2

Hook-head screw A4

Item no. 1148280 | EAN 4012196489824

Item no. / Types

Length

Width

Height

Thread

Product description

Product description

Hook-head screw for use with MS5030 profile rail

Technical data

Technical data

Dimension	M12x60mm
Material	Stainless steel
Suitable for mounting rail	yes

Surface	Bright, treated
Thread	M12x60mm
Thread metric	12

Dimensions

Height	10 mm
Length	43,3 mm

Width	13 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS50HB M6x30 A4	43 mm	21 mm	12 mm	M6x30mm	1148256	piece	50 piece
MS50HB M8x30 A4	43 mm	21 mm	12 mm	M8x30mm	1148260	piece	50 piece
MS50HB M8x60 A4	43 mm	21 mm	12 mm	M8x60mm	1148264	piece	25 piece
MS50HB M10x30 A4	43.3 mm	13 mm	10 mm	M10x30mm	1148268	piece	50 piece
MS50HB M10x60 A4	43.3 mm	13 mm	10 mm	M10x60mm	1148272	piece	25 piece
MS50HB M12x30 A4	43.3 mm	13 mm	10 mm	M12x30mm	1148276	piece	50 piece
MS50HB M12x60 A4	43.3 mm	13 mm	10 mm	M12x60mm	1148280	piece	25 piece

Downloads

Data sheet MS50HB M12x60 A4 / 1148280 , 0.23MB , pdf

Brochure Rail systems , 2.10MB , pdf

Brochure Montagesysteme Magic PV Solution , 1.77MB , pdf

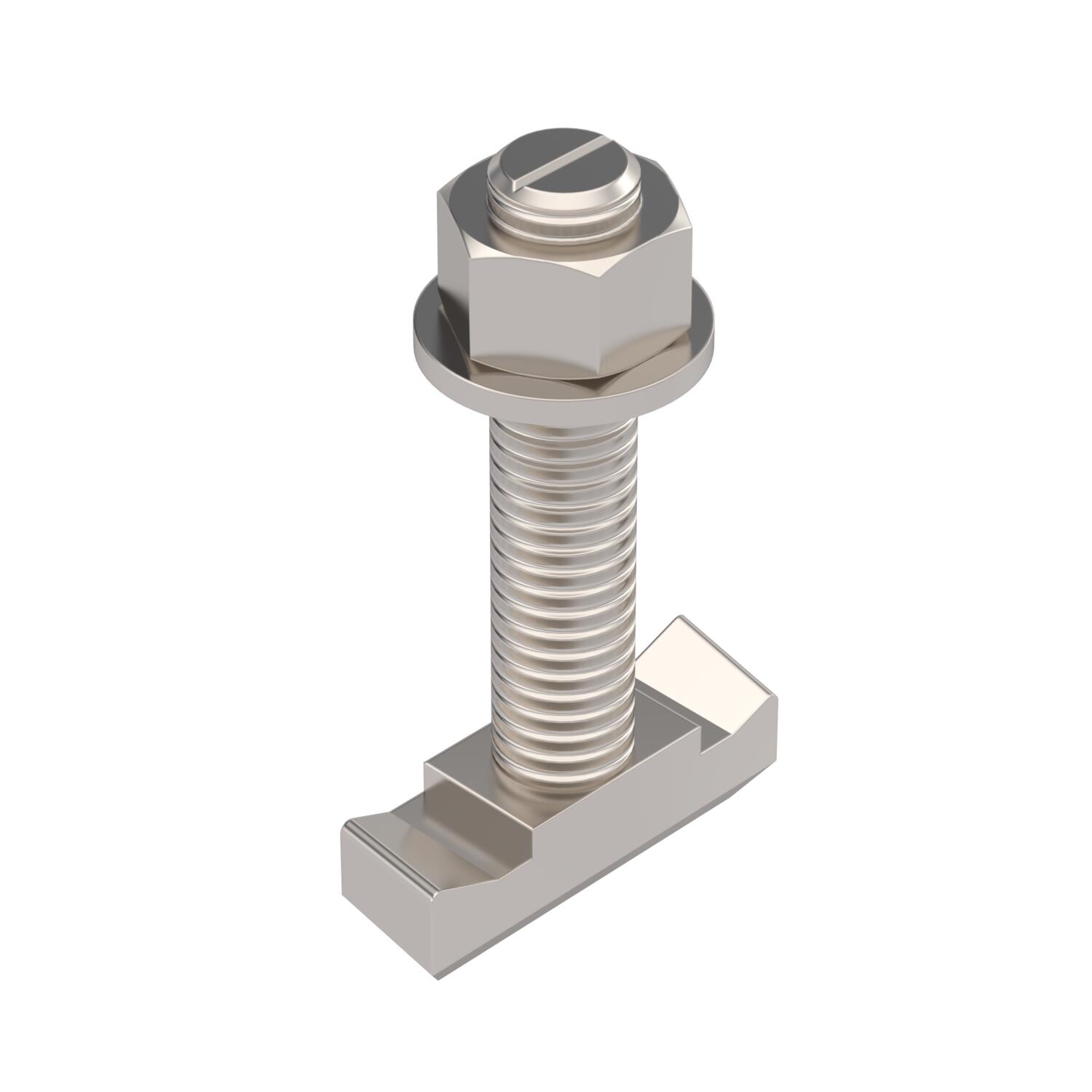

Product graphic MS50HB M12x60 A4 / 1148280, 55.05 kB, jpg

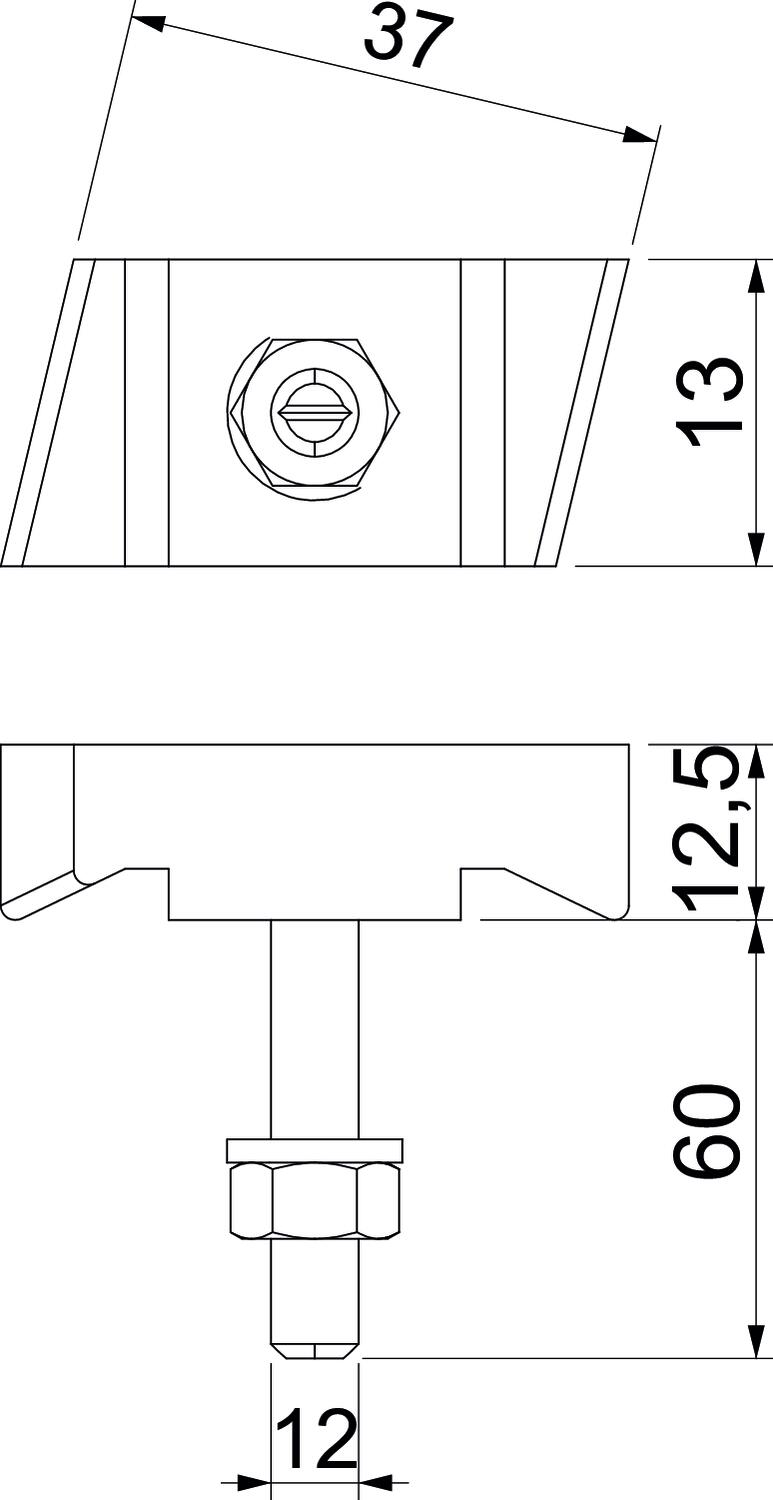

Scale drawing MS50HB M12x60 A4 / 1148280, 55.45 kB, jpg

MS50HB M12x60 A4 / 1148280
