Hook-head screw A4 43.3 | 13 | 10 | M12x30mm
morepic-1 morepic-2

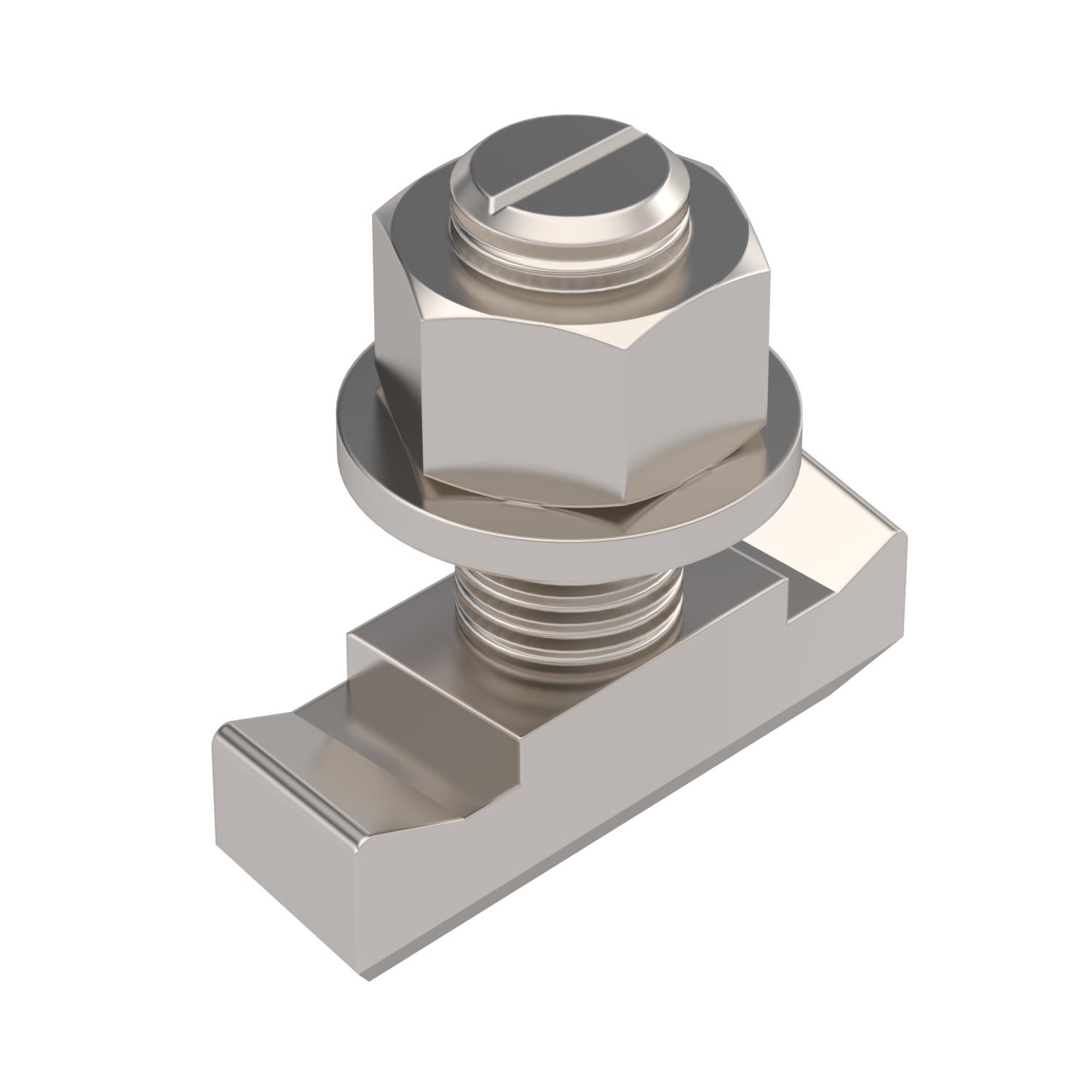

Hook-head screw A4

Item no. 1148276 | EAN 4012196489817

Product description
Product description
Hook-head screw for use with MS5030 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm

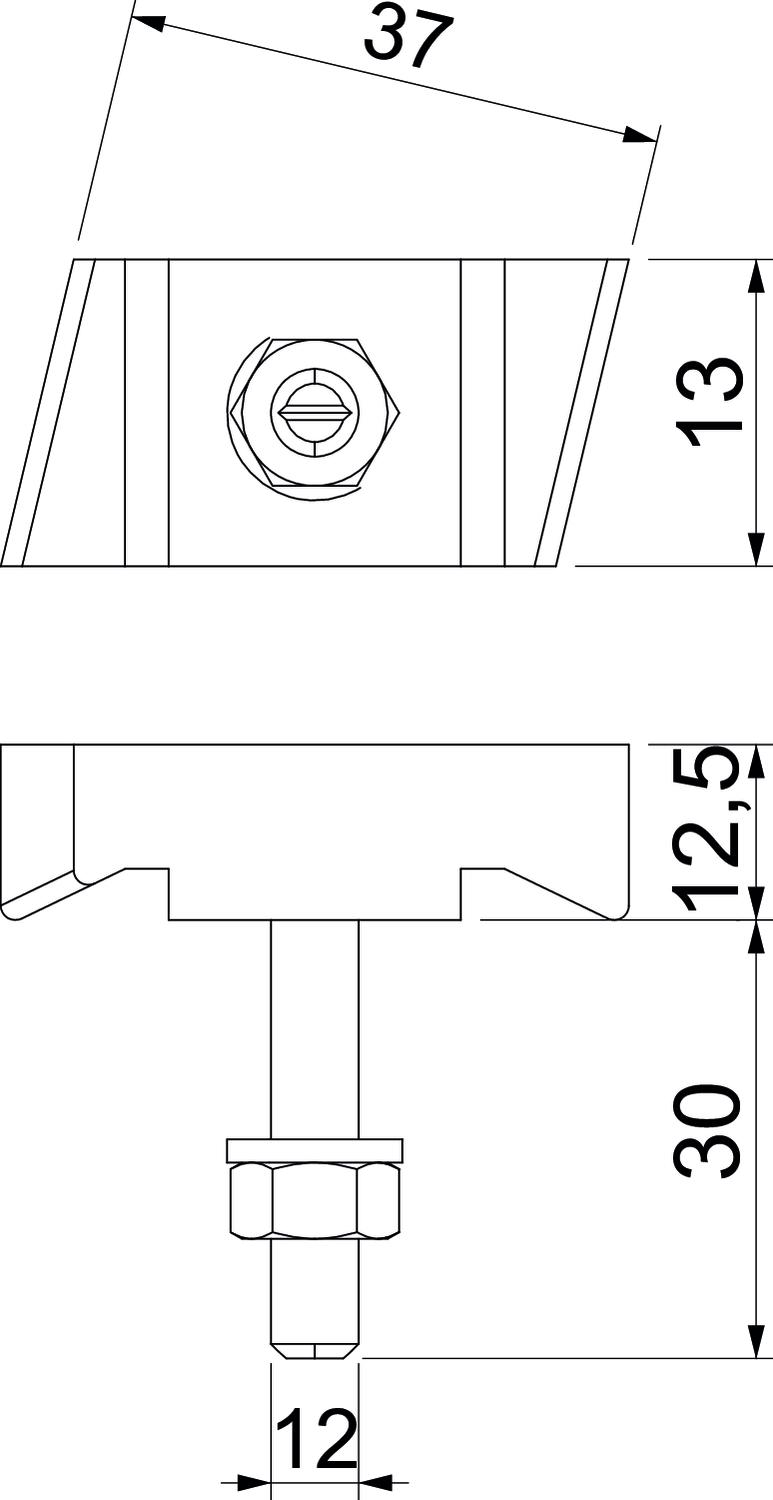

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,433 kg CO₂e / 1 Piece
Dimension M12x30mm
Height 10 mm
Length 43,3 mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M12x30mm
Thread metric 12
Width 13 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS50HB M6x30 A4 43 mm 21 mm 12 mm M6x30mm 1148256
50 piece
MS50HB M8x30 A4 43 mm 21 mm 12 mm M8x30mm 1148260
50 piece
MS50HB M8x60 A4 43 mm 21 mm 12 mm M8x60mm 1148264
25 piece
MS50HB M10x30 A4 43.3 mm 13 mm 10 mm M10x30mm 1148268
50 piece
MS50HB M10x60 A4 43.3 mm 13 mm 10 mm M10x60mm 1148272
25 piece
MS50HB M12x30 A4 43.3 mm 13 mm 10 mm M12x30mm 1148276
50 piece
MS50HB M12x60 A4 43.3 mm 13 mm 10 mm M12x60mm 1148280
25 piece
