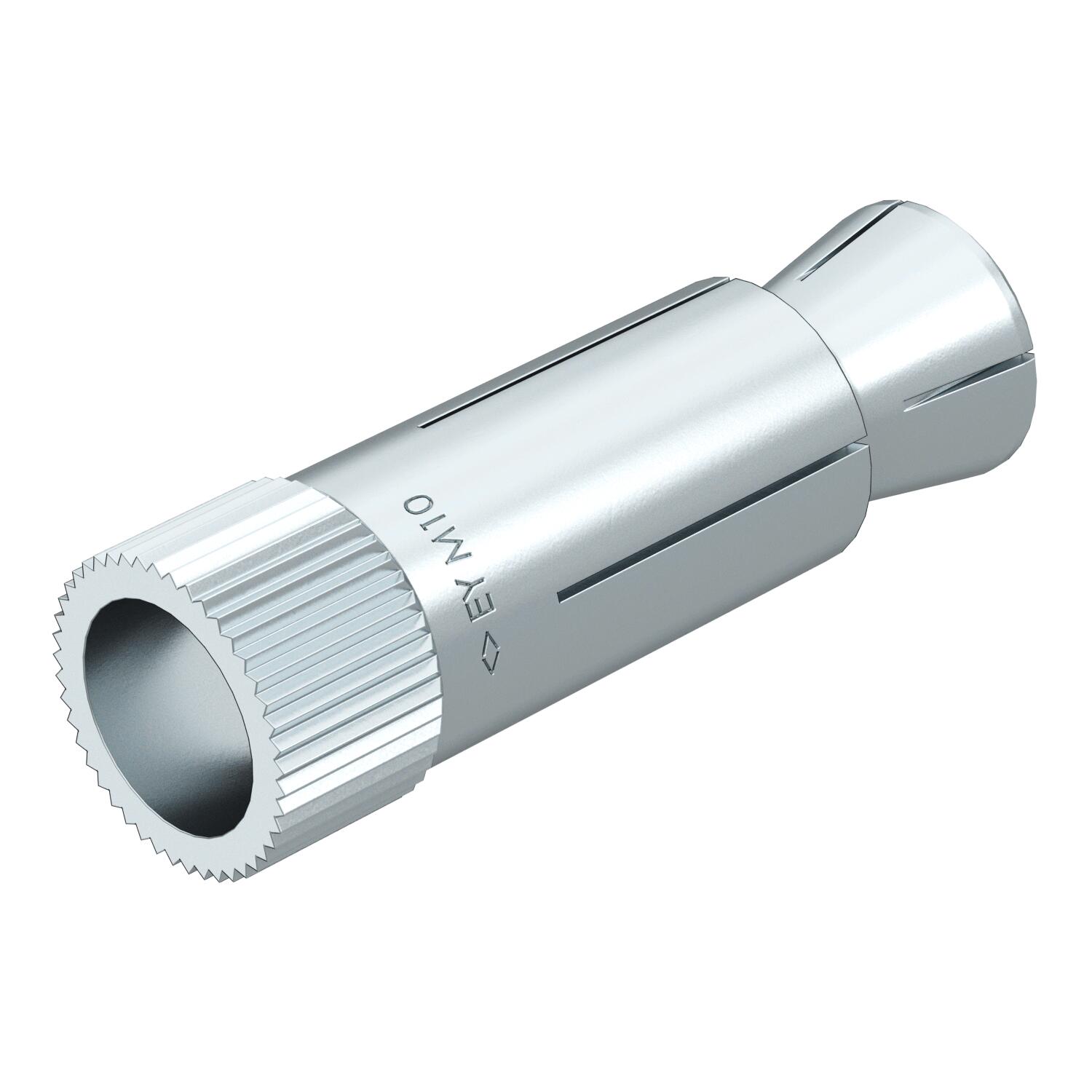

Hollow core anchor Easy

Item no. 3498770 | EAN 4012196412075

Item no. / Types

Length

Drill hole diameter, min.

Thread

Product description

Product description

Hollow core anchor "Easy" for mounting in prestressed hollow concrete slabs. When the screw or the nut is tightened, the cone is released from the anchor sleeve and pulled into it. This makes the anchor expand in the hollow space, thereby creating form lock. The hollow core anchor can also be used when the expansion area is not located in the cavity.

The fastening of the component can be done with standard screws and threaded rods.

Technical data

Technical data

Dimension	M8
Drill hole depth	55 mm
Drill hole diameter, min.	12 mm
Material	Steel
Surface	Electrogalvanized

Thread	M8
Thread metric	8
With bolts	no
With thread	yes

Dimensions

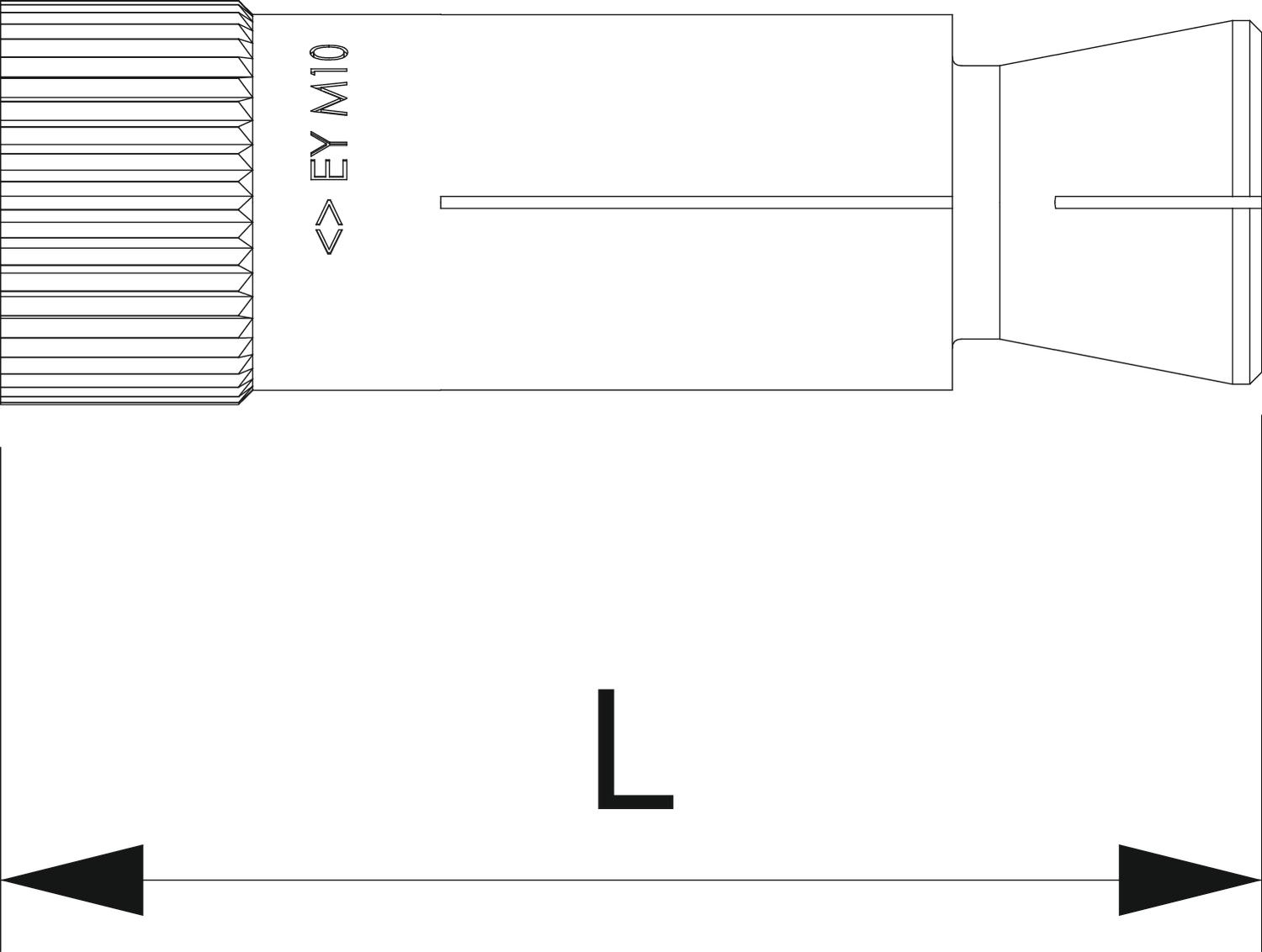

Dimension L	44 mm

Length	44 mm

All types

All types

Types	Length	Drill hole diameter, min.	Thread	Item no.	Quantity	SSU
Easy M6	40 mm	10 mm	M6	3498768	piece	50 piece
Easy M8	44 mm	12 mm	M8	3498770	piece	25 piece
Easy M10	53 mm	16 mm	M10	3498774	piece	25 piece
Easy M12	58 mm	18 mm	M12	3498776	piece	25 piece
