- Product description
-

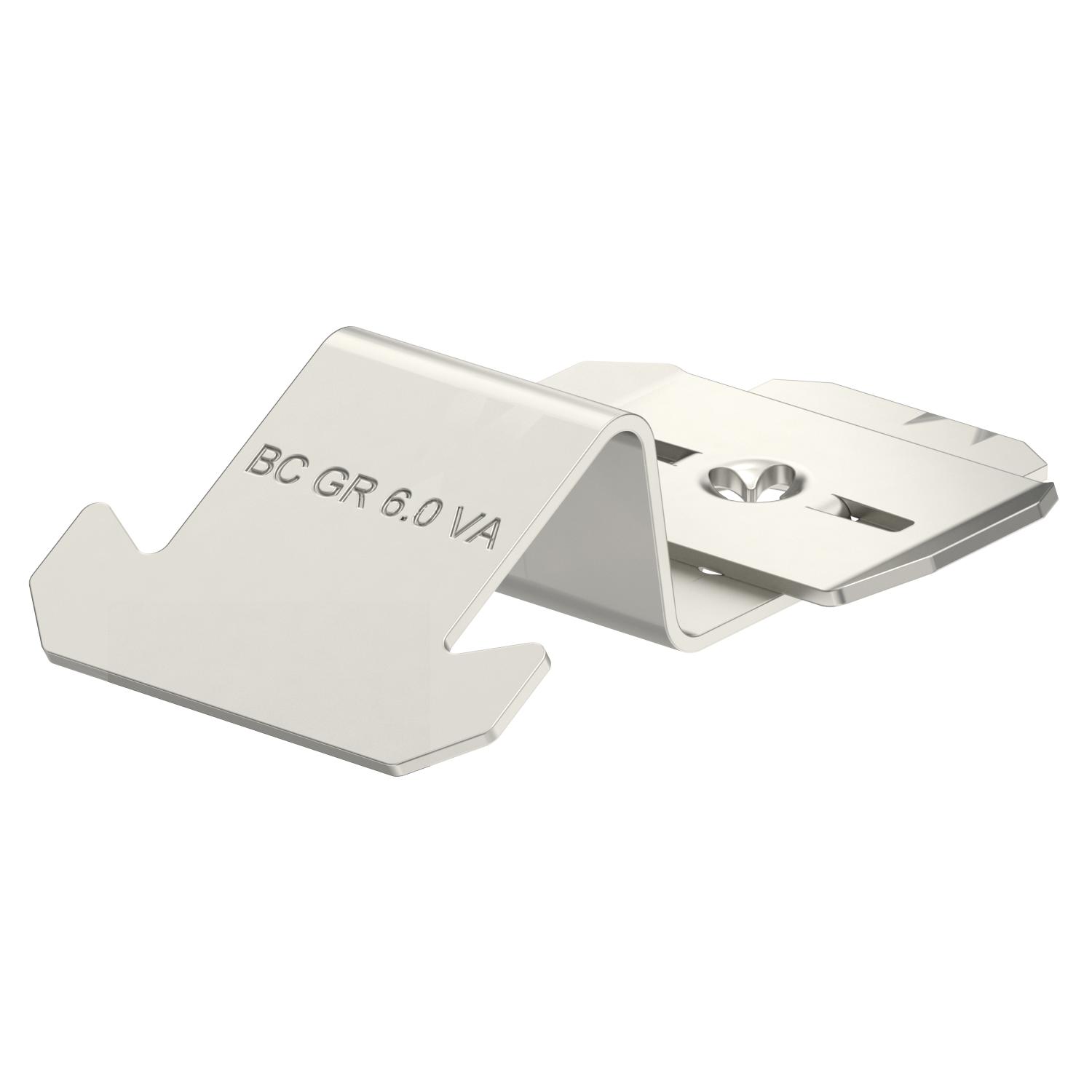

Product descriptionHold-down clip for the screwless mounting of mesh cable trays onto MS profile rails with a slot width of 22 mm.
- Technical data
-
Technical data

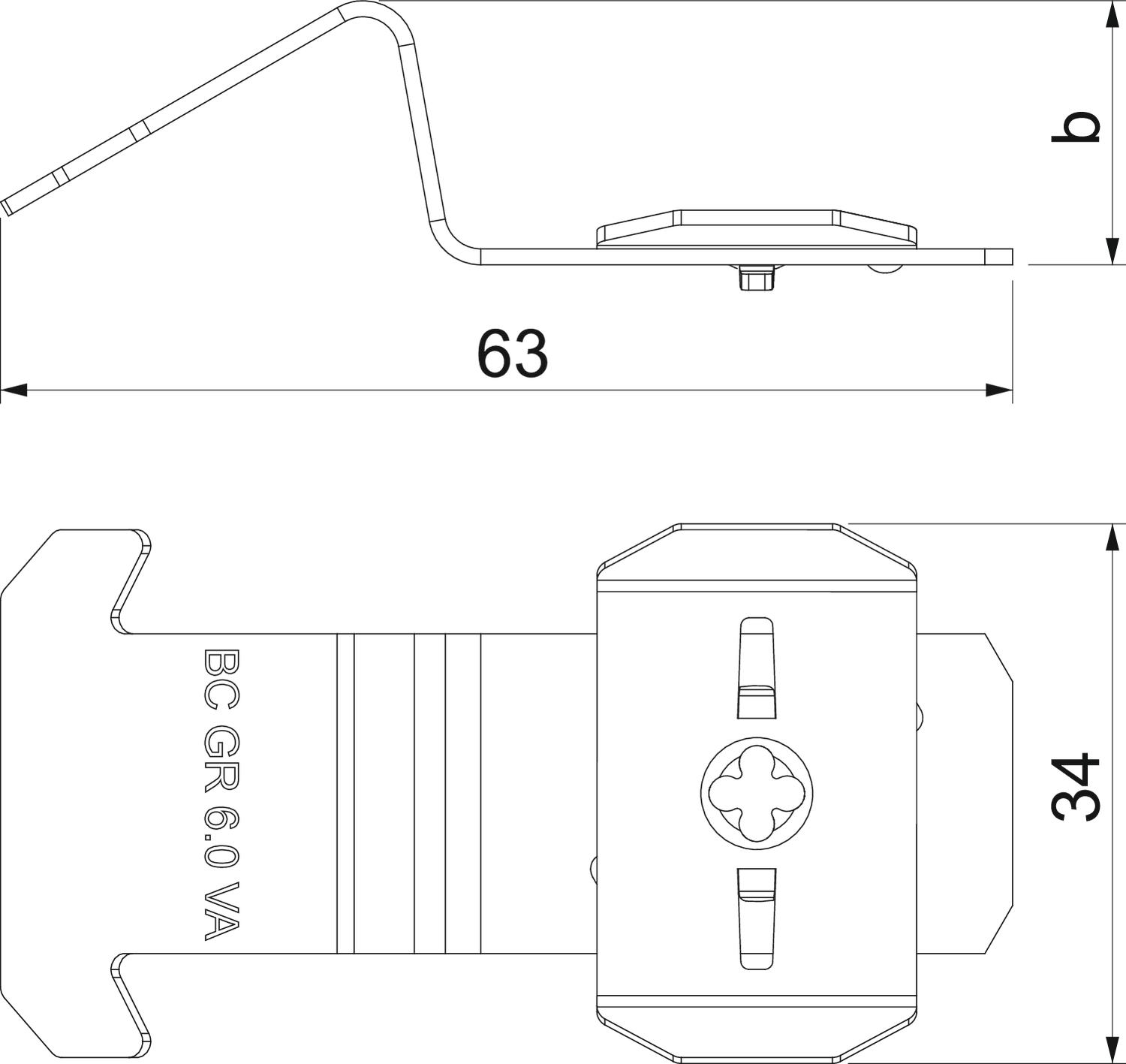

Colour stainless steel Dimension 82x33x17 Dimension b 19 mm Material Stainless steel Rustproof steel, pickled no Suitable for profile shapes C profile Surface Bright, treated Version for For wire Ø 6.0 mm With screw accessories no - All types
- Downloads
-
Data sheet BC SGR A2 / 6016668 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BC SGR A2 / 6016668 , 0.10MB , pdfREACH Declaration of conformity BC SGR A2 / 6016668 , 0.12MB , pdfRoHS Declaration of conformity BC SGR A2 / 6016668 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
